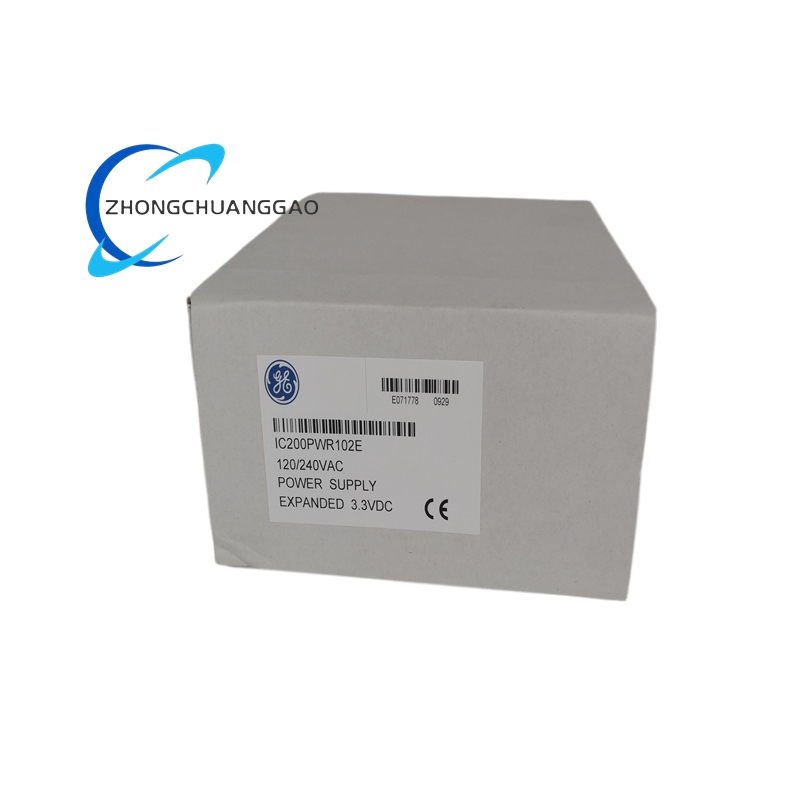

GE IC200PWR102B VersaMax Expanded Power Supply Module

The GE IC200PWR102B is an expanded power supply module from the GE Fanuc VersaMax series, a modular and scalable Programmable Logic Controller (PLC) platform. Its primary function is to convert incoming AC line power into a stable, regulated DC voltage to energize the components connected to the PLC backplane, such as the central processing unit (CPU), network interface units (NIUs), and various input/output (I/O) modules. This module is engineered to serve as either the main power source for a VersaMax system or as a supplementary power supply when used with a power supply booster carrier, providing flexibility for systems with higher power demands .

Category:
Description

Technical Specifications

  • Input Voltage Options: Supports dual nominal input voltages, selectable via a jumper. With the jumper installed, the range is 85 to 132 VAC (120 VAC nominal). With the jumper removed, the range is 176 to 264 VAC (240 VAC nominal) .

  • Input Frequency: 47 to 63 Hz .

  • Input Power: 27 Volt-Amperes .

  • Output Voltages: Supplies +5 VDC and +3.3 VDC to the backplane .

  • Output Current: A combined maximum output of 1.5 Amperes. The 3.3 VDC output can supply up to 1.0 A, and the 5 VDC output can supply up to 1.5 A, with the constraint that the total current for both does not exceed 1.5 A .

  • Hold-Up Time: Rated at 20 milliseconds .

  • Protection Features: Equipped with built-in safeguards against short circuits and overloads .

  • Operating Temperature: -20°C to +60°C .

  • Protection Rating: IP20 .

Key Functional Features

  • Expanded Power Capacity: Classified as an “expanded” power supply, it delivers sufficient power to support larger and more complex I/O configurations compared to standard models .

  • Versatile Power Role: Functions effectively as both a main power supply for a PLC rack and as a supplementary power source when additional capacity is needed. This is achieved through connectivity with a power supply booster carrier .

  • Flexible Input Voltage: The jumper-selectable 120/240 VAC input allows the same module to be used in regions with different line voltages, simplifying global deployment and inventory management .

  • Robust Protection: Factory-integrated protection against short circuits and overloads safeguards the power supply and the expensive control modules it energizes, preventing damage from field wiring faults .

  • Industrial Hardening: Designed for the rigors of an industrial environment, the module operates reliably within a -20°C to +60°C temperature range and carries an IP20 ingress protection rating against solid objects .

Application Scenarios

  • Factory Automation and Machine Control: Provides reliable backplane power for VersaMax PLCs controlling automated assembly lines, packaging machinery, and material handling systems .

  • Process Control: Powers control systems in water and wastewater treatment facilities, chemical processing plants, and other continuous process industries where I/O counts can be extensive .

  • Discrete Manufacturing: Supplies power in manufacturing environments for tasks such as controlling CNC machines, robotics, and conveyor systems .

  • Control System Expansion: Used extensively when upgrading or expanding an existing VersaMax system, as its expanded power capacity allows the addition of more I/O modules without requiring a complete power supply replacement .
