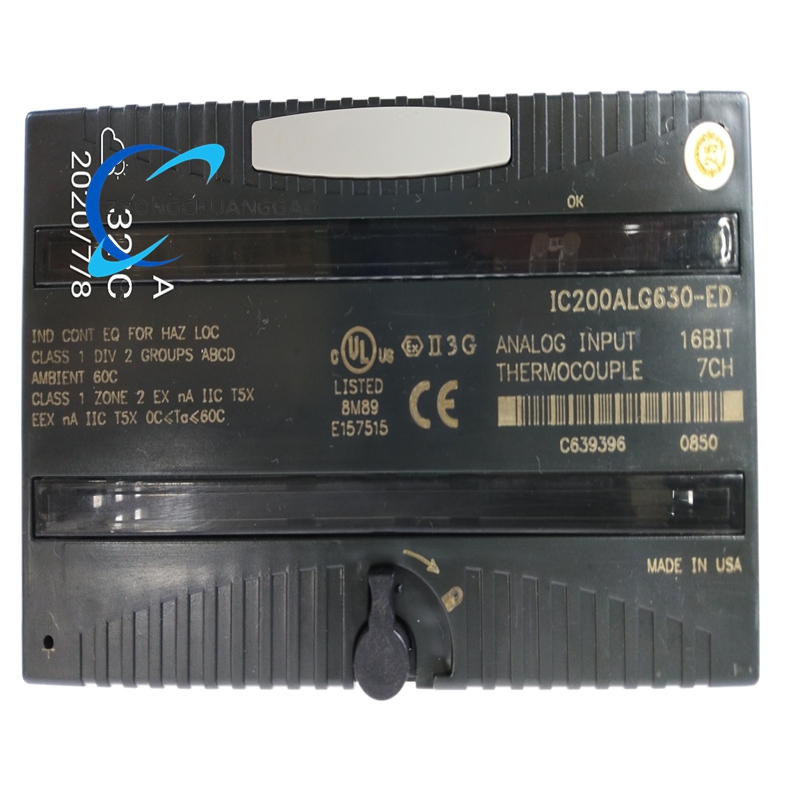

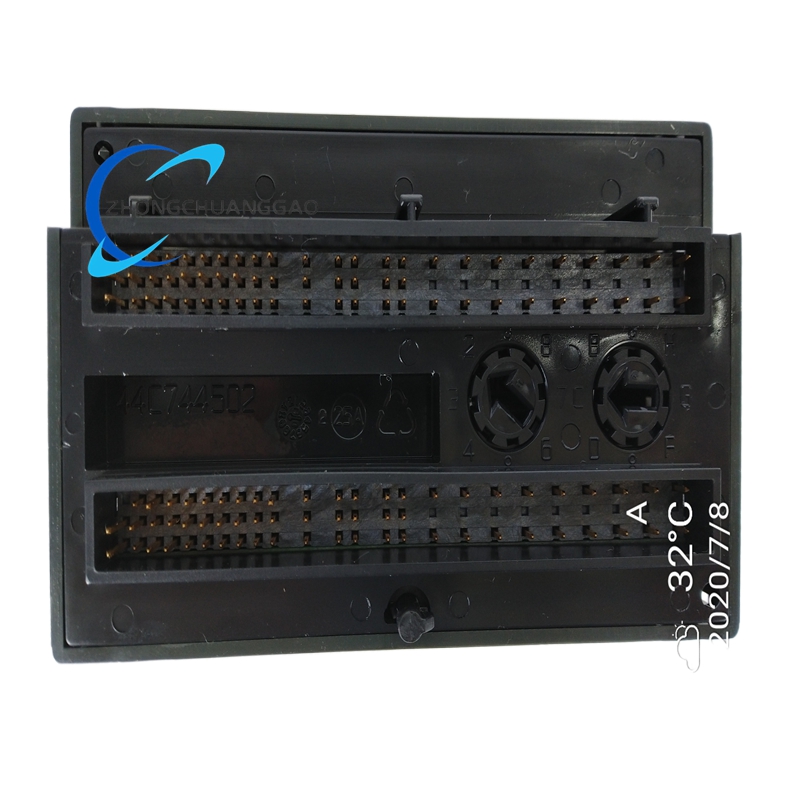

GE IC200ALG630 7-Channel Thermocouple/Millivolt Input Module

Technical Specifications
Module Type: Analog Input Module
Compatible System: GE VersaMax I/O
Number of Input Channels: 7
Input Signal Types: Thermocouple, Millivolt
Supported Thermocouple Types: J, K, T, S, and R
Millivolt Signal Ranges: +/-19.5mV, +/-39mV, +/-78.125mV, +/-156.25mV, +/-312.5mV, +/-625mV
Digital Resolution: 16-bit (15 bits plus sign)
Update Rate: Approximately 60 ms at 60 Hz / 70 ms at 50 Hz
Accuracy at 25°C: +/-0.2% on voltage measurement; +/-0.15% on thermocouple temperature measurement
Common Mode Rejection: >100 dB
Backplane Power Consumption: 125 mA maximum at 5V DC; 125 mA maximum at 3.3V DC
Isolation: Optical isolation; 250V AC continuous / 1500V AC for 1 minute to frame ground
Status Indicators: OK LED (Green for power present, Amber for module fault)
Operating Temperature: 0°C to 60°C

Key Features
High-Density Multi-Channel Input: Provides seven independent input channels in a compact VersaMax form factor for comprehensive temperature monitoring .
Versatile Input Compatibility: Supports J, K, T, S, R thermocouple types and a range of millivolt signals, covering diverse industrial temperature measurement needs .
High-Accuracy Conversion: 16-bit resolution with individual A/D converters per channel ensures precise analog-to-digital signal conversion .
Flexible Cold Junction Compensation: Features four CJC modes — local, remote, fixed, or no compensation — for accurate temperature readings .
Automatic Calibration: Performs A/D calibration on startup and repeats it periodically to compensate for ambient temperature drift .
Comprehensive Diagnostics: Detects and reports open thermocouple, over-range, under-range, high/low alarm, and thermistor fault conditions .
Compact Design: Space-saving module that reduces panel footprint and installation costs .

Application Scenarios
Process Control: Monitoring and controlling temperatures in chemical, oil, and gas production environments .
Furnace and Oven Operations: Precision temperature measurement for industrial furnaces, kilns, and heat-treating equipment.
Power Generation: Temperature monitoring for turbine components, generator windings, and balance-of-plant systems.
Food and Beverage Processing: Temperature-critical processes such as pasteurization, cooking, and cold storage.
HVAC and Building Automation: Integrating temperature sensors for large-scale environmental control systems.
General Industrial Automation: Replacing expensive field temperature transmitters with direct thermocouple connections to reduce control system costs .
