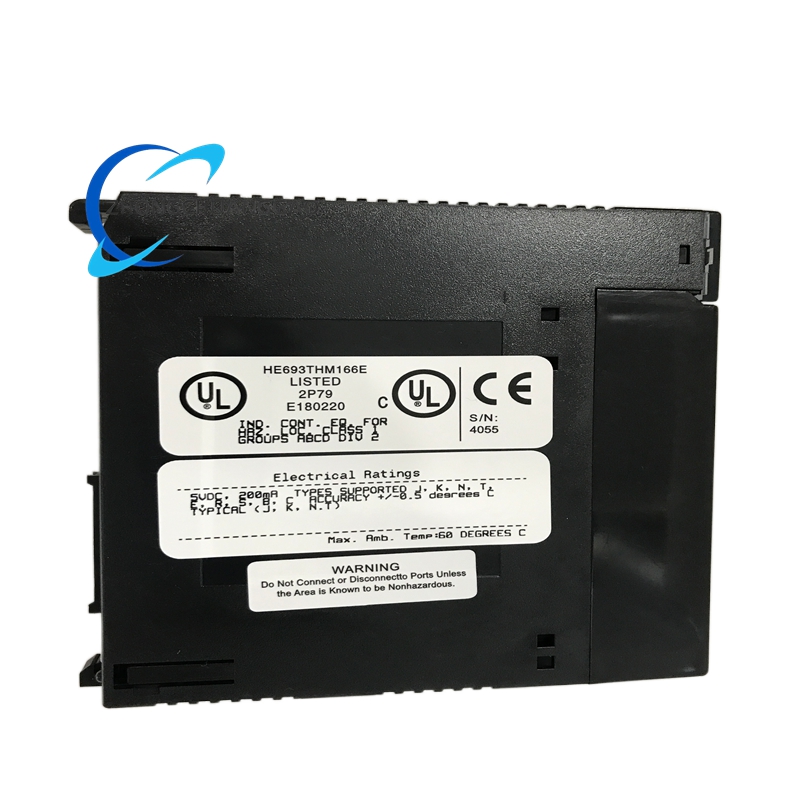

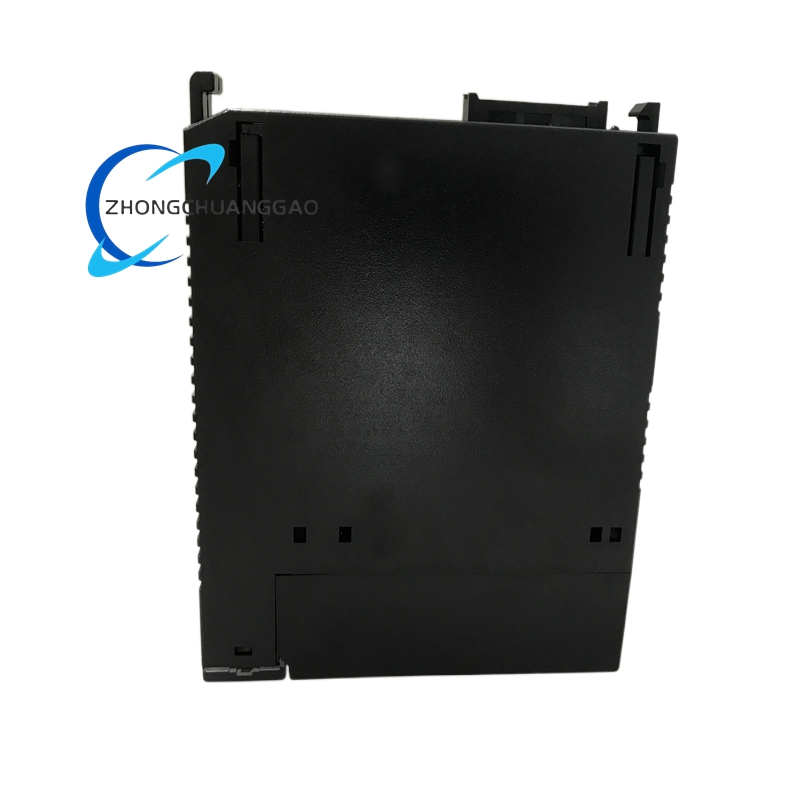

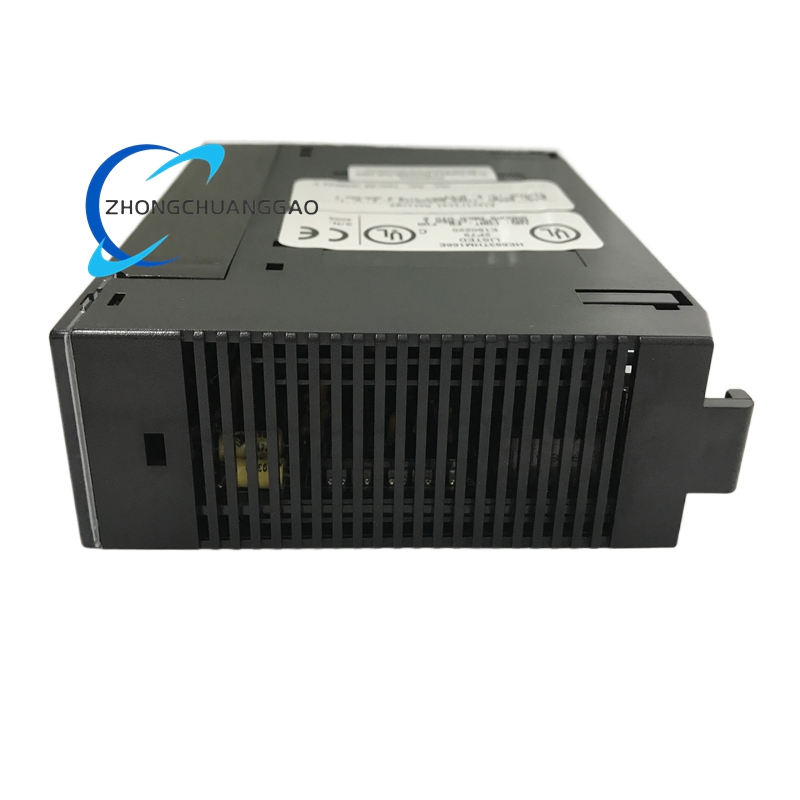

GE HE693THM166 High-Density Thermocouple Input Module

Technical Specifications

• Manufacturer: Horner Electric / GE Fanuc

• Product Type: High-Density Thermocouple Input Module

• Series: Series 90-30

• Number of Channels: 16 analog input channels

• Power Consumption: 100mA at 5VDC

• Thermocouple Types Supported: J, K, N, T, E, R, S, B, C, X (direct connection)

• Resolution: 0.5°C or 0.5°F

• Accuracy (typical): +/- 0.5°C (for types J, K, N, T)

• I/O Points Required: 16 %AI and 16 %I

• Input Impedance: 20 Megohms

• Maximum Safe Overload: +/- 35V

• Common Mode Range: +/- 12V

• Common Mode Rejection: Greater than 100dB

• A/D Conversion Type: Integrating

• A/D Conversion Speed: 40 channels per second

• Operating Temperature: 0 to 60°C (32 to 140°F)

• Relative Humidity: 5% to 95% non-condensing

• Weight: 0.6 kg

Functional Features

• 16-Channel High-Density Design: Offers superior channel density with 16 thermocouple inputs per module, increasing system integration and saving panel space .

• Direct PLC Integration: Allows thermocouple sensors to connect directly to the Series 90-30 PLC backplane, eliminating the need for external transmitters or signal conditioners .

• Open Circuit Detection: Built-in diagnostic feature where the %AI register goes to its maximum value upon an open circuit condition, and a corresponding %I bit is energized for immediate fault identification .

• Configurable Temperature Units: Temperature values can be reported in 0.5°C or 0.5°F increments, selectable through configuration parameters for application flexibility .

• Wide Thermocouple Compatibility: Supports 10 thermocouple types (J, K, N, T, E, R, S, B, C, X), covering measurement ranges from cryogenic to extremely high-temperature applications .

• Superior Noise Rejection: Common mode rejection exceeding 100dB and 20 Megohm input impedance ensure stable readings in electrically noisy industrial environments .

• Removable Terminal Block: Uses a special 32-position high-density removable terminal block for convenient field wiring and maintenance .

Application Scenarios
This module is deployed in industrial control systems requiring precise multi-point temperature measurement:

• Industrial Automation: Monitors furnace temperatures, mold temperatures, and product temperatures in manufacturing production lines .

• Process Control: Used in chemical, petrochemical, and water treatment plants for continuous temperature monitoring of critical process parameters .

• Metallurgy: Measures high-temperature furnace conditions in steelmaking and metal processing operations .

• Food Processing: Monitors processing temperatures to ensure product quality and safety compliance .

• Building Automation: Controls HVAC temperature monitoring systems in commercial building management .

• Power Generation: Monitors transformer and equipment temperatures in power plants and electrical substations .

• Environmental Monitoring: Tracks temperature data in air quality, water quality, and meteorological monitoring stations .
