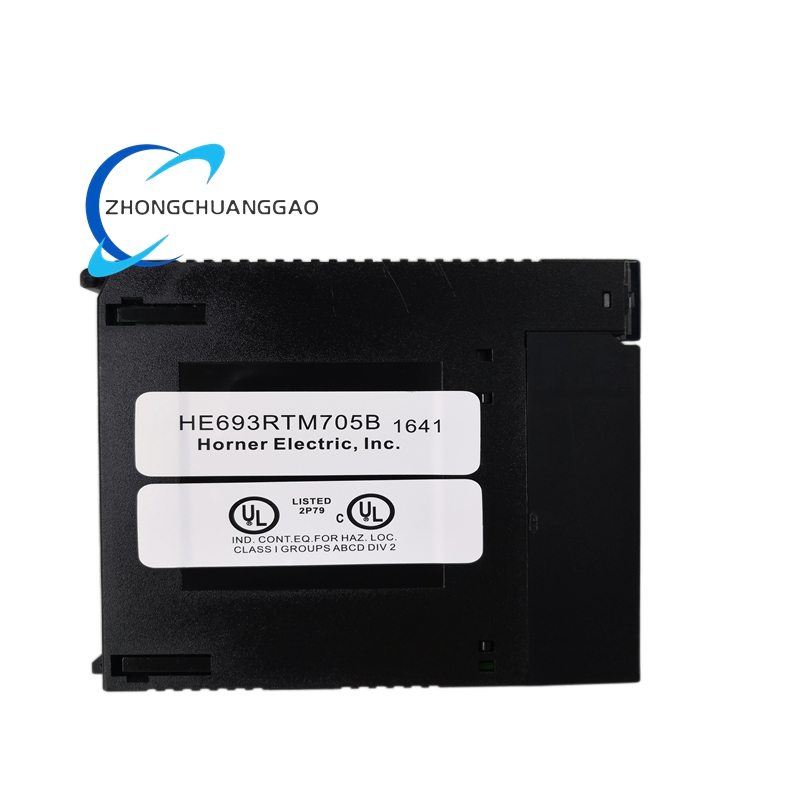

GE HE693RTM705 Modbus/RTU Master Communication Module

Technical Specifications
Manufacturer: GE (General Electric)
Model Number: HE693RTM705
Product Type: Modbus/RTU Master Communication Module
System Series: Series 90-30 PLC
Communication Protocol: Modbus/RTU Master
Number of Channels: Two independent Modbus/RTU master channels
Baud Rate: 9600 bps to 115200 bps
Maximum Slave Devices: Up to 32 RTU slaves per network
Maximum Transmission Distance: 2000 meters
Supported Interfaces: RS-232, RS-422, RS-485
Power Consumption: 425 mA at 5 VDC
CPU Requirement: CPU331 or higher Series 90-30 CPU
Expansion Rack Support: Not supported in expansion racks
Physical Dimensions: 90 mm × 30 mm × 25 mm
Weight: 100 g
Enclosure Material: Aluminum alloy
Connection Type: Terminal connection

Key Features
Dual Independent Master Channels: Provides two separately programmable Modbus/RTU master channels, allowing simultaneous communication with multiple RTU slave devices across different networks .
High-Speed Data Transmission: Supports baud rates up to 115200 bps, ensuring rapid and real-time data exchange for time-critical industrial control applications .
Flexible Communication Modes: Each channel can be individually configured for various operational modes including dial-in, dial-out, radio modem, multi-drop (RS-422/RS-485), and direct connection (RS-232) .
Standard RTU Command Support: Each channel can send or receive analog or discrete data using standard RTU commands such as Read Coil. Multiple commands can be sent to each slave, with each command requesting either a single point or multiple contiguous points up to 250 bytes .
Integrated Data Mapping: Data to be sent or stored is directly placed in the Series 90-30/90-70 reference data tables, simplifying programming and system integration .
High Reliability Construction: Manufactured with high-quality components and rigorously tested to ensure long-term stable operation in demanding industrial environments .
User-Friendly Configuration: Includes clear wiring diagrams and programming guidelines for straightforward installation, configuration, and commissioning .

Application Scenarios
Process Control: Monitoring and controlling processes in chemical, oil, and gas industries, including pipeline monitoring and tank level measurements .
Manufacturing Automation: Controlling production line equipment, conveyor systems, and other machinery to enhance production efficiency and product quality .
Data Acquisition and Remote Monitoring: Performing remote data collection from distributed field devices and implementing real-time monitoring systems to reduce operational and maintenance costs .
Power Generation and Energy: Remote monitoring of power generation equipment in wind, hydroelectric, and conventional power plants .
Water and Wastewater Treatment: Management of pumps, valves, and treatment processes in water treatment facilities .
Metallurgy and Mining: Controlling and monitoring equipment in harsh industrial environments including metals processing and mining operations .
Building Infrastructure: Remote monitoring and control of HVAC systems, water supply systems, and other building services .
