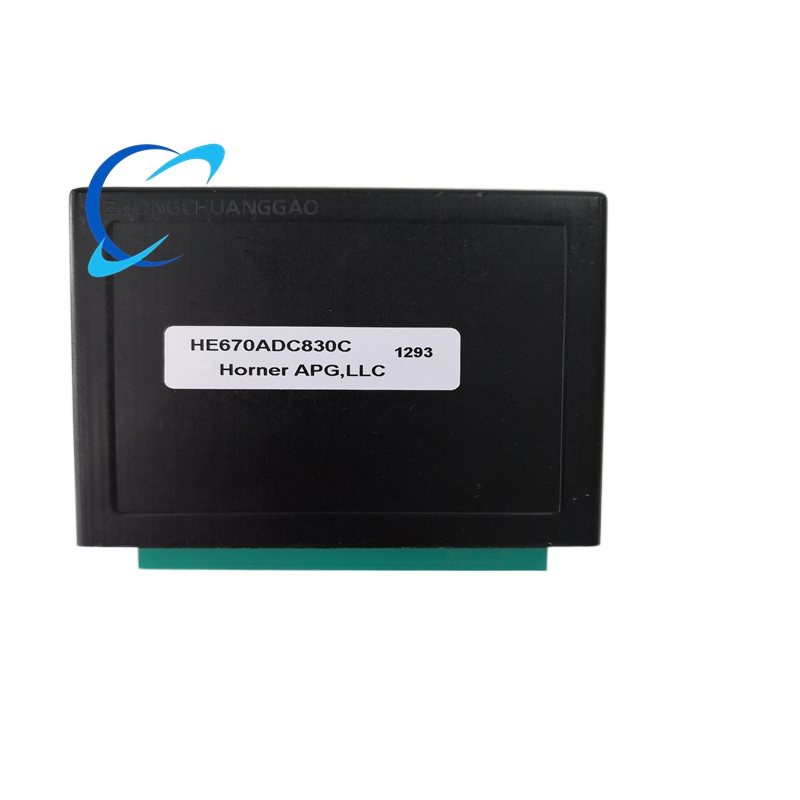

GE HE670ADC830 Analog Input Module

Product Overview
The GE HE670ADC830 is an analog input module designed for the GE Fanuc Field Control system. It functions as an interface for converting analog voltage signals from field sensors and transmitters into precise digital values for processing by a master Programmable Logic Controller (PLC). This module is suited for industrial automation tasks that require high-accuracy data collection, such as monitoring temperature, pressure, and flow.

Category:
Description

Technical Specifications

  • Compatibility: GE Fanuc Field Control System

  • Number of Channels: 8 single-ended analog input channels

  • Resolution: 12-bit (11 bits plus sign bit)

  • Input Voltage Range: 0 to +10 VDC, or -10 to +10 VDC, selectable via the Bus Interface Unit (BIU)

  • Input Impedance: 1 Megohm

  • Absolute Maximum Accuracy: ±0.1% of full scale at 25°C

  • Output Format: Configurable by the BIU; typically 10V corresponds to 10,000 counts

  • Channel-to-Channel Isolation: 400 VDC

  • Channel-to-Backplane Isolation: 1000 VDC

  • Power Requirement: 24 VDC ±10% input power; 130 mA power consumption from the backplane

  • Operating Temperature: 0°C to 75°C; other sources cite a wider range of -40°C to 70°C

  • Relative Humidity: 5% to 95%, non-condensing

  • Conversion Speed: Fast analog-to-digital conversion time of less than 2 milliseconds

Key Functional Features

  • High-Resolution Conversion: The 12-bit resolution ensures that analog input signals are converted into digital data with precision, enabling accurate monitoring of process variables.

  • Configurable Input Ranges: The input range is software-selectable via the Bus Interface Unit, allowing the module to work with both unipolar (0-10V) and bipolar (-10 to +10V) sensor outputs without hardware changes.

  • Superior Signal Isolation: Provides robust electrical isolation of 400 VDC between individual channels and 1000 VDC between channels and the system backplane. This design protects the control system from damaging ground loops and transient voltage spikes.

  • High Noise Immunity: Features a Common Mode Rejection Ratio (CMRR) greater than 60 dB and noise immunity exceeding 10 V RMS, ensuring stable and reliable signal readings even in electrically noisy industrial environments.

  • Compact Field I/O Design: The module is housed in a standard Field Control I/O case and is compatible with various I/O terminal bases, offering flexible termination and simplified installation within control cabinets.

Application Scenarios

  • General Factory Automation: Integrates into PLC systems to collect data from analog sensors monitoring machine status, assembly line parameters, and equipment health.

  • Process Control Industries: Used extensively in oil and gas, chemical, and petrochemical plants for precise measurement and control of critical parameters like reactor temperature, pipeline pressure, and material flow rates.

  • Power Generation and Utilities: Deployed in power plants and water treatment facilities to monitor systems such as boiler feed water temperature, steam pressure, and water quality metrics.

  • Metals and Pulp & Paper Manufacturing: Applied in harsh industrial settings like steel mills and paper machines, where its high noise immunity and electrical isolation ensure reliable operation despite the presence of high-power drives and motors.
