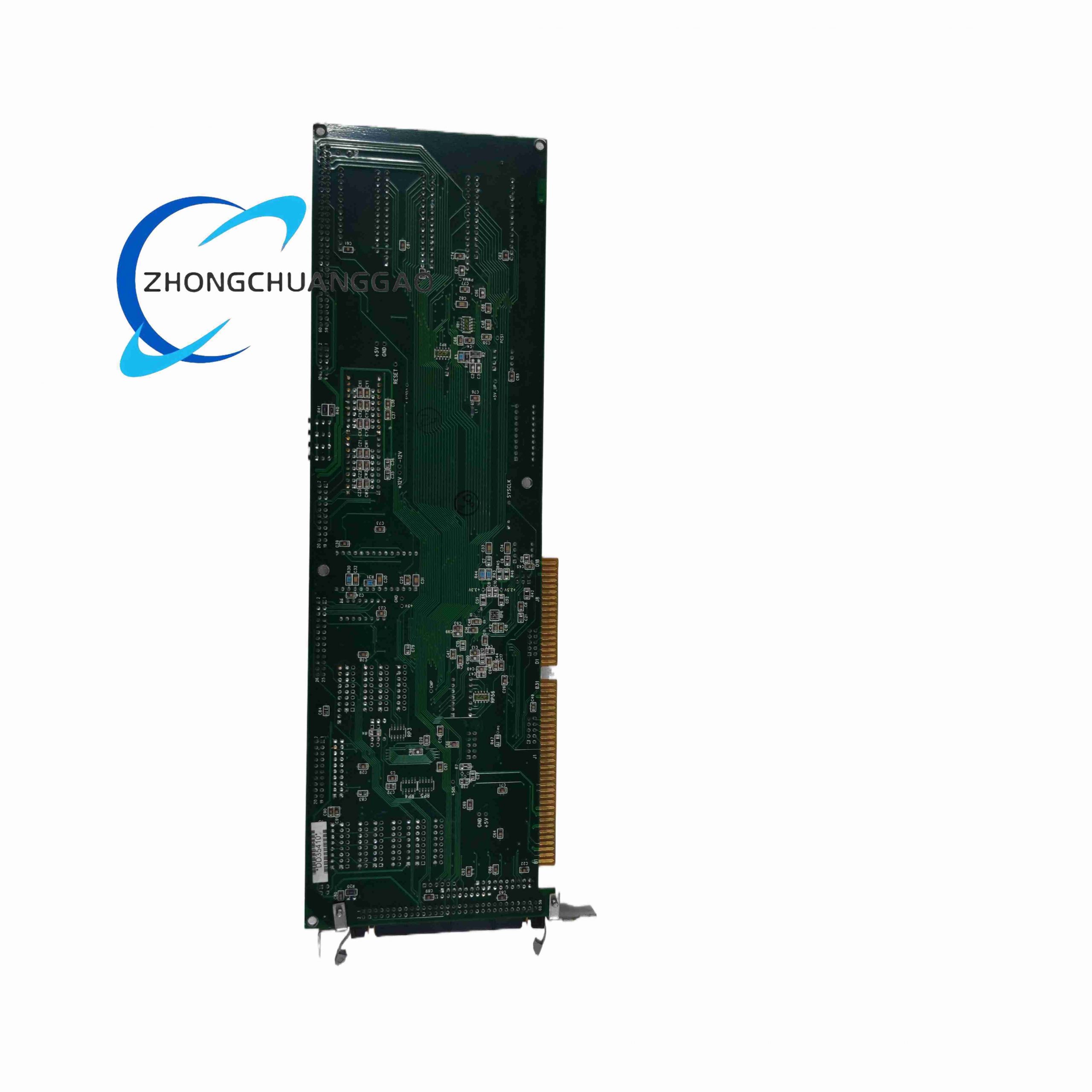

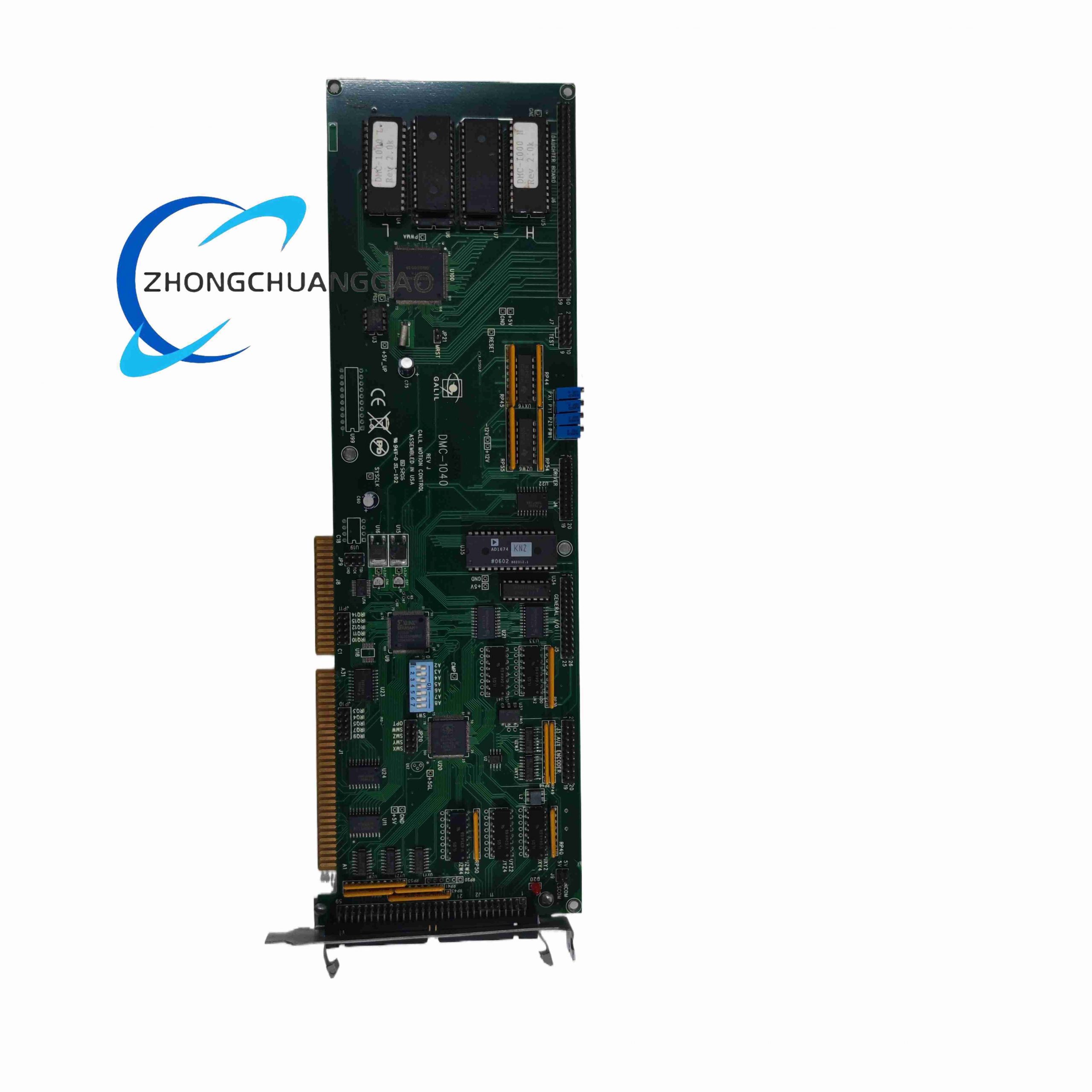

Galil DMC-1040

  • Product Name:​ Galil DMC-1040 4-Axis ISA-bus Servo/Stepper Motion Controller
  • Product Introduction:​ Industry-standard PC-plug-in (ISA slot) standalone motion controller with dedicated 32-bit microprocessor. Controls up to 4 axes of servo (analog ±10 V) or step/direction motors independently or in coordinated mode. Offloads all trajectory calculation from the host PC.
Category:
Description
  • Technical Specifications:
    • Bus interface: ISA (16-bit)
    • Axes: 1–4 axes (model DMC-1040 = 4-axis)
    • Servo update rate: 1 kHz (standard), up to 16 kHz selectable
    • Encoder input: differential RS-422, max. 12 MHz​ count rate
    • Step output: up to 3 MHz​ pulse & direction
    • DAC outputs: ±10 V (12-bit or 16-bit depending on option) for servo amplifiers
    • Onboard I/O: 8 optically isolated inputs (5–24 V DC), 8 TTL outputs (sinking)
    • Program memory: 2 KB–2 MB (EEPROM/Flash, model dependent), stores up to 8 simultaneous user programs
    • Motion modes: point-to-point (PTP), jog, linear & circular interpolation, contouring, electronic gearing, electronic cam (with Option ECAM), cubic spline
    • Communications: also supports RS-232 (DB9) on some piggyback boards; primary is ISA bus
    • Power: +5 V from ISA bus, +12 V for opto-isolation (if used)
  • Features:​ Watchdog timer, hardware-estop input, position compare/latch, dual encoder feedback (option), teach mode, on-the-fly parameter change, Galil two-letter ASCII command set (e.g., BG, PA, PR, SP).
  • Application:​ Retrofit CNC, semiconductor probe stations, lab automation, inspection equipment with legacy ISA-backplane PCs.
  • Installation & Notes:​ Ensure adequate ventilation in PC chassis. Shield encoder cables with twisted-pair, drain to shield ground only at controller end. Use Galil Suite / WSDK for tuning and debugging.
