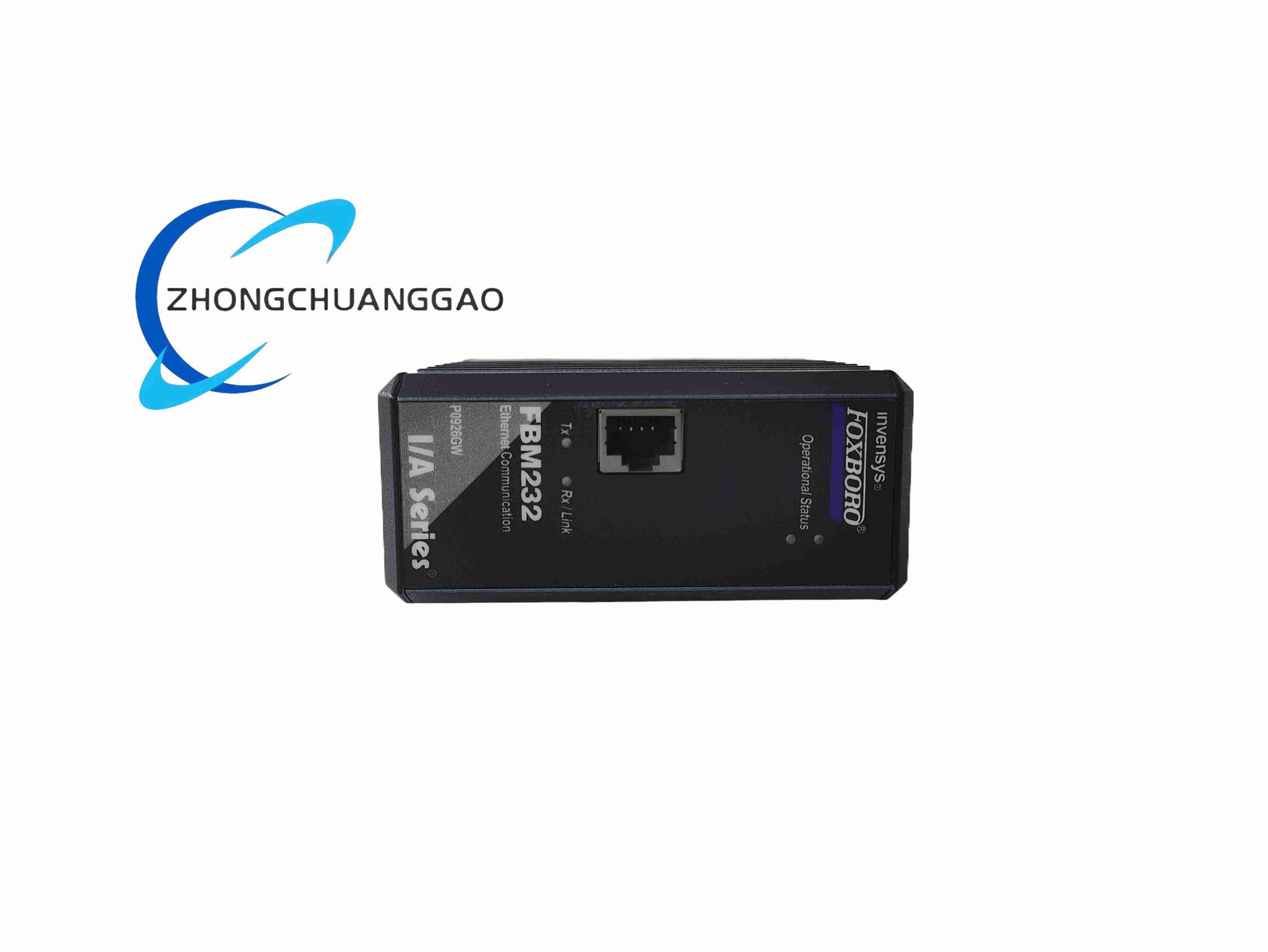

Foxboro FBM232 P0926GW

Product Introduction: The FBM232 is a DCS node component for Foxboro Evoluton / I/A Series that provides a 10/100 Mbps Ethernet port to communicate with intelligent field devices or third-party systems using Modbus TCP/IP, EtherNet/IP, or custom drivers. It offloads protocol handling from the control processor.

Category: FOBORO

Description

Technical Specifications:

Interface: 1 × 10/100 Mbps auto-sensing RJ45 Ethernet port (supports Modbus TCP server/client, EtherNet/IP adapter)
Backplane: Foxboro I/A Series Nodebus / Control Network (Foxboro Evo FCP270/280 compatible)
Power: 24 V DC backplane supply
Data Capacity: Supports up to ~2000 DCI data connections; up to 64 devices per port via external switch
Processor: 32-bit RISC, Boolean execution 0.1 µs, floating-point 0.5 µs
Memory: 8 MB program, 4 MB data
Hot-Swap: Yes, can be replaced online without shutting down the nodebus
Environment: Operating −40 to +85 °C; G3 corrosive environment rated per ISA-S71.04
Enclosure: IP20 (slot-in module in I/A chassis)
Certifications: CE, FM, CSA, ATEX (where applicable)

Function & Principle:

Acts as protocol gateway—maps field device registers to Foxboro compound/block database.
Periodically polls/pushes data via Ethernet and updates control processor blocks via Nodebus.

Applications: Integrating Modbus TCP instruments, power meters, VFDs, PLCs into Foxboro DCS; replacing serial FBM231 in Ethernet-centric architectures.

Installation & Notes:

Insert into designated FBM slot of I/A Series baseplate; ensure proper earth grounding of chassis.
Assign unique IP address via Foxboro System Definition (SysDef). Confirm firewall rules permit required TCP ports (502 for Modbus TCP, etc.).
Do NOT remove while control network is active unless hot-swap is enabled and confirmed.
