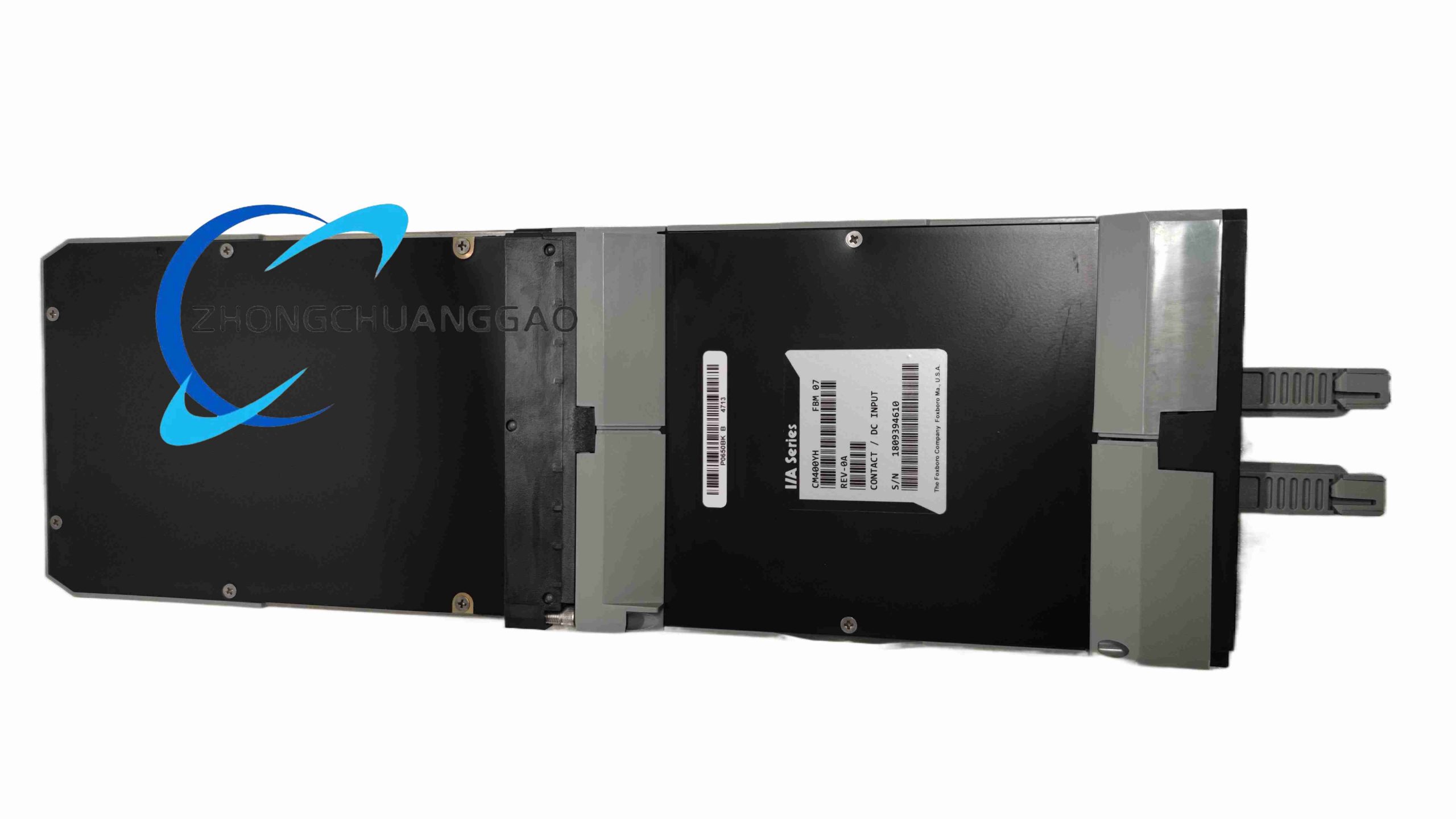

Foxboro FBM07

Technical Specifications:

• Input Signal Range: 0–20 mA, 4–20 mA analog; discrete digital signals
• Maximum Output Frequency: 1 MHz
• Operating Voltage: 24 VDC
• Maximum Power Consumption: 5 W
• Accuracy: ±0.1% of full scale
• Communication Protocols: Modbus RTU / TCP
• Operating Temperature: -20°C to +85°C
• Enclosure: Industrial-grade for harsh environments Functional Features:
• Multi-type signal acquisition and conversion for both analog and digital I/O
• Strong anti-interference capability for complex industrial sites
• Flexible channel configuration via software
• Built-in self-diagnostic and fault detection functions
• Seamless integration with Foxboro I/A Series DCS Application Scenarios:
• Signal acquisition and control in petroleum, chemical, power and metallurgy industries
• Data interaction between DCS and field sensors/actuators
• Process monitoring and closed-loop control in continuous production lines Structural Features:
• Standard modular card structure compatible with DCS rack mounting
• Robust housing with electromagnetic shielding
• Front panel status indicators for channel and module health Operating Principle: The module collects analog and digital signals from field sensors through input channels, performs signal conditioning and A/D conversion, and transmits processed data to the main control system via fieldbus. It also receives control commands, performs D/A conversion, and outputs signals to drive field actuators. Installation Requirements:
• Install in dedicated DCS cabinet slots with adequate ventilation
• Ensure stable 24 VDC power supply within ripple limits
• Use shielded signal cables and separate power/signal wiring
• Follow ESD protection procedures during installation Usage Notes:
• Do not hot-swap without following proper operational procedures
• Clean dust regularly to maintain heat dissipation performance
• Perform periodic functional tests to verify signal accuracy
