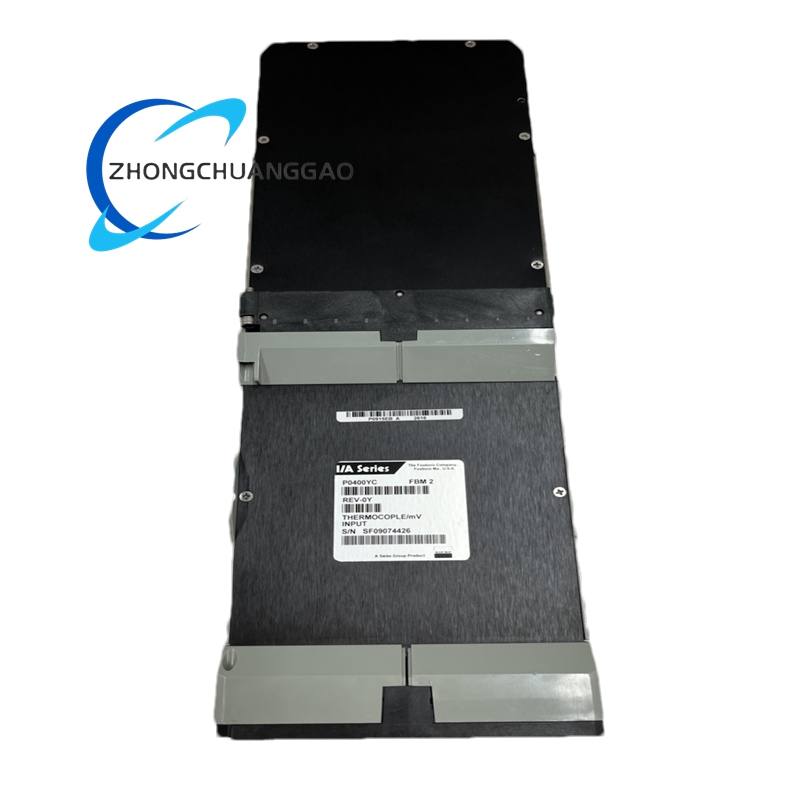

FOXBORO FBM02 I/O Module
Technical Specifications
- Input/Output Types:
- Thermocouple/mV input (e.g., P0400YC model for temperature measurement).
- Analog input channels (e.g., 8 channels with configurable ranges like 4-20 mA, 0-10V).
- Voltage Range:
- Operating voltage: 26-42 VDC (typical for P0400YC).
- Power consumption: 14W (typical).
- Environmental Conditions:
- Operating temperature: -40°C to 85°C (storage: -40°C to 90°C).
- Humidity tolerance: 0.65%-0.7% non-condensing.
Description
- Physical Attributes:
- Dimensions: 200mm (length) × compact form factor for DIN rail or panel mounting.
- Weight: 2-5 kg (depending on configuration).
- Certifications: Compliant with industrial standards like CE and ISO for safety and reliability.
Key Features
- Signal Conversion: Converts thermocouple, RTD, or analog signals into digital data for DCS integration.
- Isolation: Provides electrical isolation between input/output channels to prevent interference.
- Redundancy Support: Compatible with redundant Fieldbus networks for high availability.
- Hot-Swappable: Designed for easy replacement without system shutdown.
- Flexible Configuration: Supports multiple input ranges and customizable settings via software.
- Robust Design: Withstands vibration, shock, and corrosive environments.
Applications
- Process Control: Used in chemical plants, refineries, and power generation for temperature, pressure, and flow monitoring.
- Discrete Manufacturing: Controls actuators, valves, and sensors in automotive or food processing lines.
- SCADA Systems: Integrates with supervisory control networks for remote monitoring.
- Energy Sector: Manages boiler systems, turbine controls, and renewable energy installations.
- Water Treatment: Monitors pH levels, chlorine content, and pump stations in municipal or industrial facilities.
Additional Notes
- The FBM02 is part of FOXBORO’s I/A Series® DCS ecosystem, ensuring seamless interoperability with other modules (e.g., FBM01, FBM06).
- Optional accessories include cable terminals (e.g., P0500RG) and mounting kits for enhanced installation flexibility.
- Supported by FOXBORO’s global service network for maintenance and technical support.
