Fisher LCP100

Product Brief:​

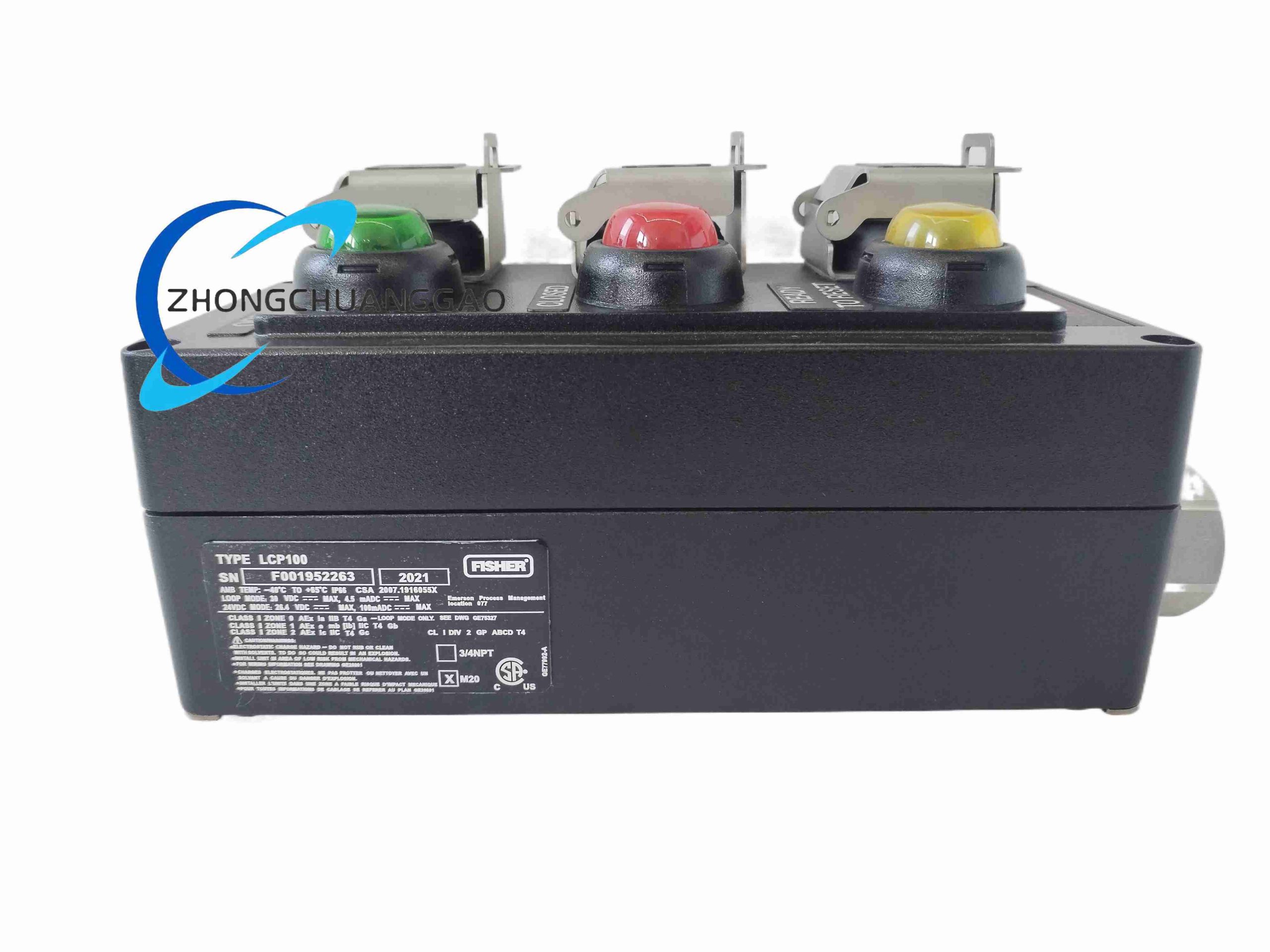

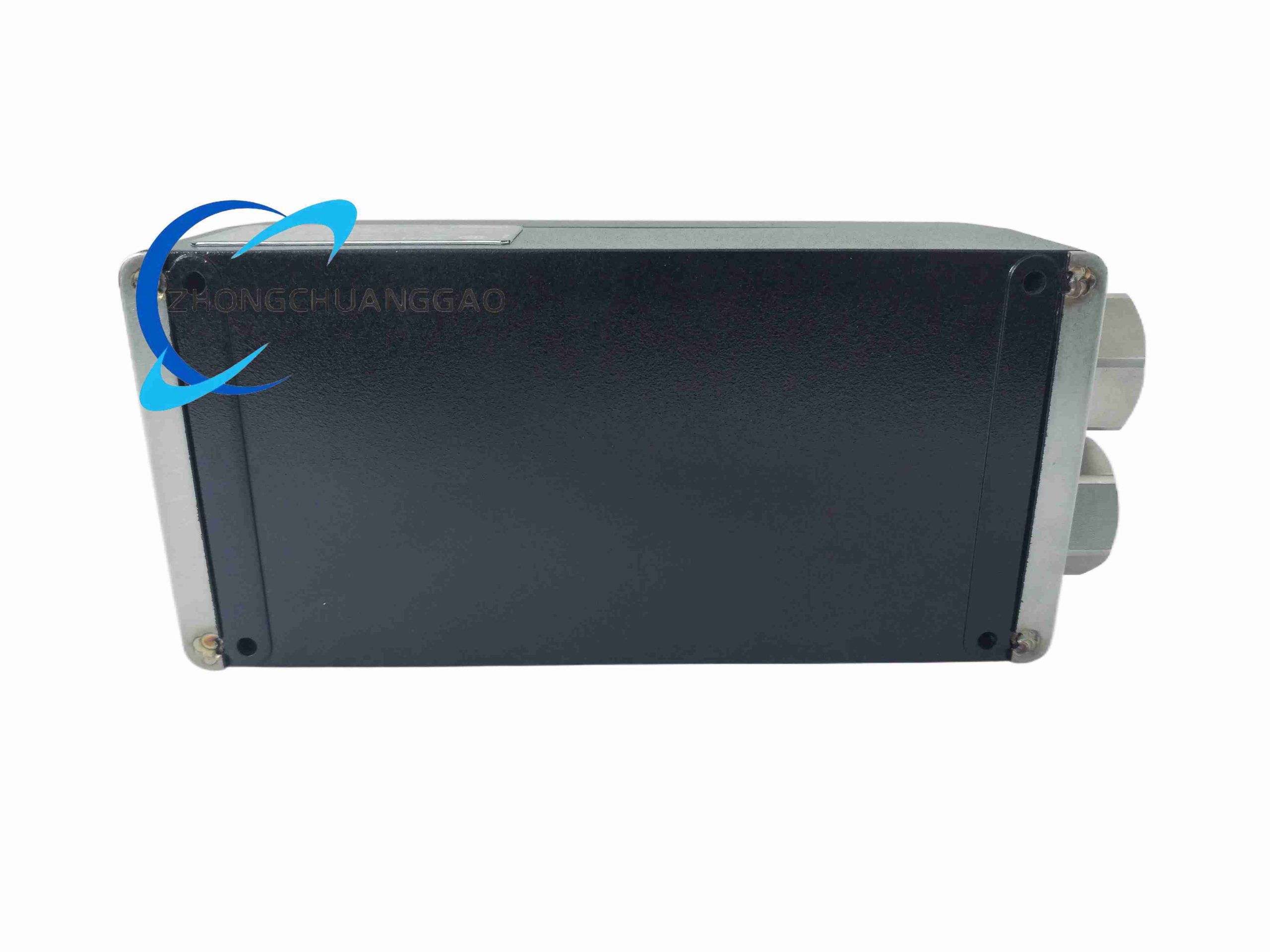

The Fisher LCP100 is a locally mounted, ruggedized control station that interfaces with a Fisher FIELDVUE DVC6200 SIS digital valve controller on a safety shutdown (ESD) valve. It provides a manual RESET pushbutton, an EMERGENCY SHUTDOWN (Close) pushbutton, a PARTIAL STROKE TEST button, and three status indicating LEDs — allowing safe local operation without accessing the instrument directly.
Category:
Description
Technical Specifications:
  • Power Options:
    • Loop-powered from DVC6200 SIS (8–20 mA loop; max 0.126 W)
    • Or external 24 VDC ±10 %, 50 mA max continuous (100 mA inrush)
  • Compatibility:​ DVC6200 SIS (FW rev 3+) or DVC6000 SIS (FW rev 7+)
  • Maximum Cable Length to DVC:​ 314 m (1030 ft) with 18 AWG shielded cable; limited by cable capacitance ≤ 18,000 pF (loop-powered mode)
  • Pushbuttons:
    • Green (Reset / Open):​ Manual reset after trip — returns valve to normal position when control current is restored
    • Red (Close / Trip):​ Forces valve to fail-safe position regardless of loop current
    • Black (Partial Stroke Test):​ Initiates PST per configured DVC logic
    • Buttons have lockable transparent polycarbonate covers
  • LED Indicators:
    • Green:​ Valve at normal position & loop normal (flashes if valve not at normal but loop OK)
    • Red:​ Valve at fail-safe / tripped state (flashes if valve not at FS but loop tripped)
    • Yellow (Ready to Reset):​ Valve latched in trip & loop normal — indicates reset possible
  • Electrical Housing:​ Glass-filled polyester, IP66 / NEMA 4X
  • Conduit Entry:​ 3/4″ NPT or M20
  • Wiring:​ 14–26 AWG, polarity-sensitive; terminals inside bottom compartment
  • Hazardous Area Approval:​ ATEX / IECEx Ex e mb [ib] IIC T4 Gb; FM / CSA Class I Div 2; suitable for Zone 1 / Zone 2 with proper IS barrier or non-incendive wiring
  • EMC:​ IEC 61326-1Industrial locations, Class A emissions
  • Dimensions:​ 253.1 × 109.5 × 127.8 mm (10″ × 4.3″ × 5″)
  • Weight:​ approx. 2.2 kg (4.9 lb)
  • Mounting Orientation:​ Wiring entry must face downward for self-draining
Installation & Notes:
  • Install in accessible location near the ESD valve; route shielded cable to DVC6200 SIS
  • Select loop-power or external 24 VDC via DIP switch inside enclosure
  • Perform function test after installation to confirm button actions and LED feedback
  • Do NOT paint over enclosure vents or conduit openings
