EPRO PR6425/010-130 + CON021/915-040 - Image 1
Click to enlarge

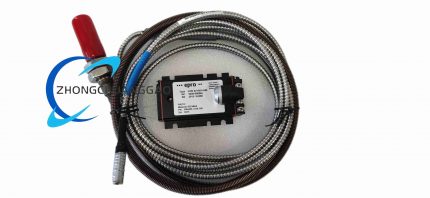

EPRO PR6425/010-100 + CON011
EPRO PR6425/010-100 + CON011
Back to products

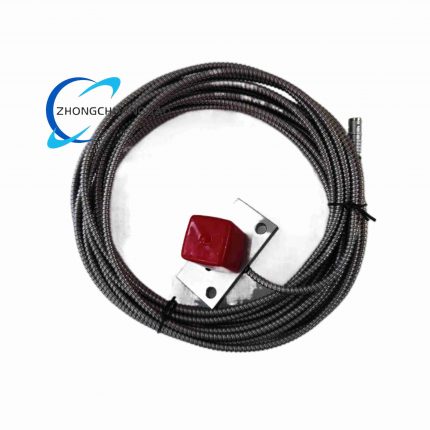

EPRO PR6426/010-000
EPRO PR6426/010-000

EPRO PR6425/010-130 + CON021/915-040

Product Name:​ 11 mm Wide-Gap Eddy Probe with Isolated/Safety-Barrier Proximitor
Product Introduction:​ PR6425/010-130 uses larger diameter (11 mm class) for ±1.5 mm to ±2 mm travel; CON021/915-040 is panel/dIN mounted driver with intrinsic-safety barrier (suffix /91) for hazardous areas.
Category:
Description
Technical Specifications:
  • Linear range: ±1.5 mm (standard pairing 915-040 = 4 mm span PR6425)
  • Sensitivity: 4 V/mm
  • CON021 supply: -23 to -32 V DC, output -4 to -20 V DC
  • Frequency: 0–10 kHz (-3 dB), rise <15 µs
  • Isolation: 500 V AC, safety barrier for Ex ib IIC T6/T4
  • Probe IP68, CON021 IP20 (cabinet mounted)
  • Cable: 3 m standard

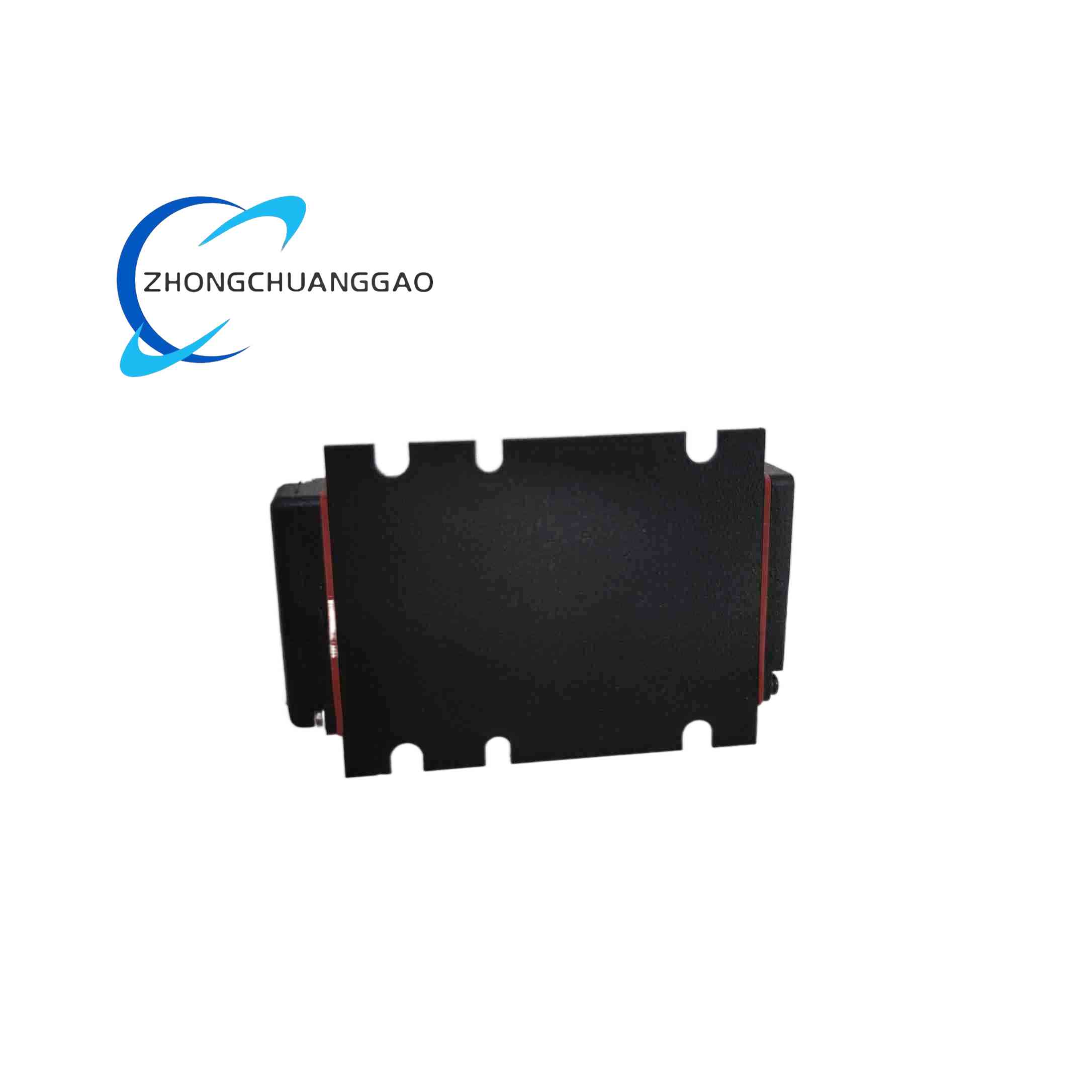

Structure:​ Probe = stainless body + ceramic/epoxy face + coaxial LEMO; CON021 = cast Al-Mg-Si housing, 4×M5 screws.
Applications:​ Offshore platforms, refinery compressors, explosive-classified turbine halls.
Notes:​ /915-040 means calibrated for PR6425 4 mm span; mixing with wrong CON021 suffix shifts zero and span.
