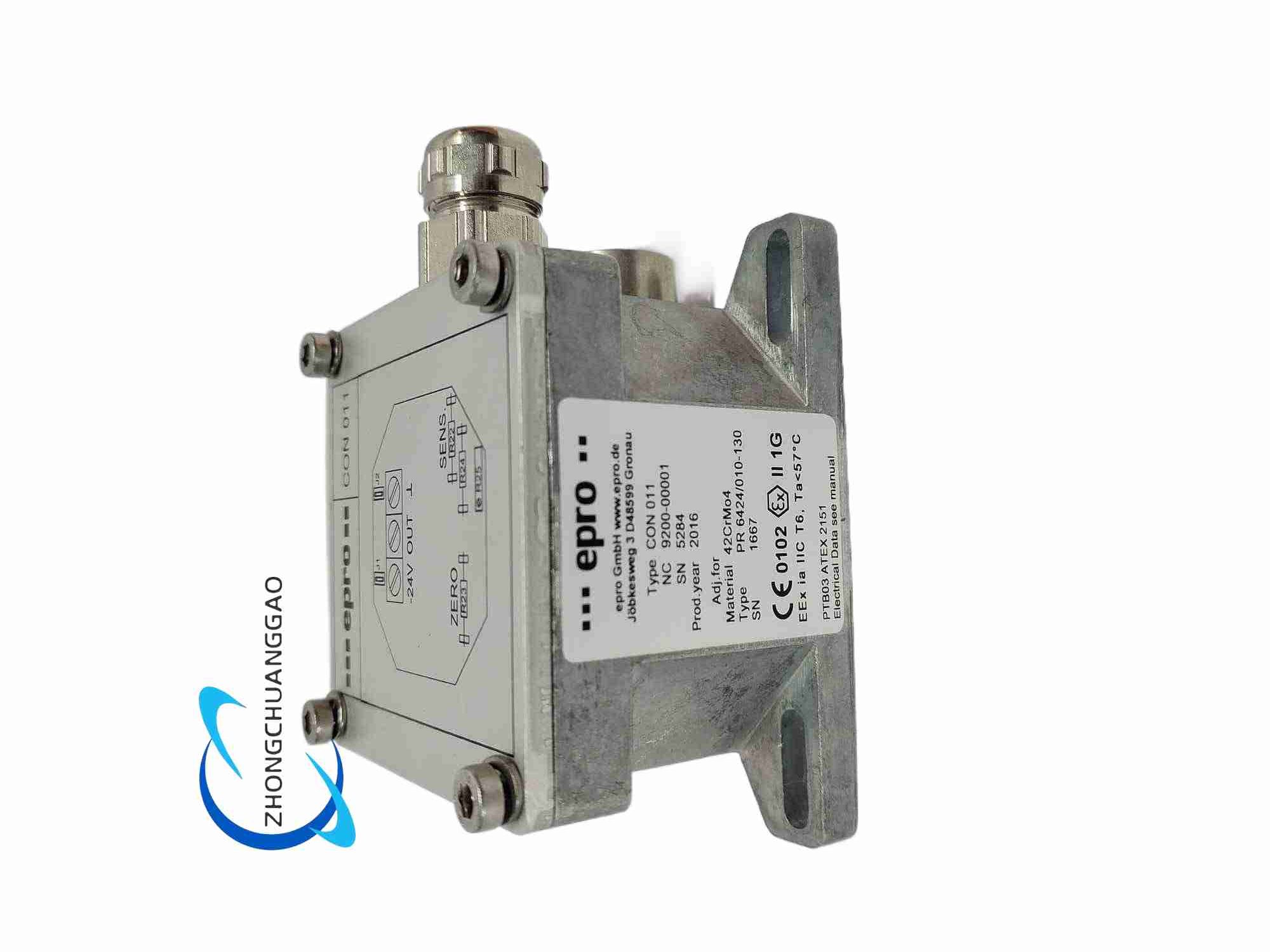

EPRO PR6424/010-130 + CON011

Product Name:​ Eddy-Current Shaft Displacement/Vibration Probe with Proximitor Signal Conditioner
Product Introduction:​ Non-contact 8 mm eddy-current transducer pair for radial/axial shaft displacement, eccentricity and dynamic vibration measurement on turbo-machinery; CON011 is the DIN-rail mounted driver that converts RF impedance change into a linear DC voltage plus AC dynamic signal.
Category:
Description
Technical Specifications:
  • Probe diameter: 8 mm (M18×1.5 thread)
  • Linear range: ±2 mm (4 mm total), sensitivity 4 V/mm
  • Probe cable: 3 m armored coaxial, LEMO sealed plug
  • CON011 supply: -24 V DC (±25 %), output -4 to -20 V DC static + AC dynamic on BNC
  • Frequency response: 0–10 kHz (-3 dB)
  • Linearity: ≤1.5 % FS
  • Resolution: 0.1 µm
  • Probe temp: -35 °C to +180 °C; CON011 temp: -35 °C to +70 °C
  • Protection: Probe IP68, CON011 IP67
  • Compliant with API 670, ISO 10817-1, DIN 45670
Working Principle:​ High-frequency oscillator in CON011 excites the probe coil; metallic shaft induces eddy currents that damp oscillation amplitude proportionally to gap; CON011 demodulates gap into voltage.
Installation Requirements:​ Probe installed in machine housing bracket with torque 2.5–3.5 Nm; initial air gap set to mid-range (typically -12 V output); CON011 on 35 mm DIN rail inside cabinet, shielded cable grounded at one point.
Application:​ Steam/gas turbines, compressors, pumps, fans in power, petrochemical, steel plants.
Notes:​ Never interchange with Bently 3300 XL (different calibration/connector); recalibrate gap after probe removal.
