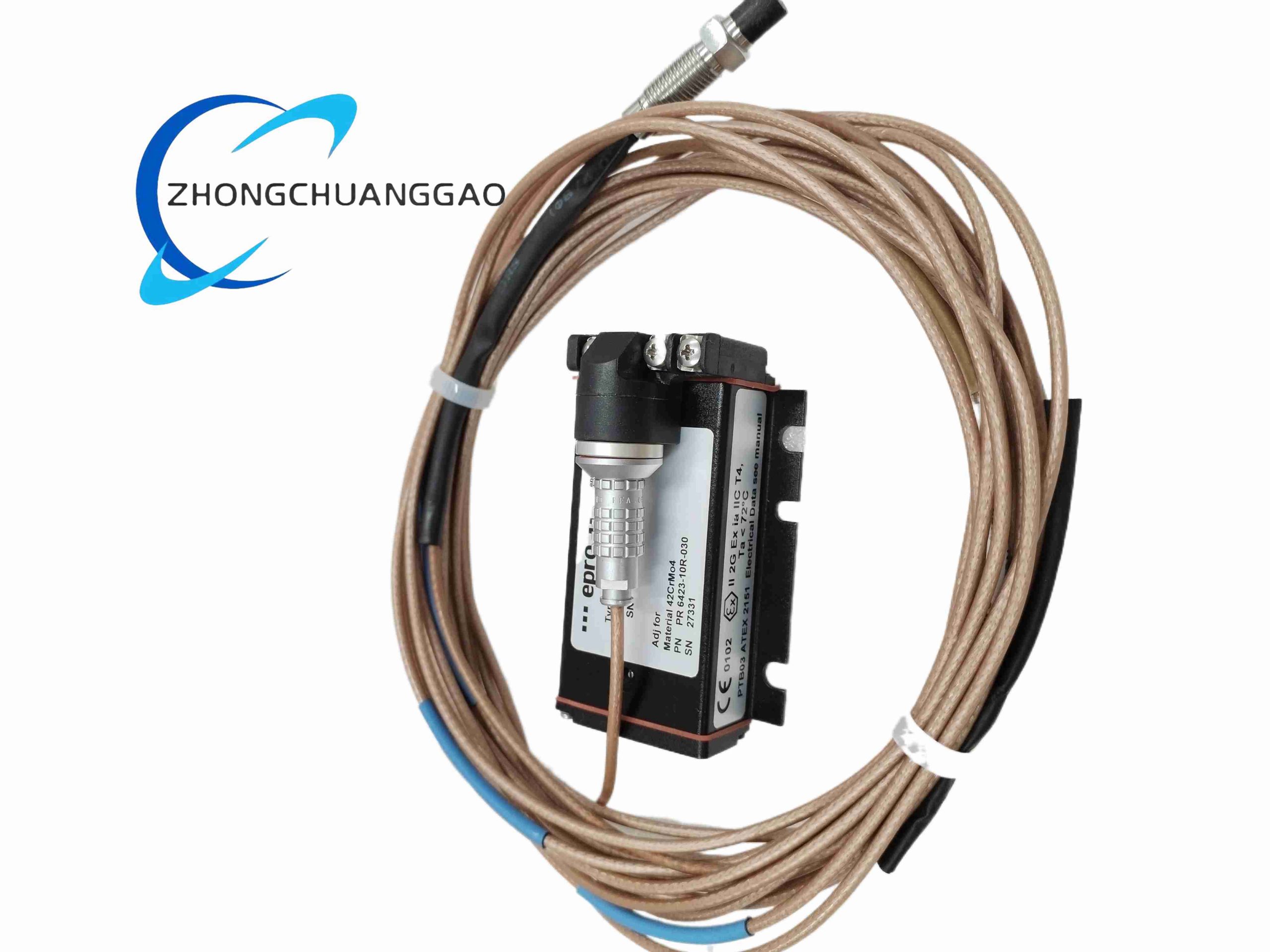

EPRO PR642310R-030-CN+CON021

Product Name: Eddy Current Displacement Sensor Assembly

Product Introduction: PR6423/10R-030-CN with CON021 is non-contact eddy current sensor, used for shaft vibration and displacement measurement of rotating machinery.

Category:
Description

Technical Specifications: Linear measuring range 2mm; Scale factor 8V/mm; Power supply 12~24V DC; Sensor operating temperature -35℃ ~ +200℃.

Function Features: Non-contact measurement; High linearity; Good temperature stability; IP66 protection; Anti-interference ability.

Application Scenarios: Steam turbine, gas turbine, compressor, pump, fan shaft vibration, eccentricity, axial position monitoring.

Material Composition: Sensor tip PEEK material, housing stainless steel, cable PTFE, connector nickel-plated brass.

Structural Features: Probe + extension cable + CON021 signal converter integrated set; Threaded probe installation structure.

Working Principle: Eddy current effect, the change of distance between probe and metal target changes the coil impedance, converted into voltage output by signal conditioner.

Installation Requirements: Keep the initial air gap within linear range; Target surface is ferromagnetic steel; Avoid metal burr around measuring target.

Usage Notes: Prevent probe collision with rotating shaft; Cable cannot be folded sharply; Calibrate before commissioning.
