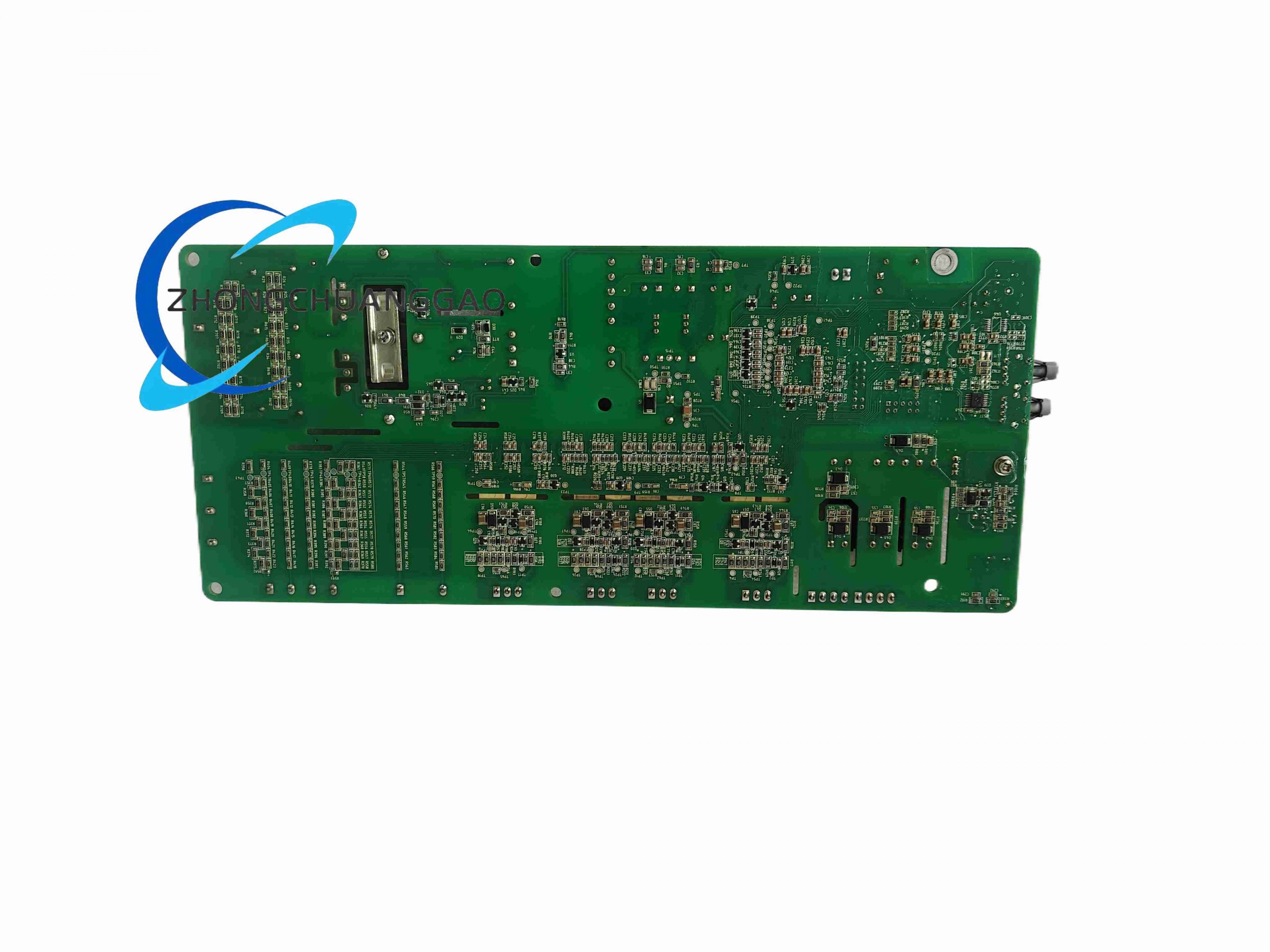

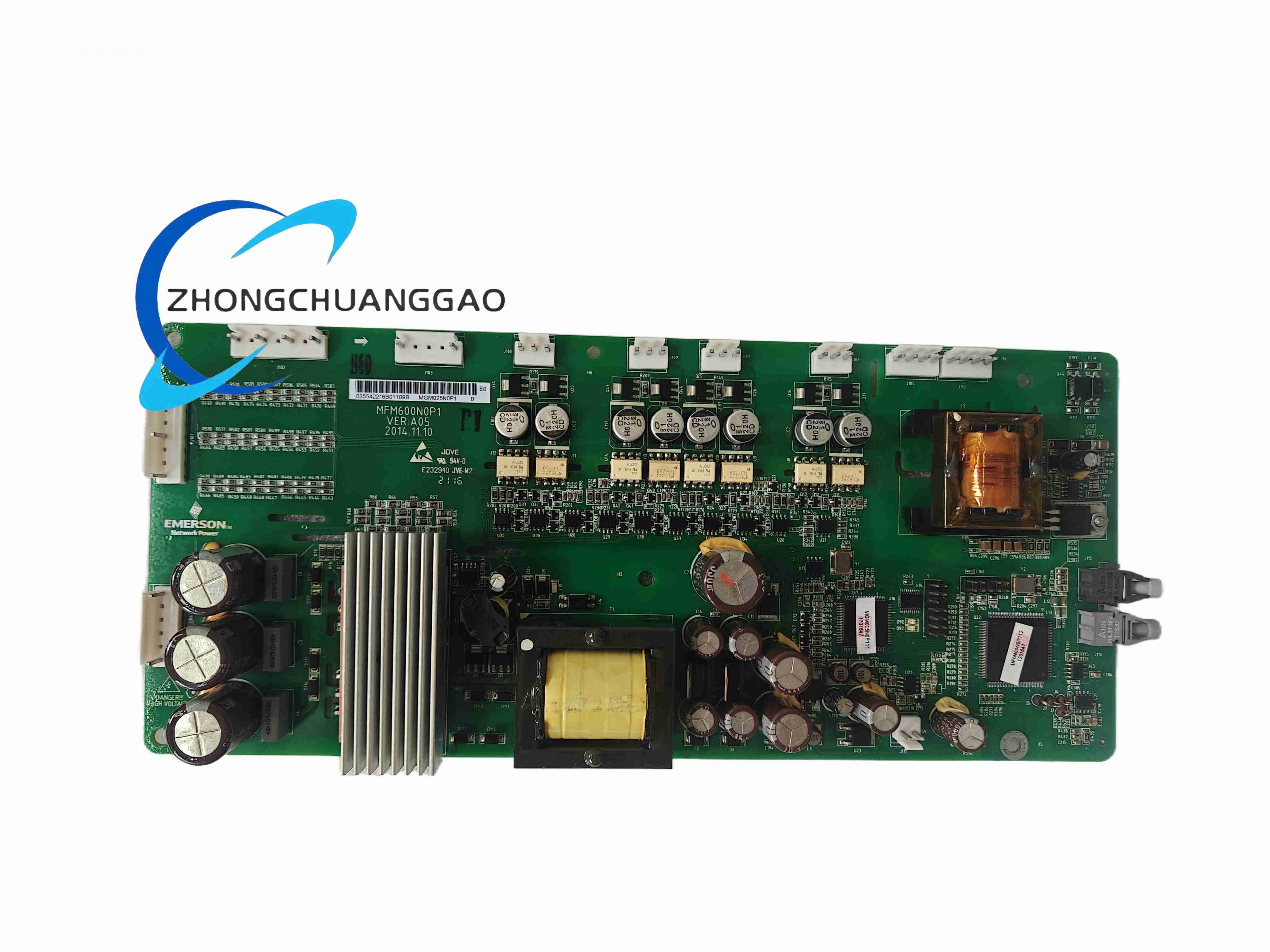

Emerson MFM600N0P1

Product Name: Emerson Micro Motion® MFM600 Series Coriolis Mass Flow Transmitter / Gas Mass Flow Meter (MFM600N0P1)

Product Description: The Emerson MFM600 is a compact thermal-based or Coriolis-type (depending on exact sub-family — MFM600 typically denotes a thermal mass flow meter for gases) mass flow transmitter/sensor assembly for direct mass flow measurement of clean, dry gases. The suffix N0P1 defines specific options (pipe size, output, power).

Category: Emerson

Description

Technical Specifications (Typical for MFM600 Gas Thermal Mass Flow Meter):

Model Designation: MFM600N0P1 — usually indicates:
- Flow Body: Specific orifice / inline body (consult datasheet for N0P1 breakdown)
- Outputs: 4–20 mA + pulse + RS-485 (Modbus)
- Power Supply: 24 VDC (typical)
Measured Media: Clean, non-condensing gases (Air, N₂, O₂, Ar, CO₂, CH₄, etc.)
Flow Range: 0–Full Scale (user-scaled); typical turndown 100:1
Accuracy: ± 0.5 % to ± 1.0 % of reading (depending on gas & range)
Repeatability: ± 0.2 % of reading
Pressure Rating: Up to 100 bar (model dependent)
Temperature Rating: -10 °C to +60 °C (electronics); sensor -40 °C to +120 °C typical
Electrical Connection: M12 or 1/2″ NPT gland; DB9 / terminal block
Communication: RS-485 Modbus RTU, optional HART on 4–20 mA
Display: Local LCD (on some versions) showing flow rate, total, temperature

Features:

No moving parts — high reliability
Direct mass flow measurement — independent of gas pressure/temp (with compensation)
Built-in totalizer
Gas type selection via pushbuttons or software

Applications: Air & gas consumption monitoring, nitrogen purge metering, biogas measurement, compressed air audit, chemical dosing gas lines.

Construction & Materials:

Flow tube: 316L stainless steel
Sensor elements: Platinum RTD windings encapsulated
Electronics housing: Die-cast aluminum, epoxy-coated, NEMA 4X / IP65–IP67

Working Principle (Thermal Dispersion): Two RTDs on the flow tube — one heated above fluid temp, one senses fluid temp. As gas flows, heat is carried away proportionally to mass flow → electronics calculate mass flow from temperature differential.

Installation & Precautions:

Install with straight runs (min. 10×D upstream, 5×D downstream) unless flow conditioner used.
Ensure gas is clean and dry — particulates/fluids damage sensor.
Orient sensor as specified (horizontal pipe → sensor horizontal; vertical → flow upward preferred for gas).
Do NOT exceed max pressure or temperature ratings.
Bond/shield signal cables separately from power; ground at one point.
Select correct gas type in menu — mis-selection causes significant error.
