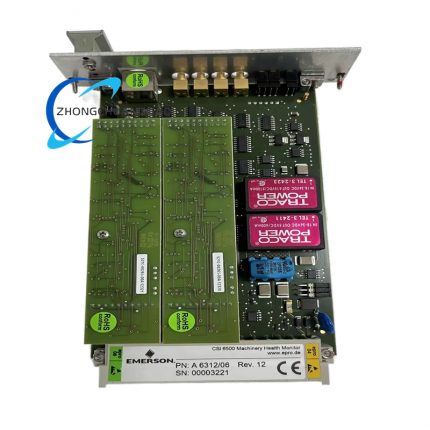

Emerson A6312
Emerson A6312
Back to products

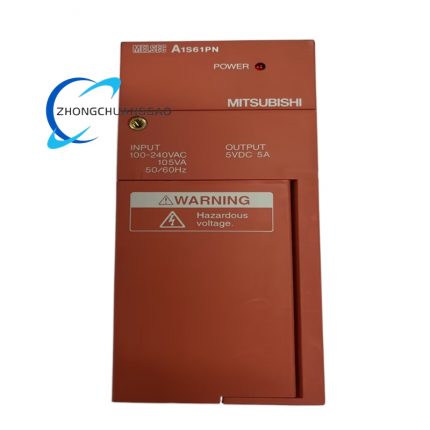

Mitsubishi A1S61PN
Mitsubishi A1S61PN

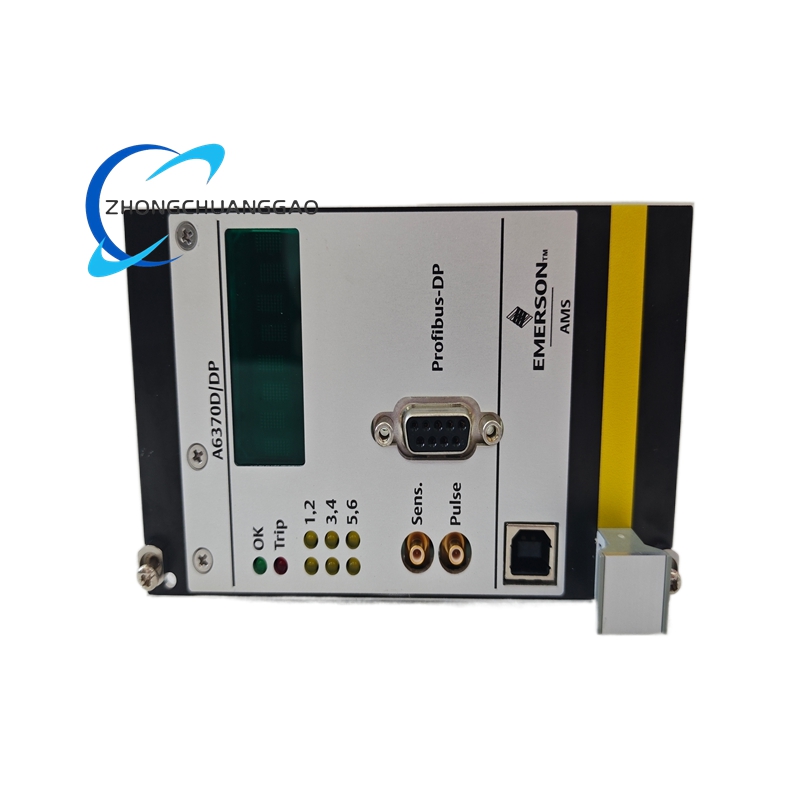

Emerson A6370D

  • Product Name: Emerson A6370D
  • Category: Turbine Vibration Monitor / Bently Nevada Compatible
  • Series: CSI 2140 Turbine Monitor
  • Manufacturer: Emerson Electric Co.
  • Description: High-speed turbine vibration and axial position monitor for steam turbines, gas turbines, and compressors. Provides shaft vibration, casing vibration, and axial displacement measurement with automatic trip capability.
Category:
Description
  • Model: A6370D
  • Channels: 4 proximity probe inputs (vibration) + 2 speed/keyphasor inputs + 4 relay outputs
  • Measurement:
    • Shaft Vibration: 0–250 µm peak-peak (displacement)
    • Casing Vibration: 0–25 mm/s RMS (velocity)
    • Axial Position: 0–10 mm (DC gap voltage)
  • Frequency Range: 0 Hz to 10,000 Hz (vibration); DC to 100 Hz (axial position)
  • Output: 4–20 mA per channel; 8 relay outputs (alarm/trip/status)
  • Probe Input: Bently Nevada 3300 XL 8mm or 5mm proximity probes (Eddy current)
  • Communication: HART 7, Modbus RTU/TCP, Ethernet/IP
  • Power Supply: 100–240V AC, 50/60Hz (or 24V DC option)
  • Operating Temperature: 0°C to +60°C
  • Enclosure: 19″ rack-mount, NEMA 1 / IP20 (front panel)
  • Material: Powder-coated steel chassis
  • Function: Continuous monitoring of turbine shaft orbit, vibration spectrum, and axial position for automatic trip on over-vibration or thrust bearing failure
  • Industry Application: Power generation (steam/gas turbines), oil & gas compressors, large industrial drives
  • Installation Requirement: 19″ rack mounting (4U height); requires Bently Nevada 3300 XL compatible probes and extension cables; proper grounding and shielding mandatory
  • Notes: Compliant with API 670 standard for machinery protection; configurable via Emerson AMS Turbine Machinery Manager software
