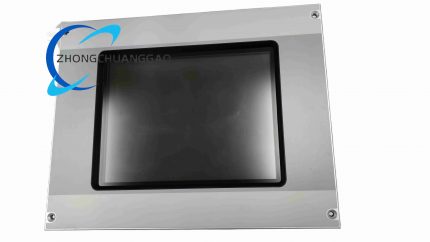

EATON XV-440-10TVB-1-20
EATON XV-440-10TVB-1-20
Back to products
EMERSON XVM-403-TBNS-0000
EMERSON XVM-403-TBNS-0000

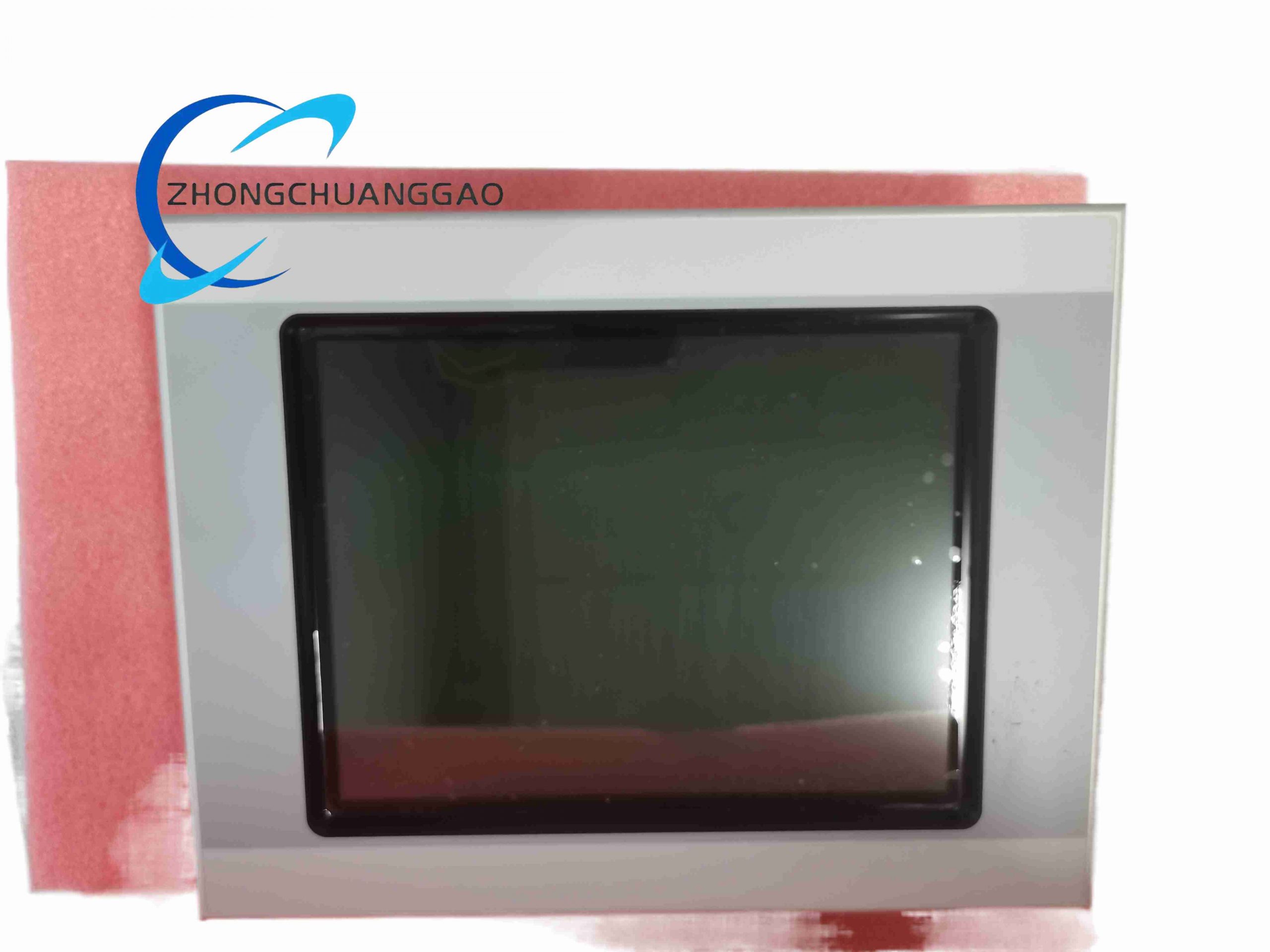

EATON XV-440-12TSB-1-10

Product Name: 12 inch Industrial HMI Touch Panel

Product Introduction: Eaton XV400 series industrial human-machine interface, industrial grade touch display terminal for equipment operation, status monitoring and data visualization, supports multiple industrial communication protocols to connect PLC, servo and sensors.

Category:
Description

Technical Specifications: Screen size 12 inch TFT display; touch type resistive touch; power supply 24 V DC; communication interfaces Ethernet, RS232, RS485, CAN, USB; front protection grade IP65; CE, RoHS certification.

Function Features: Rich built-in communication protocols; graphical screen editing function; support alarm log, data recording and recipe management; support multi-language display.

Application Scenarios: Factory automation production line, metallurgical equipment, printing machinery, packaging equipment, water treatment and building automation.

Performance Parameters: Operating temperature -20℃ ~ +60℃; storage temperature -30℃ ~ +70℃; non-condensing relative humidity 0%~95%.

Material Composition: Aluminum alloy front frame; anti-glare touch glass; industrial plastic and metal composite housing.

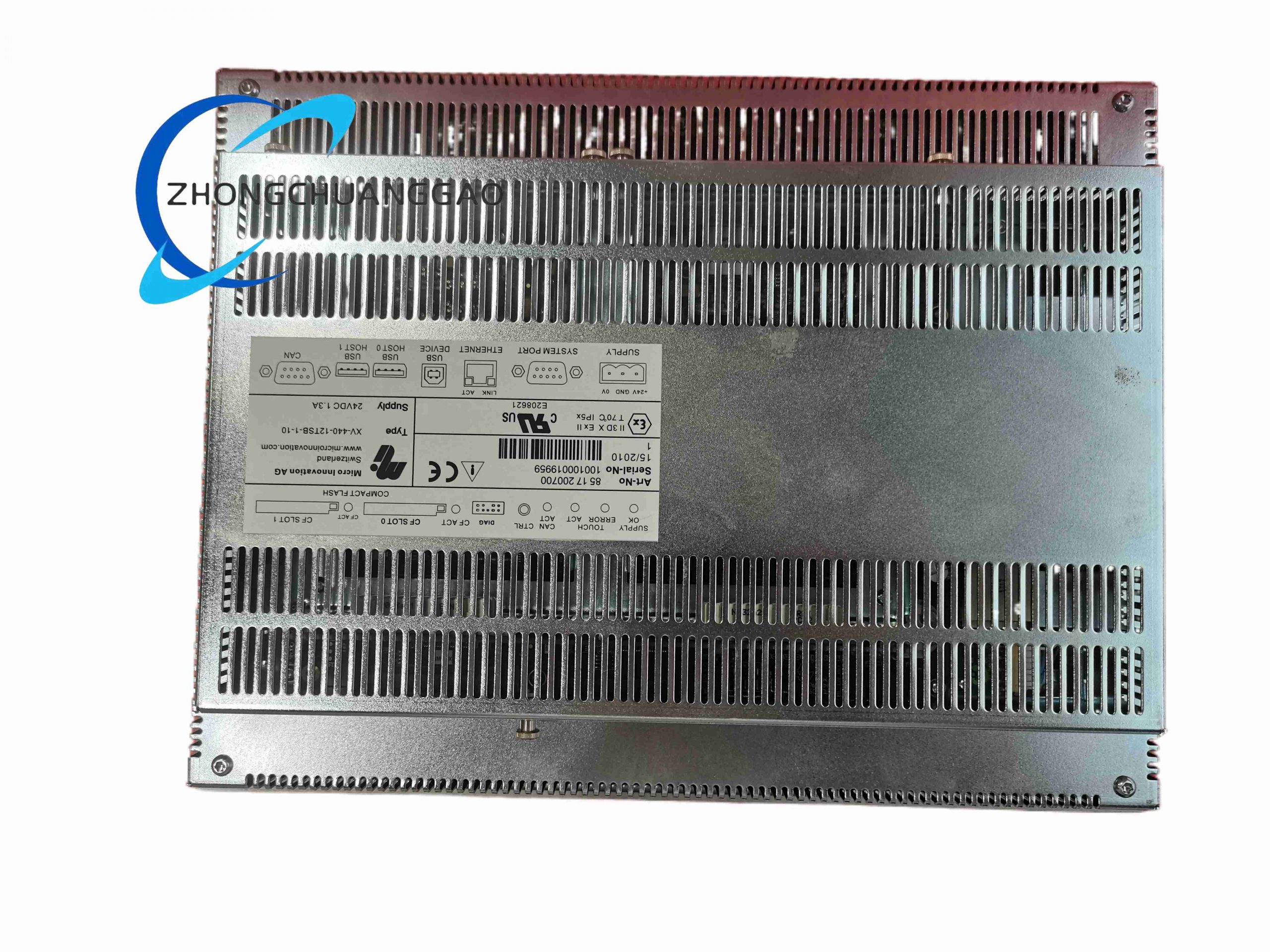

Structural Features: Cabinet panel embedded installation; sealed front panel design; rear side equipped with terminal and communication sockets.

Working Principle: Receive real-time data from field automation controllers, render graphical operation screen, receive touch operation instructions, transmit commands to field control equipment, store historical alarm and production data locally.

Installation Requirements: Meet cabinet panel cutout dimension; reserve heat dissipation space; power supply must use isolated 24V DC industrial power supply.

Usage Notes: Prevent sharp objects scratching touch glass; avoid direct strong sunlight irradiation; regular inspection of front sealing rubber strip to maintain IP65 protection; do not hot swap communication ports under power-on state.
