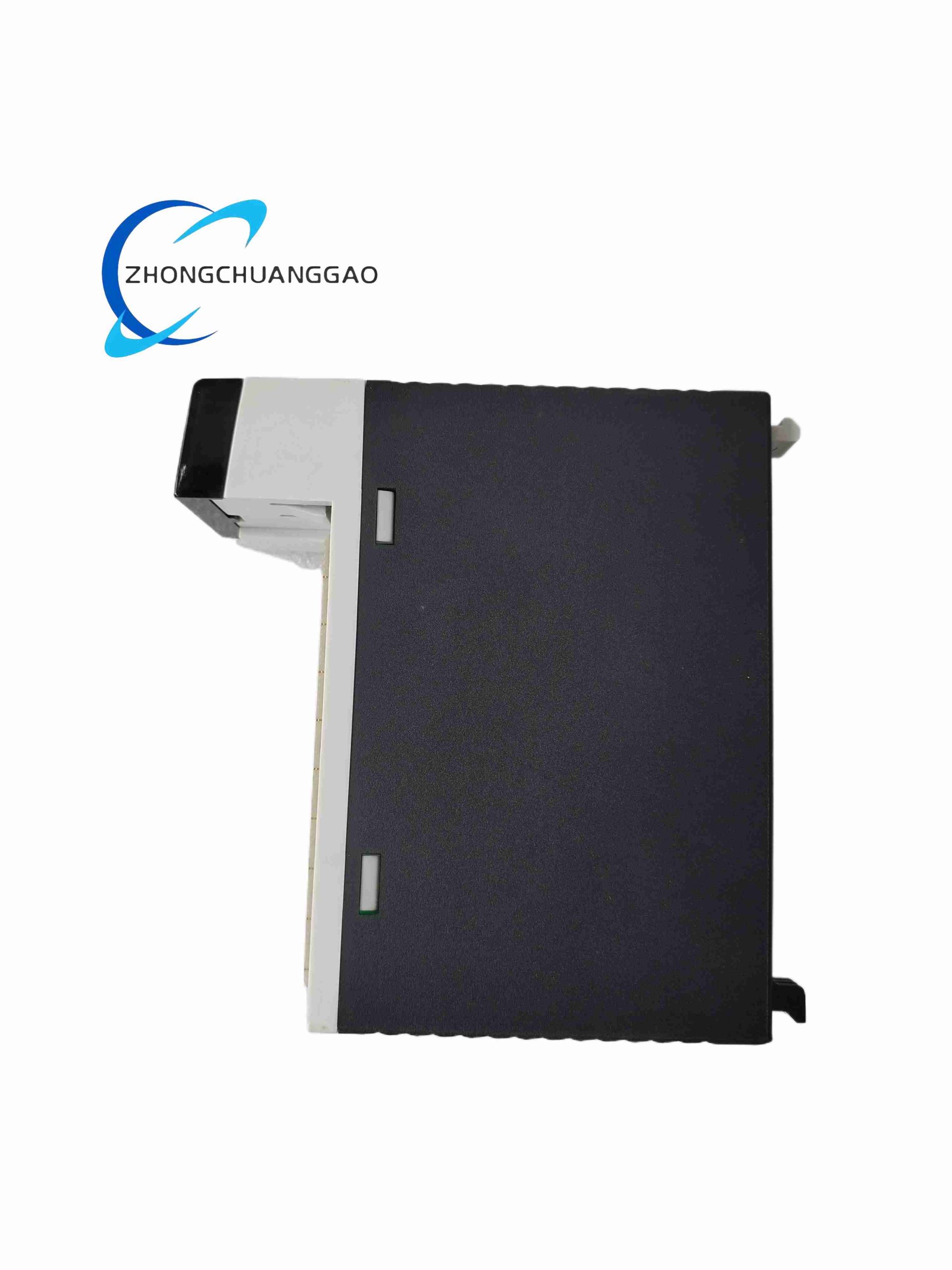

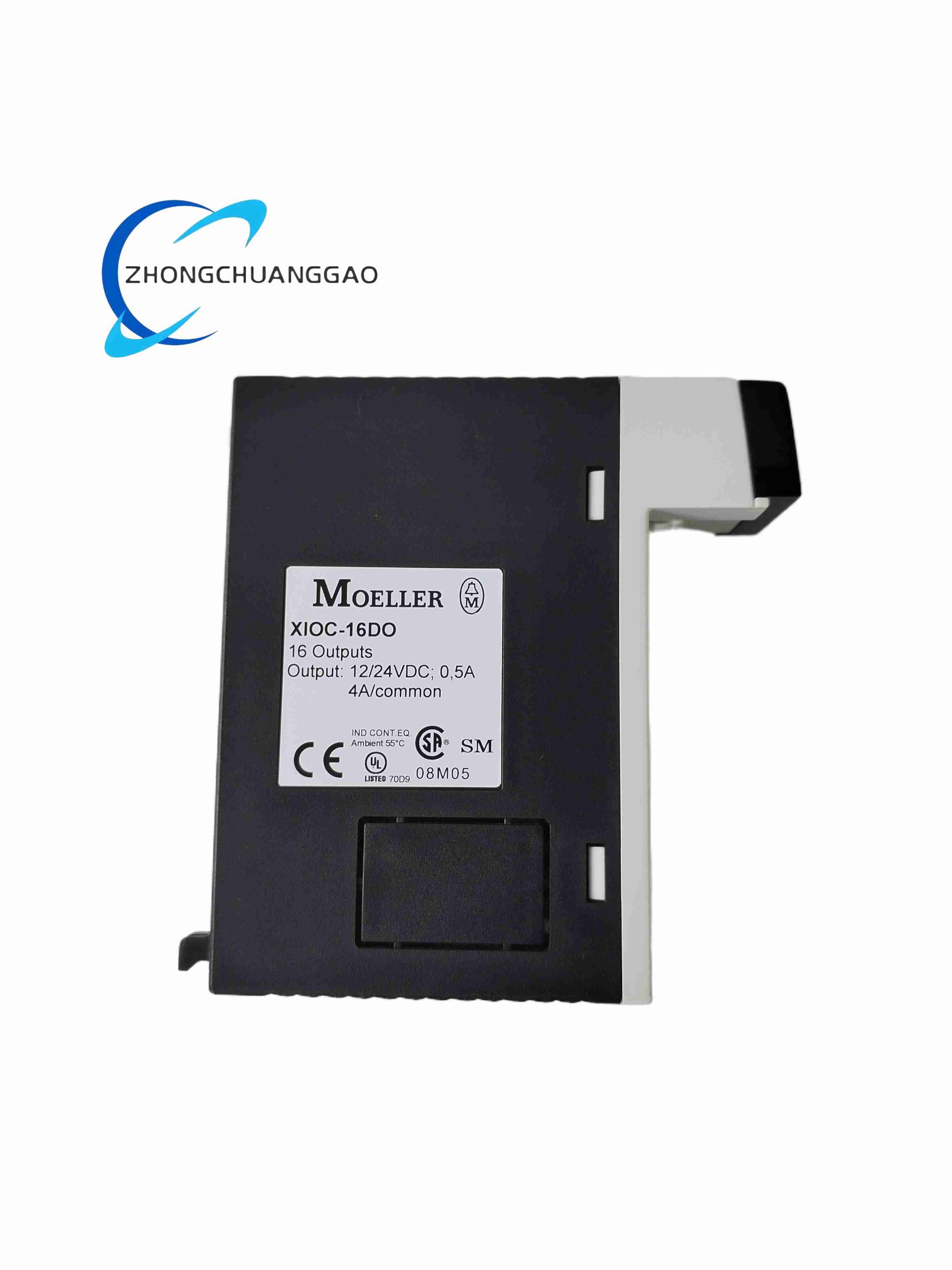

Eaton XIOC-16DO

Product Name:​ XIOC 16-Channel Digital Output Module (for Eaton XC100 / XC200 PLC)
Overview:​ Companion 16-channel transistor output module for Eaton XC-series PLC. Provides 24 V DC solid-state outputs for driving contactors, pilot lights, solenoid valves, etc.
Category:
Description
Technical Specifications:
  • Outputs:​ 16 × 24 V DC semiconductor outputs (typically PNP source type)
  • Max Load:​ 0.5 A per channel; total module current limited (~4 A)
  • Protection:​ Short-circuit and overload protection per group; thermal shutdown
  • Isolation:​ Output ↔ system bus (optocoupler)
  • Indicators:​ Power LED + per-channel output LED
  • Supply:​ 24 V DC load supply (separate from logic supply possible)
  • Connection:​ Plug-in terminal block
  • Dimensions / Environment:​ Same as XIOC-16DI (~100 × 95 × 30 mm), 0–55 °C
  • Certification:​ CE, UL 508, CSA, IEC 61131-2
    Installation Note:​ Use free-wheeling diode on inductive DC loads; observe total current derating when all outputs ON simultaneously.
