Eaton MP3010

Product Name​
MPrelay MP-3000 Motor Protection Relay
Product Introduction​
Eaton MP3010 is a fixed-case motor protection relay from the MP-3000 series. It provides overload, short-circuit, ground-fault, jam, underload, phase-unbalance, and start-control functions for AC motors in industrial power and process systems.
Category:
Description
Technical Specifications​
Catalog product: Eaton MPrelay, MP-3000 series
Model: MP3010
Phase current input: 5 A nominal through current transformer
Current transformer rating: continuous 2 × rated current, 50 × rated current for 1 second
Voltage sensing inputs: 0 in this configuration
Analog output: 1
Control power: 120 V AC standard; 240 V AC available in MP-3000 platform
Control power range: 120 V AC 90–132 V, 240 V AC 180–264 V
Frequency: 50/60 Hz, 57–63 Hz or 47–53 Hz according to setting
Power consumption: 24 VA maximum control power
Communication: RS232
Case type: fixed case
Protection functions: overload with I²t, instantaneous overcurrent 300–1600 percent FLA, jam 100–1200 percent FLA, underload 6–90 percent FLA, phase unbalance 4–40 percent, ground fault 2–55 percent of CT primary, start-number and start-time control
RTD interface: supported with optional RTD module using 10 Ω copper, 100/120 Ω nickel, or 100 Ω platinum
Dimensions: 3.7 in depth, 6.72 in width, 10.25 in height
Weight: 5.75 lb
Certifications: UL Recognized, cUL Listed, CSA Recognized
Functional Features​
Adjustable thermal model, instantaneous and timed fault tripping, ground-fault discrimination, motor start profiling, RTD thermal sensing extension, event and alarm reporting through relay outputs and RS232.
Working Principle​
Current transformers supply proportional current to the relay. The processor calculates thermal image, compares measured values with preset protection curves, and issues trip or alarm commands. RTD inputs provide winding temperature supervision when the RTD option is installed.
Application Scenarios​
Motor control centers, pump drives, fan systems, compressor motors, conveyor drives, and industrial process motors requiring integrated protective relaying.
Structural Characteristics​

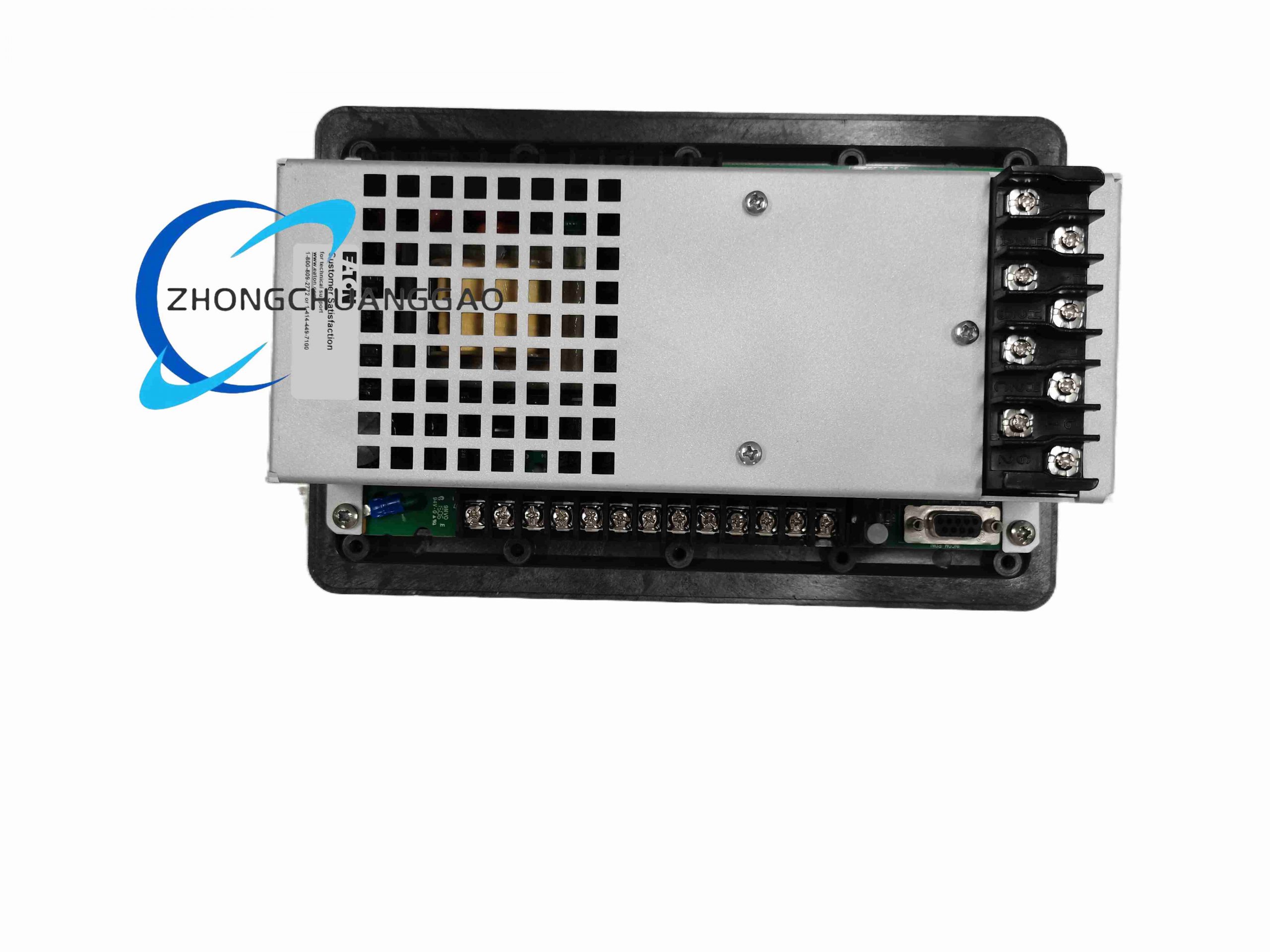

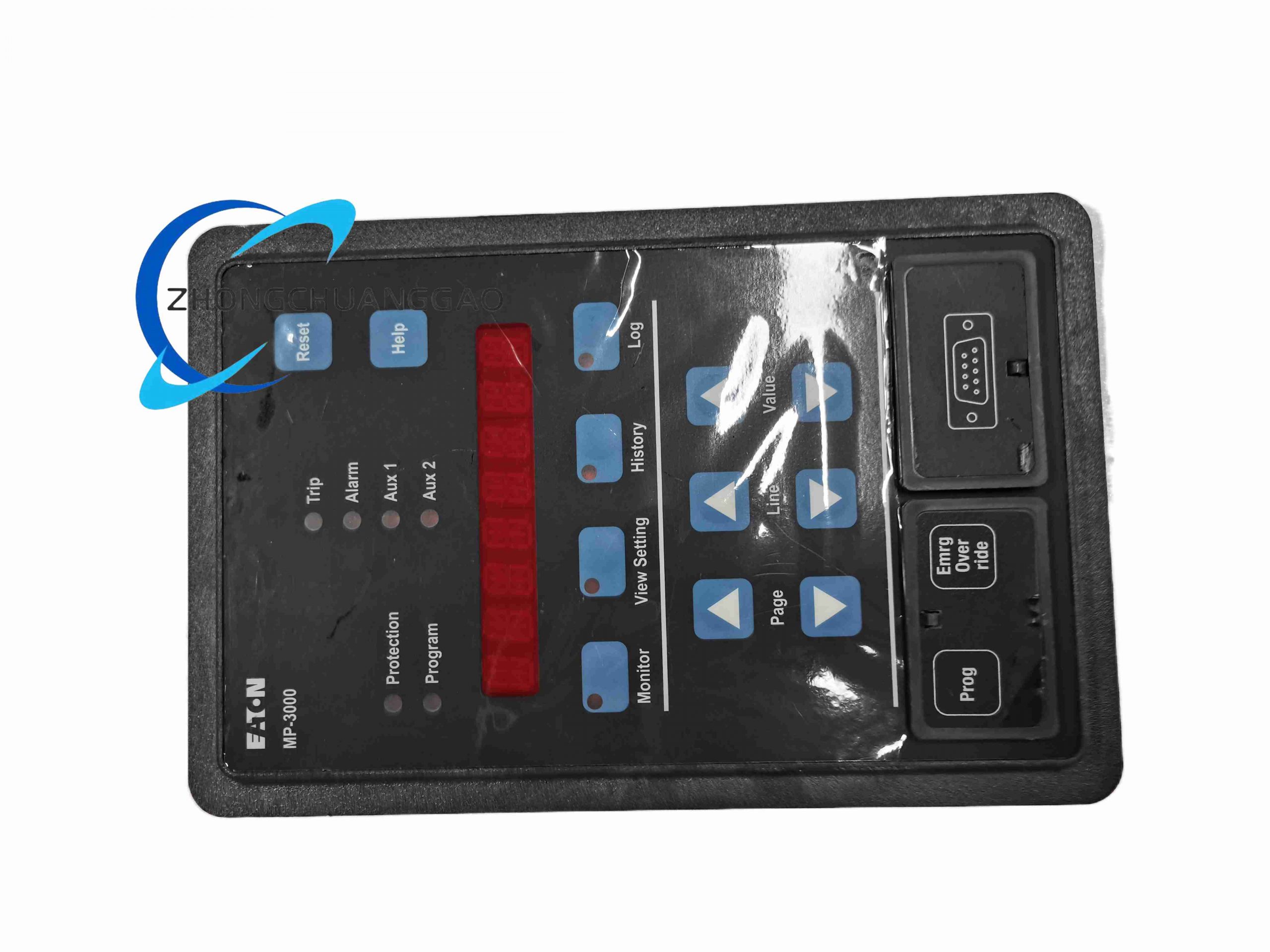

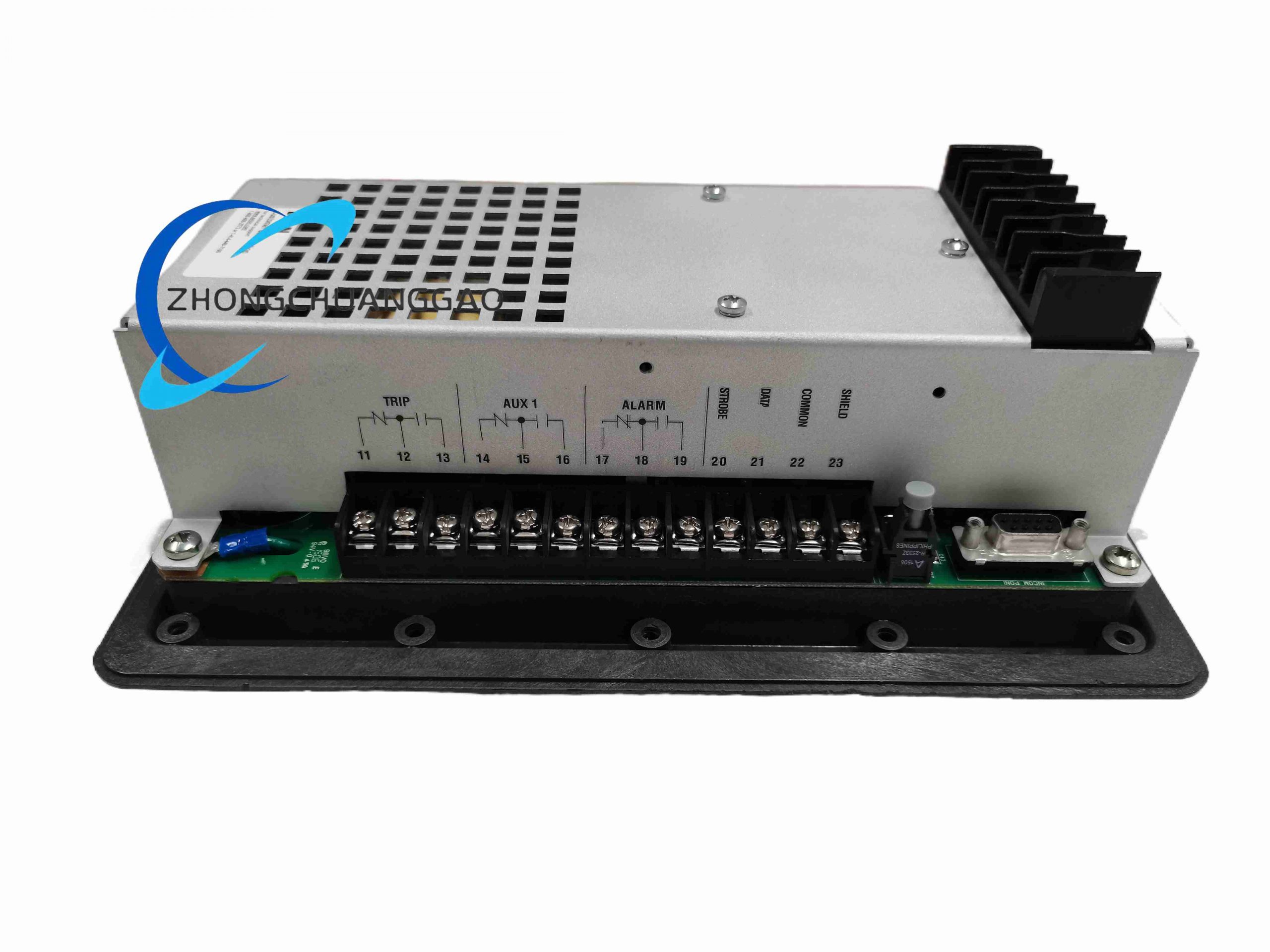

Fixed industrial relay case, current-input terminals, control-power terminals, RS232 configuration port, protection output contacts, optional RTD module port, DIN or panel mounting format.
Installation Requirements​
Install in a panel or motor control enclosure with adequate ventilation. Connect CT secondary conductors with proper polarity and never leave CT secondaries open. Supply 120 V AC control power according to nameplate. Use RS232 with Eaton configuration software for setting protection parameters.
Usage Precautions​
Verify CT ratio before energizing. Test ground-fault function with insulated test source. Set instantaneous, jam, and unbalance values according to motor nameplate. Lock out control power before wiring. Replace RTD and communication modules only with compatible Eaton MP-3000 accessories.
