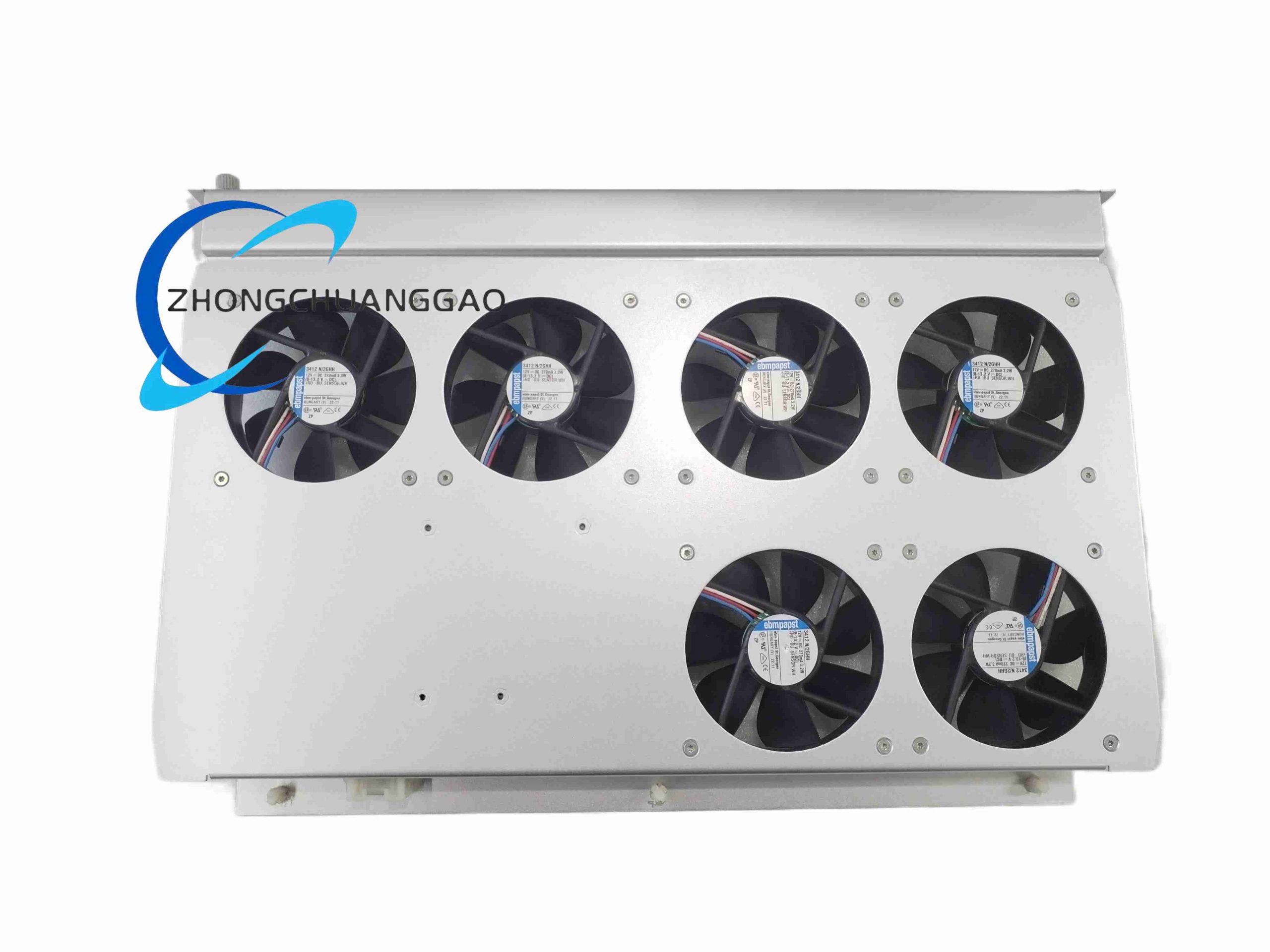

CCC FAN-10-2

Product Name: Industrial Control Cabinet Cooling Fan Module
Product Introduction: The CCC FAN-10-2 is an industrial-grade axial cooling fan assembly designed for forced-air ventilation of electrical enclosures containing PLCs, DCS, drives, and power electronics.
Category:
Description
Technical Specifications:
  • Model: FAN-10-2
  • Brand: CCC (Control Cabinet Cooling series)
  • Type: Axial Flow Fan / Fan Tray
  • Voltage Options: 24V DC, 110V AC, 220-230V AC​ (50/60Hz)
  • Current: Approx. 0.15A – 0.20A​ (AC 230V variant)
  • Power: 30W – 40W​ (AC variant); ~8-12W​ (DC variant)
  • Air Flow: 85 CFM​ (approx. 144 m³/h) for single unit; tray variants 60 CFM per fan​ (6-fan tray 360 CFM)
  • Fan Size: 120mm​ × 120mm​ × 38mm​ (single); Tray 419mm​ × 38mm​ × 261mm​
  • Speed: 2500 – 3000 RPM​
  • Noise: <45 dB(A)​
  • Bearing: Ball Bearing​ (ABEC 3, double shielded)
  • MTBF: 60,000 hours​
  • Protection: IP20​ (module), IP54​ (filtered variant optional)
  • Temp Range: -20°C​ to +70°C​
  • Material: Frame Aluminum die-cast / ABS; Blades PBT​ (glass-reinforced)
Functional Features:
  • Thermal Management: Maintains internal cabinet temp 15-20°C​ above ambient.
  • Filter Option: Removable filter mat (G3/G4) on intake side (IP54 version).
  • Mounting: Standard 105mm × 105mm​ hole pattern (120mm fan).
Performance Parameters:
  • Static Pressure: Approx 2.5 mmH₂O​ (0.25 inH₂O)
  • Life: 60,000 hrs​ at 40°C​ (ball bearing)
Material Composition:
  • Impeller: PBT​ (Polybutylene Terephthalate) glass-filled for strength.
  • Frame: Die-cast Aluminum​ (paint coated) or Flame-retardant ABS.
  • Hardware: Zinc-plated steel screws.
Structural Features:
  • Form: Square frame with 4 corner mounting holes.
  • Guard: Metal wire guard (intake/exhaust side).
  • Connection: 2-wire​ (AC) or 3-wire​ (DC with tach) terminal block.
Working Principle:
An electric motor drives the axial impeller; blades accelerate air parallel to shaft axis. Pressure differential draws hot air out (or pulls cool air in) through enclosure vents, creating convective exchange. Ball bearings minimize friction for continuous duty.
Advantages:
  • Standardized 120mm​ form factor ensures drop-in replacement.
  • Ball bearing construction outperforms sleeve bearing in vertical mount/high temp.
  • Low acoustic profile for operator proximity areas.
Applicable Industries:
Manufacturing (PLC cabinets), Power conversion stations, Rail signaling housings, Data acquisition enclosures.
Model Series: CCC FAN-10-x series (various sizes/voltages).
Installation Requirements:
  • Mount with arrow indicating airflow direction matching cabinet exhaust/intake design.
  • Use vibration damping grommets to reduce structure-borne noise.
  • Provide unobstructed inlet/outlet clearance (≥50mm).
Usage Precautions:
  • Clean/replace filter mat every 3-6 months​ in dusty environments.
  • Verify voltage selector (if AC/DC dual) before energizing to prevent burnout.
  • Do not operate without guard; rotating blades present laceration hazard.
