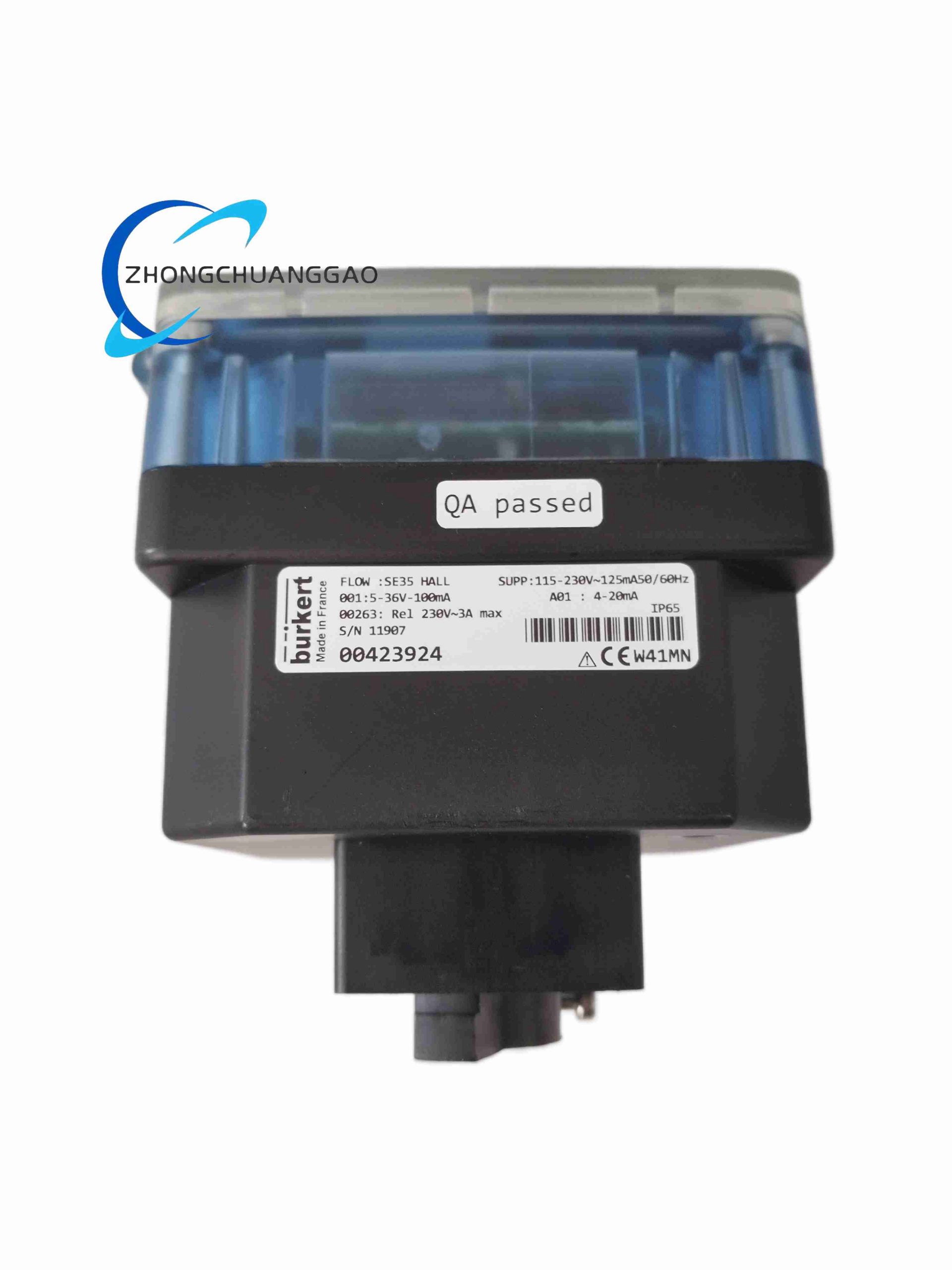

Bürkert SE35 00423924 - Image 1

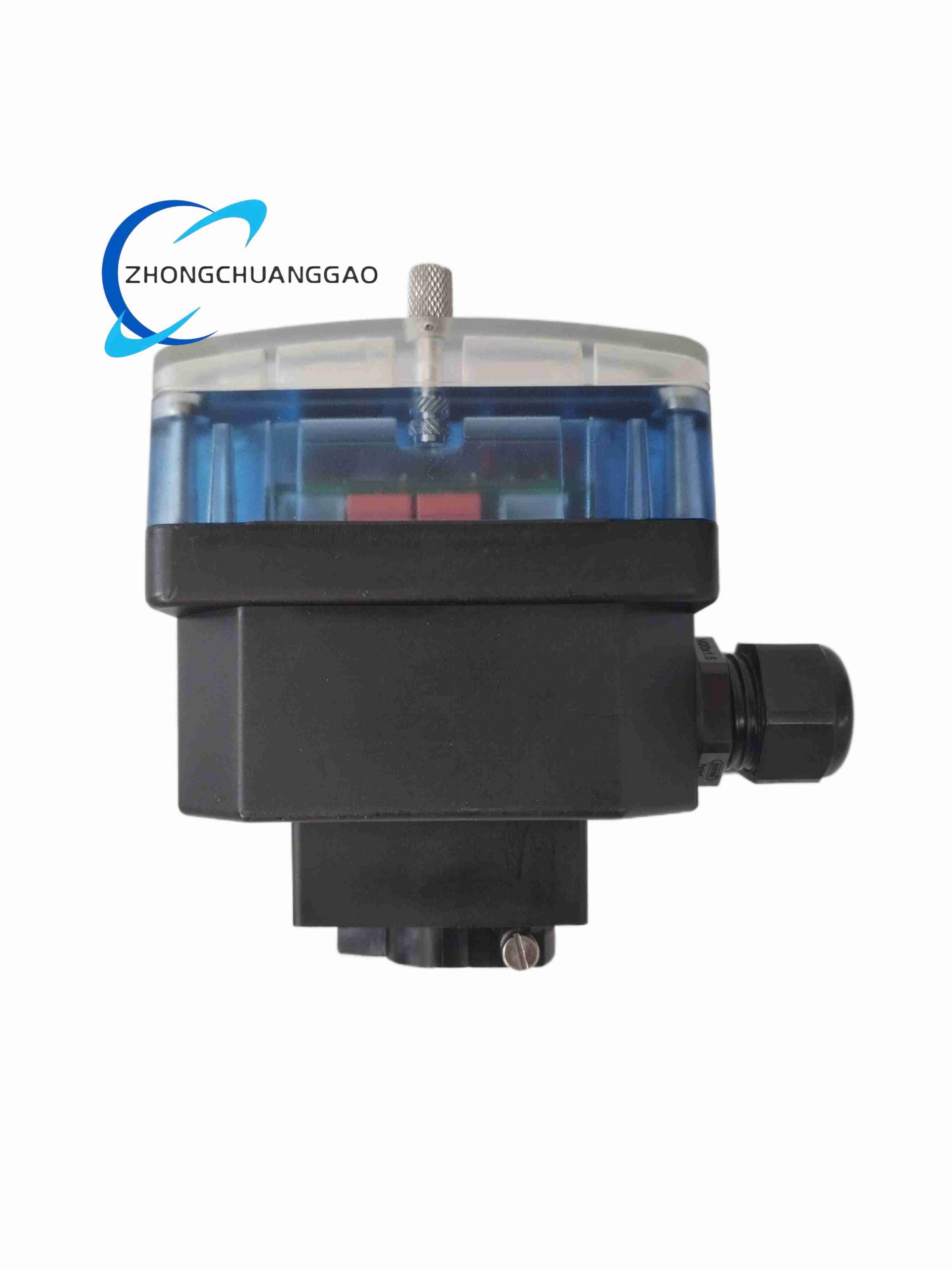

Bürkert SE35 00423924 - Image 2

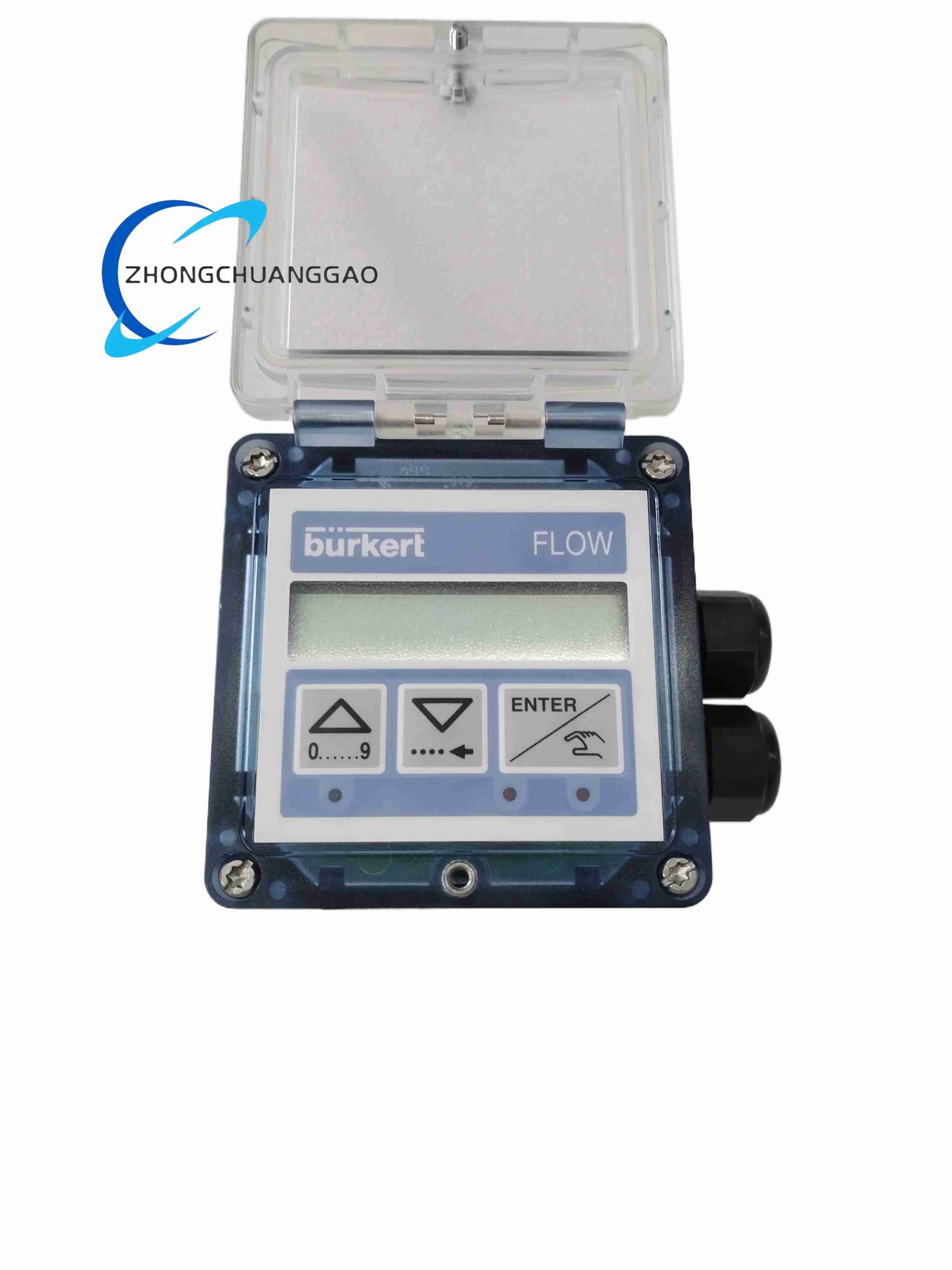

Bürkert SE35 00423924 - Image 3
Click to enlarge
Bürkert SE35 00423924
Bürkert SE35 00423924 - Image 2
Bürkert SE35 00423924 - Image 3
Yokogawa SCP451-51
Yokogawa SCP451-51
Back to products
Emerson SE4001S2T2B1
Emerson SE4001S2T2B1

Bürkert SE35 00423924

Product Introduction:​
The SE35 is a snap-on electronic display/transmitter module that mounts onto a Bürkert S030 paddle-wheel sensor housing to form the Type 8035 flowmeter or batch controller. It converts the frequency signal from the turbine sensor into a scalable analog (4–20 mA) and/or pulse output, and displays instantaneous flow rate and totalized volume on a local LCD.
Category:
Description
Key Features:
  • Large backlit LCD showing flow rate + two totalizers (resettable daily / non-resettable grand)
  • Teach-in calibration via keypad (K-factor entry)
  • NPN/PNP pulse output and 4–20 mA analog output
  • Optional relay outputs for batch control or alarm (depending on exact SE35 variant; 00423924 typically includes display + 4–20 mA + pulse)
  • Compatible with S030 sensors in DN06–DN65
Technical Specifications (SE35 + S030 system):
  • Supply Voltage:​ 12–36 VDC (loop-powered 4–20 mA option available on some variants; 00423924 typically 24 VDC)
  • Analog Output:​ 4–20 mA, proportional to flow (2-wire loop or 3-wire isolated — variant dependent)
  • Pulse Output:​ NPN or PNP open-collector, scalable
  • Accuracy:​ ≤ ±(0.5 % FS + 2.5 % reading)
  • Repeatability:​ ≤ ±0.4 % of reading
  • Flow Range (system):​ 0.3–10 m/s (depends on pipe size / S030 orifice)
  • Media Temperature:​ 0 to +100 °C (with suitable S030 body)
  • Ambient Temp.:​ 0 to +60 °C
  • Electrical Connection:​ DIN EN 175301-803(Form A / PG9) cable plug
  • Protection Rating:​ IP65 when plug properly connected
  • Display:​ 6-digit LCD with flow unit, totalizer digits
  • Material (module):​ Polyamide / PC housing; S030 wetted parts SS316L / PVDF / PP / PVC / brass per selection
Applications:​ Water treatment dosing, chemical batching, CIP (Clean-in-Place) flow verification, beverage & food liquid monitoring, cooling-water flow supervision.
Installation Notes:​ Match K-factor of the S030 paddle-wheel sensor exactly during programming. Use shielded cable for 4–20 mA run; ground shield at one end only (supply side). Do not expose electronic module to direct wash-down beyond IP65 rating unless protective cover is fitted.
