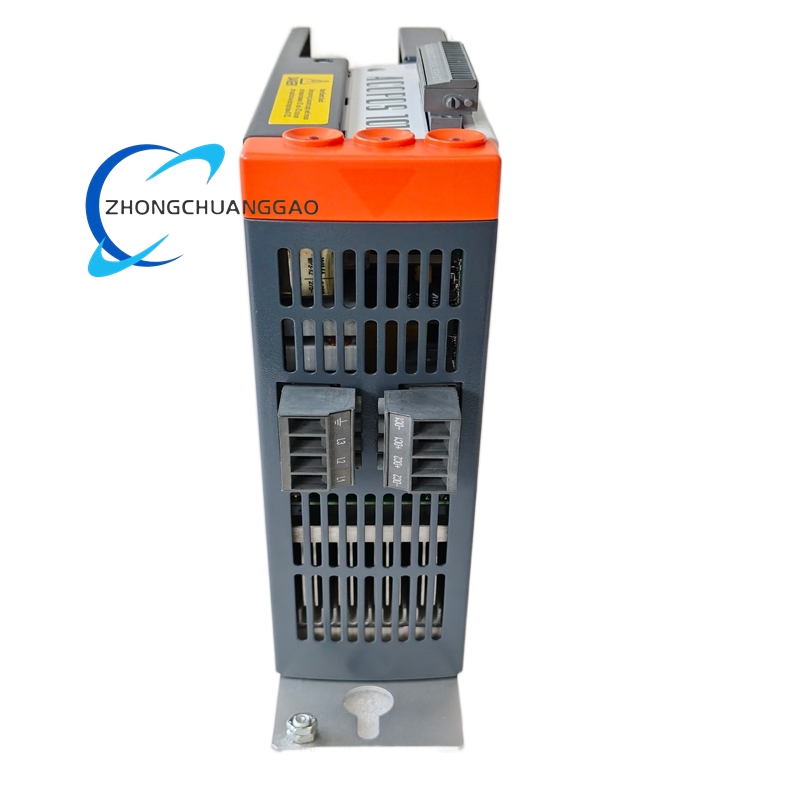

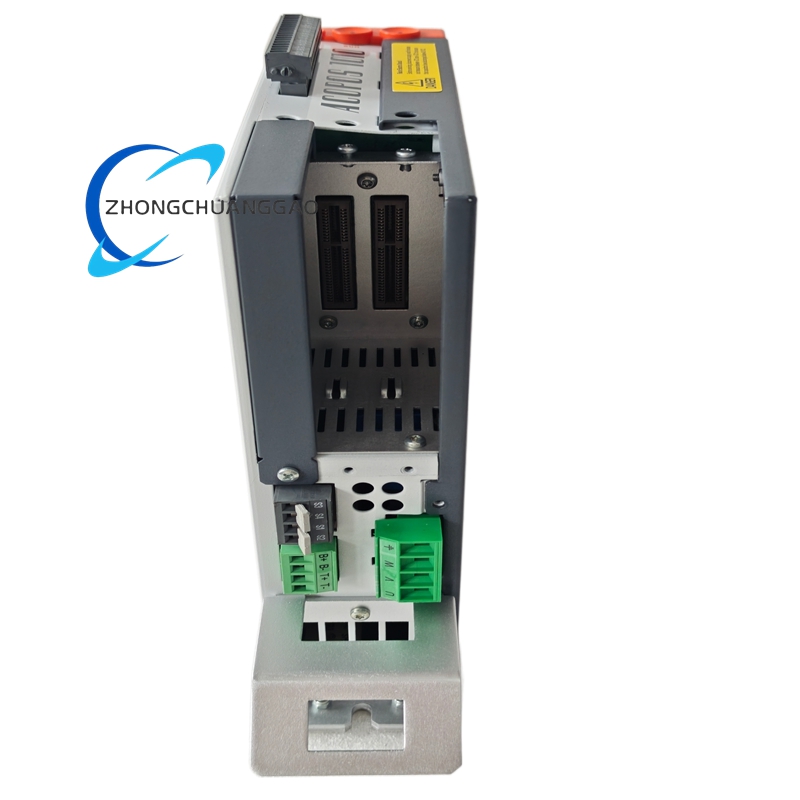

B&R 8V1016.00-2

Technical Specifications:

Functional Features:

• Sercos III real-time communication for deterministic motion control
• Automatic motor identification via electronic datasheet (EDS)
• Integrated safe torque off (STO) per IEC 61800-5-2
• Electronic gear function for synchronization of multiple axes
• Cam profile function for complex motion trajectories
• B&R SafeMOTION safety function block integrated

Performance Parameters:

• Positioning Accuracy: ±1 encoder count (with interpolation)
• Velocity Ripple: < 0.5%
• Current Control Bandwidth: 8 kHz
• Brake Chopper: Integrated, 2 kW peak
• Regenerative Energy: Up to 100% rated power

Material Composition:

• Housing: Aluminum alloy extrusion, anodized
• Power Stage: IGBT modules (Infineon FF300R12KT4 or equivalent)
• PCB: FR-4, 4-layer, conformal coated
• Connectors: Spring-clamp terminals for power; M12 for encoder; RJ45 for communication
• Heat Sink: Aluminum finned heat sink, thermal paste interface

Structural Features:

• DIN rail or panel mounting (clip-on brackets included)
• Front-facing M12 encoder connector
• Top-facing RJ45 communication port
• Bottom-facing spring-clamp power terminals
• LED status indicators: Power, Ready, Fault

Working Principle:
The drive rectifies 230 V AC input to a 325 V DC bus. The IGBT inverter switches at 8 kHz to synthesize three-phase sinusoidal currents for the servo motor. The current loop (8 kHz) controls motor torque, the velocity loop (1 kHz) controls speed, and the position loop (1 kHz) controls position. The encoder feedback closes all three loops. Sercos III or EtherCAT provides the trajectory setpoints from the B&R controller.

Advantages & Highlights:

• Compact 100×100×55 mm form factor
• 1 kHz position loop for high-precision positioning
• Multi-protocol support — Sercos III, EtherCAT, Powerlink, PROFINET
• Integrated STO safety function — no external safety relay needed
• Auto-tuning — drive identifies motor parameters automatically

Applicable Industries:

• Machine tools (lathes, mills)
• Packaging machines
• Printing presses
• Textile machines
• Conveyor systems
• Assembly robots

Installation Requirements:

• Mount vertically or horizontally with ≥ 10 mm clearance on all sides
• Use 2.5 mm² copper cable for power input (max 3 m)
• Use shielded twisted-pair for encoder cable (max 10 m)
• Ground the drive chassis to protective earth (PE)
• Ambient temperature: 0°C to +45°C (derate 1%/°C above 40°C)

Usage Precautions:

• Do not exceed 6 A continuous current
• Ensure input fuse rating: 10 A slow-blow
• Do not operate with cover removed (live parts exposed)
• Update firmware only via B&R Automation Studio
• Check DC bus capacitor voltage before servicing (wait 5 min after power-off)
