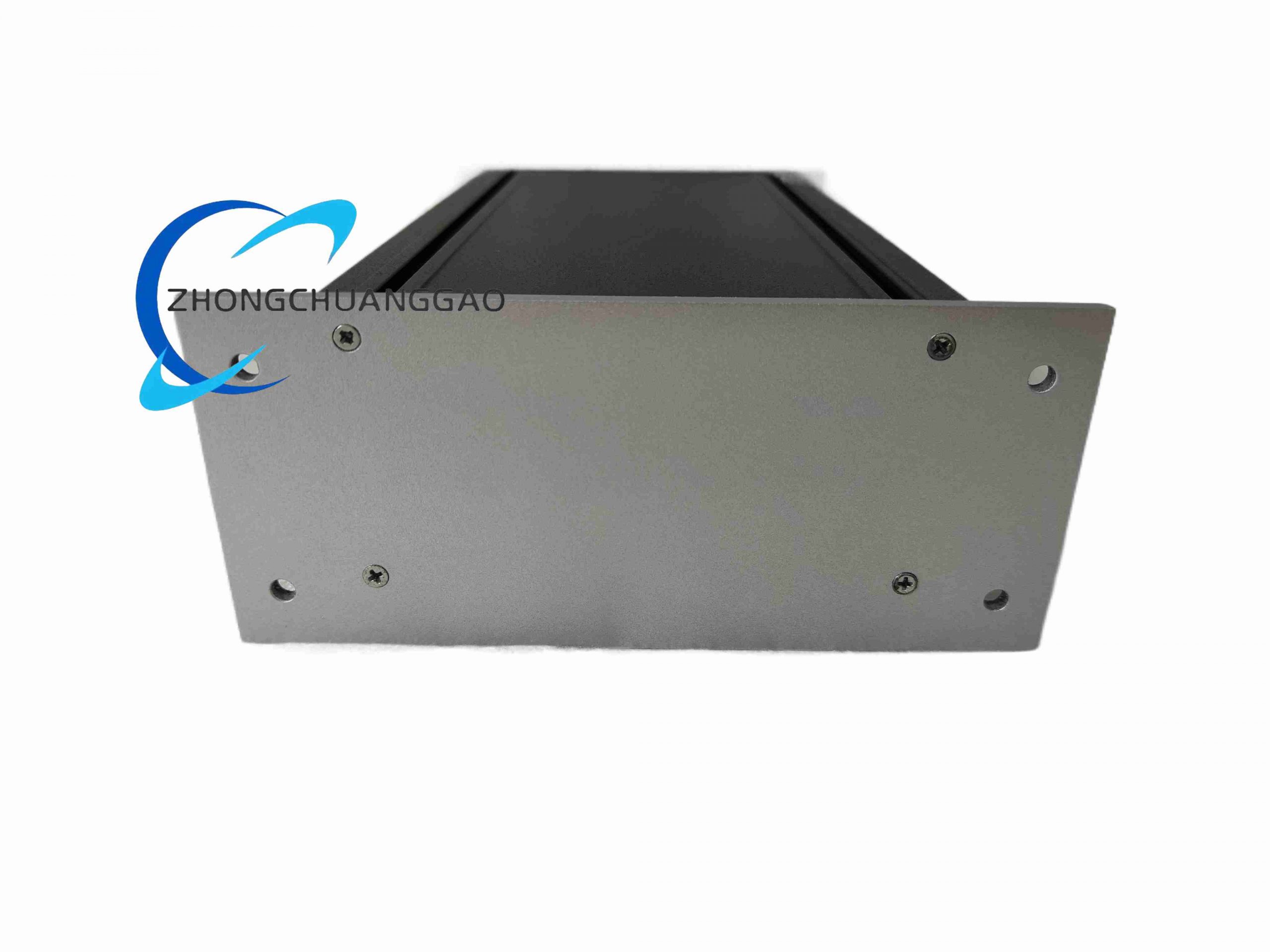

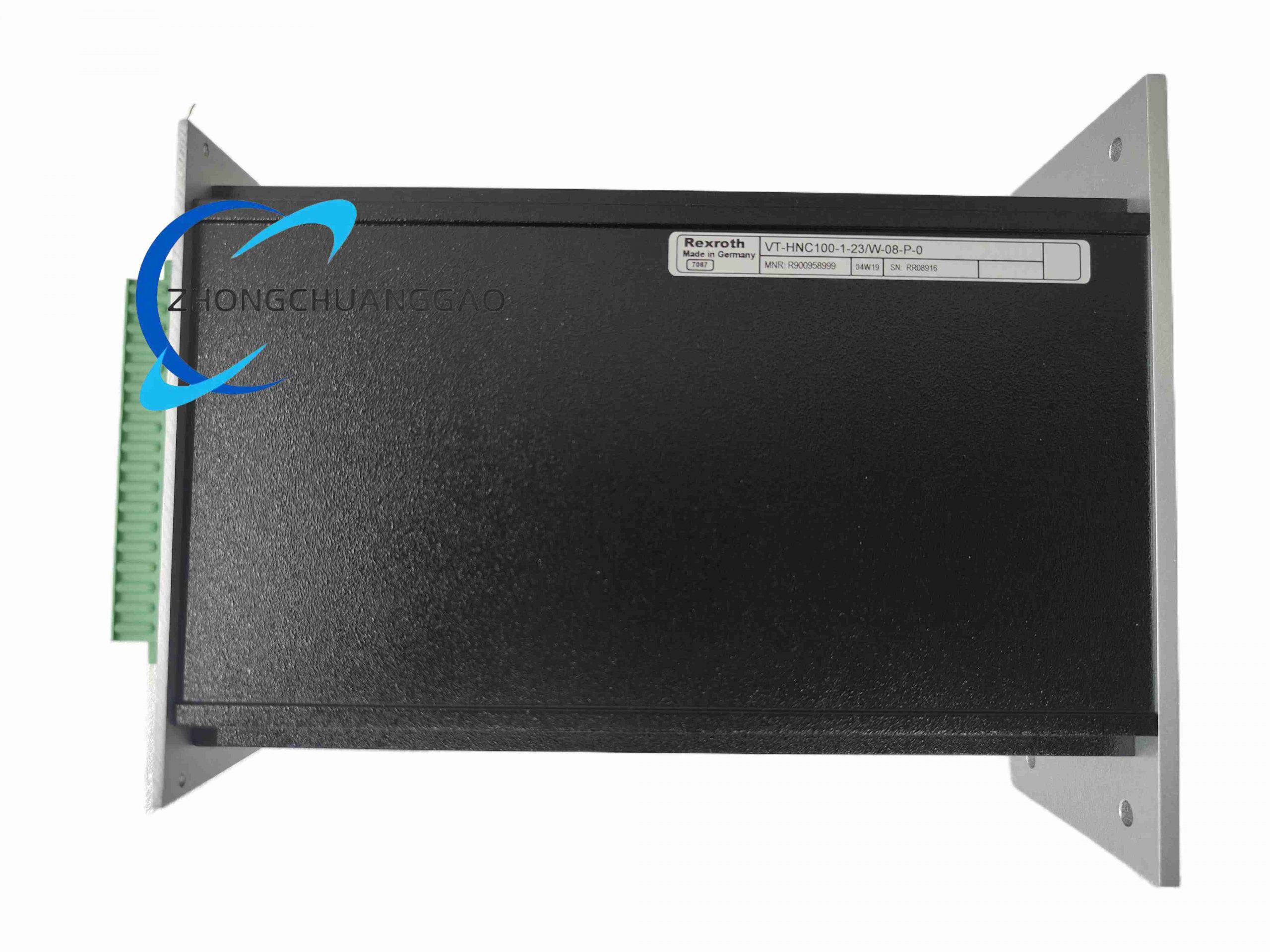

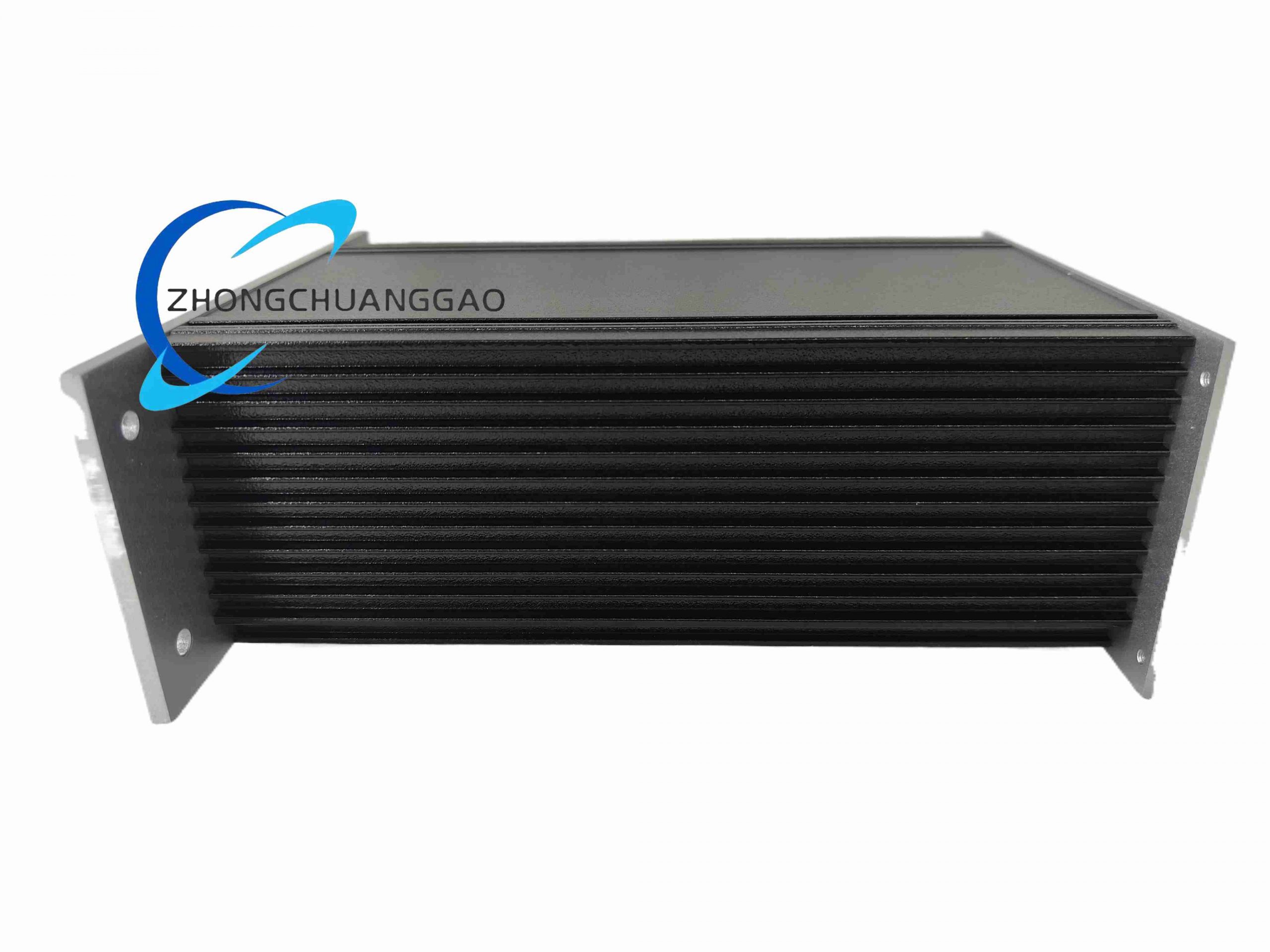

Bosch Rexroth VT-HNC100-1-23W-08-P-0 - Image 1
Bosch Rexroth VT-HNC100-1-23W-08-P-0 - Image 2
Bosch Rexroth VT-HNC100-1-23W-08-P-0 - Image 3
Click to enlarge
Bosch Rexroth VT-HNC100-1-23W-08-P-0
Bosch Rexroth VT-HNC100-1-23W-08-P-0 - Image 2
Bosch Rexroth VT-HNC100-1-23W-08-P-0 - Image 3
Bosch Rexroth VT-11034-11
Bosch Rexroth VT-11034-11
Back to products
TEWS Technologies TVME200-10
TEWS Technologies TVME200-10

Bosch Rexroth VT-HNC100-1-23W-08-P-0

Product Overview
The VT-HNC100 is a programmable digital axis controller for closed-loop position, velocity, or pressure/force control of a single hydraulic axis. It executes NC-style motion programs, reads position feedback (incremental encoder, SSI absolute), and drives a proportional or servo valve via the VT-11034 amplifier or integrated valve drive. Equipped with PROFIBUS DP for integration into higher-level PLC systems.
Category:
Description
Technical Specifications
  • Axes Controlled:​ 1 hydraulic axis (up to 4 axes with multi-controller config)
  • Processor:​ 16/32-bit MC68376 microcontroller
  • Memory:​ 1 MB Flash EPROM, 8 KB EEPROM, 256 KB RAM
  • Position Feedback:​ 2 × incremental encoder (TTL/HTL, up to 1 MHz), 1 × SSI absolute encoder
  • Analog Inputs:​ 4 × ±10 V differential
  • Digital I/O:​ 8 × configurable DI/DO (24 V DC)
  • Fieldbus:​ PROFIBUS DP (12 Mbps max.), optional CANopen / SERCOS depending on variant
  • Control Modes:​ Position, Velocity, Pressure/Force; PID with feed-forward
  • Supply Voltage:​ 18–36 V DC (typical 24 V DC)
  • Cycle Time:​ ≤ 1 ms (control loop)
  • Enclosure / Mounting:​ IP20, DIN rail or wall mount (metal housing ~120 × 80 × 30 mm)
  • Operating Temp.:​ 0 °C to +50 °C
  • Programming:​ PC-based NC language with subroutines, jumps, conditional logic; parameterization via IndraWorks or VT-HNC commissioning software
Applications
Injection molding machines, hydraulic presses, test stands, metal-forming machinery requiring precise synchronized hydraulic motion.
