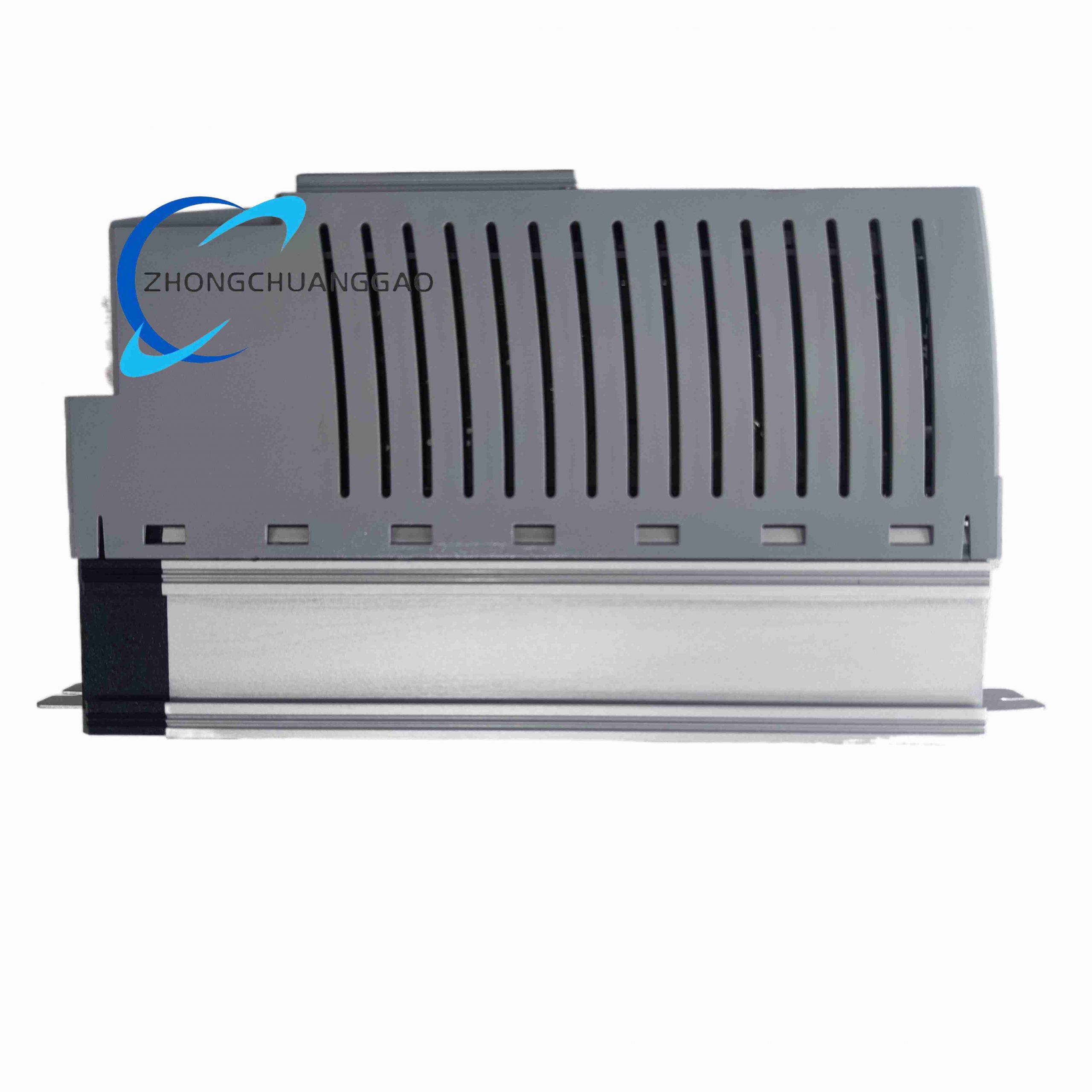

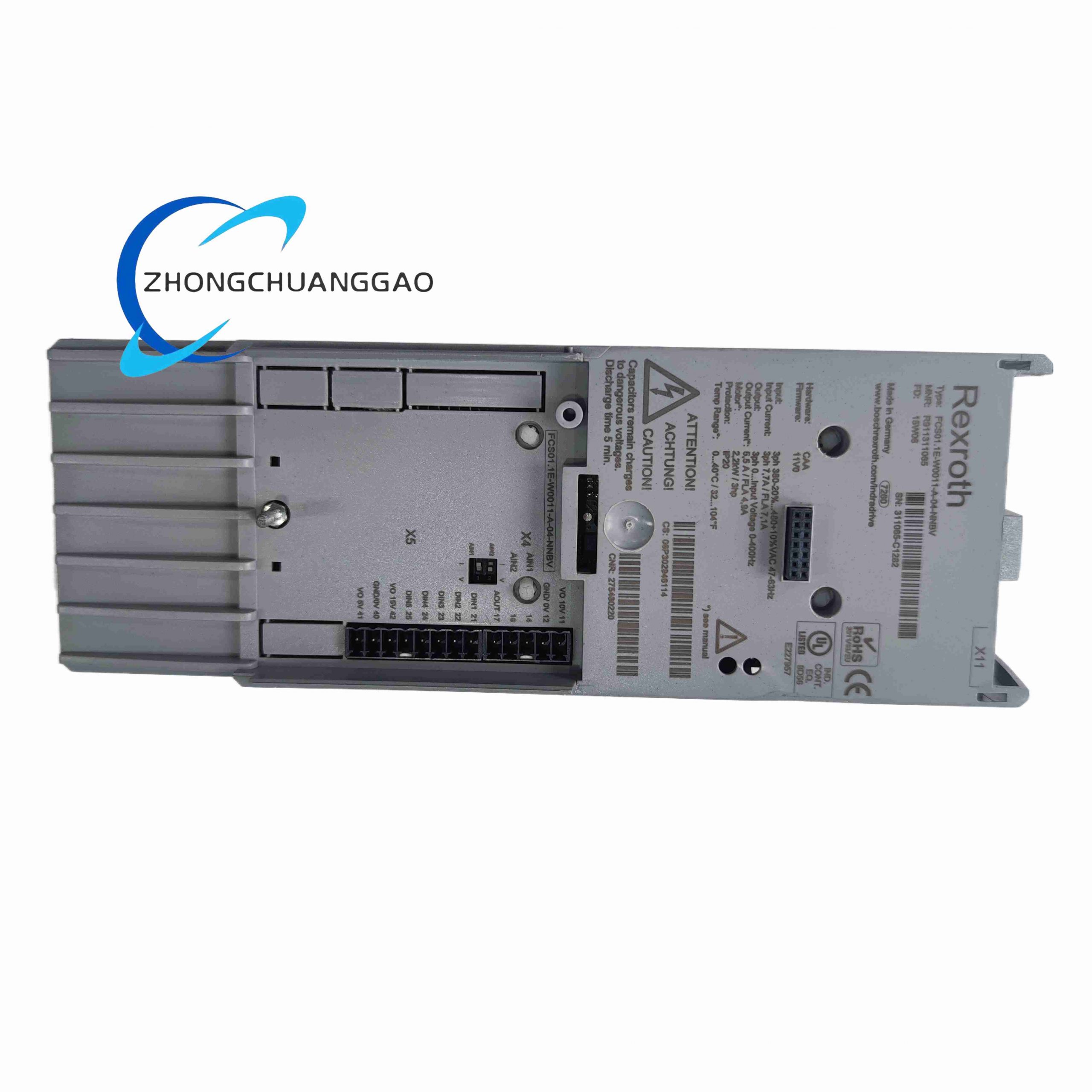

Bosch Rexroth FCS01.1E-W0011-A-04-NNBV R911311065 - Image 1
Bosch Rexroth FCS01.1E-W0011-A-04-NNBV R911311065 - Image 2
Click to enlarge
Bosch Rexroth FCS01.1E-W0011-A-04-NNBV R911311065
Bosch Rexroth FCS01.1E-W0011-A-04-NNBV R911311065 - Image 2
Honeywell FC-RPB2N12
Honeywell FC-RPB2N12
Back to products
Honeywell FC-SAI-1620M
Honeywell FC-SAI-1620M

Bosch Rexroth FCS01.1E-W0011-A-04-NNBV R911311065

Product Name: IndraDrive Fc Frequency Converter / Drive Controller
Product Introduction: The FCS01.1E-W0011-A-04-NNBV is a compact Book-size AC drive controller from Bosch Rexroth’s IndraDrive Fc series, rated for 2.2 kW​ motor control in industrial automation.
Category:
Description
Technical Specifications:
  • Order Number: R911311065
  • Rated Power: 2.2 kW​ (3.0 HP)
  • Input Voltage: 380–480 VAC​ 3-phase (-20%/+10%)
  • Rated Current: 5.5 A​ output
  • Overload: 150%​ for 60s, 200%​ for 3.5s
    Functional Features: Controls speed and torque of 3-phase induction motors; supports V/f​ control and Sensorless Vector​ control; RS232/RS485 communication with Modbus RTU.
    Performance Parameters:
  • Output Freq: 0–400 Hz
  • Switching Freq: 3–16 kHz​ (Std 6 kHz)
  • I/O: 2​ Analog/Digital In, 5​ Digital In, 1​ Analog Out, 2​ Relay Out
  • Ambient Temp: 0°C to 40°C​ (S1), 0°C to 50°C​ (S3)
    Material Composition: Aluminum heatsink housing (Booksize B); PCB with conformal coating; plastic terminal covers; IP20 rated enclosure.
    Structural Characteristics: Dimensions 73 × 153 × 226 mm​ (260mm with bracket); weight 1.8 kg; side-by-side mountable; detachable mounting brackets.
    Working Principle: Rectifies 3-phase AC to DC bus, then inverts to variable frequency/variable voltage AC using PWM switching to regulate motor speed per control algorithm.
    Advantages Highlights: Compact footprint saving panel space; dual control modes for flexibility; integrated braking resistor support; energy-saving common DC bus capability.
    Applicable Industries: Machine Tools, Packaging Machinery, Material Handling, Printing, General Factory Automation.
    Model Series: Bosch Rexroth IndraDrive Fc (FCS01.x).
    Installation Requirements: Mount vertically in control cabinet with 100 mm​ clearance top/bottom; secure with rear brackets; ensure IP20 protection inside cabinet; provide grounding.
    Usage Precautions: Ensure input voltage matches 400V​ class; do not block heatsink airflow; configure motor parameters correctly before start; use external fusing/disconnect; observe 1 µF​ max load capacitance for output filters.
