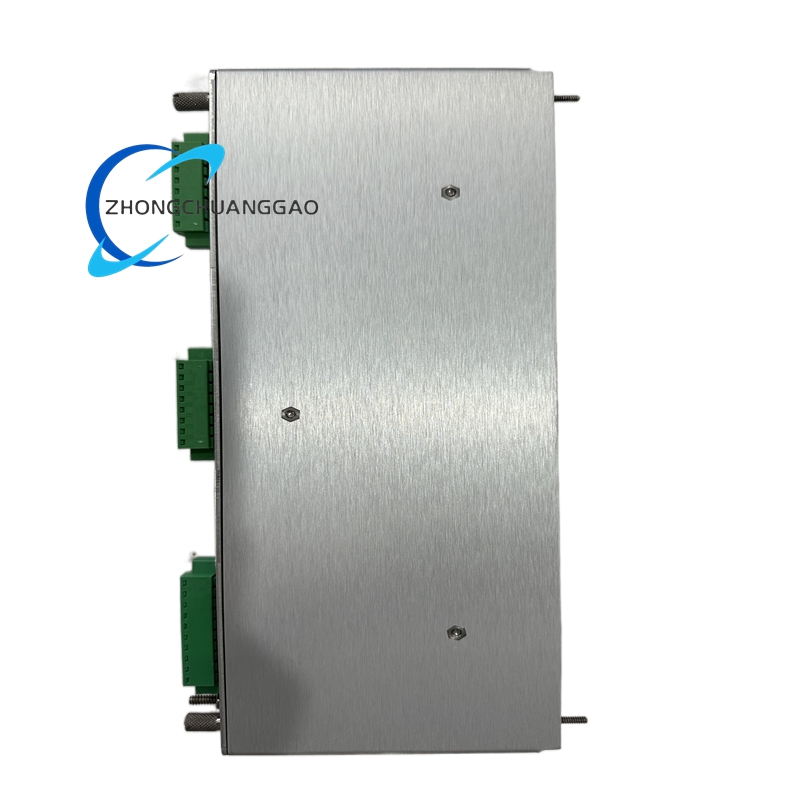

Bently 3500/72 140471-01 Piston Rod Position Monitor I/O Module - Image 1

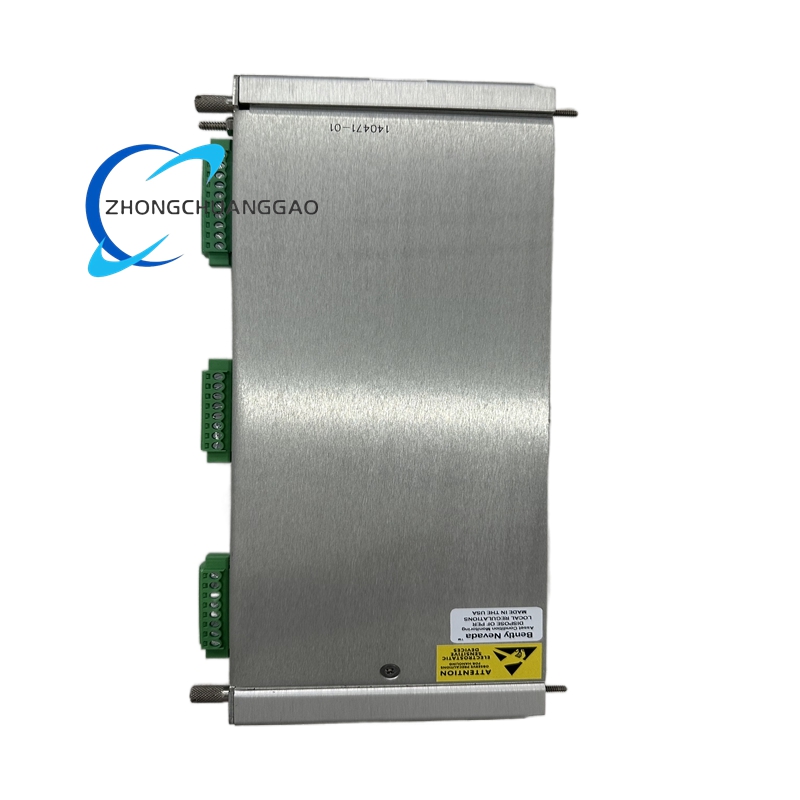

Bently 3500/72 140471-01 Piston Rod Position Monitor I/O Module - Image 2

Bently 3500/72 140471-01 Piston Rod Position Monitor I/O Module

Product Overview
The Bently 3500/72 140471-01 is an input/output (I/O) module designed for the 3500/72M Piston Rod Position Monitor, a key component of the Bently Nevada 3500 series mechanical protection and condition monitoring system. This module facilitates the connection between proximity sensors and the monitoring system, enabling precise measurement and analysis of piston rod position in reciprocating compressors and other critical machinery.

Category: Bently

Description

Technical Specifications

Dimensions:
- I/O Module (without safety barriers): 241.3 mm (H) x 24.4 mm (W) x 99.1 mm (D)
- I/O Module (with safety barriers): 241.3 mm (H) x 24.4 mm (W) x 163.1 mm (D)
Weight:
- I/O Module (without safety barriers): 0.20 kg (0.44 lbs)
- I/O Module (with safety barriers): 0.46 kg (1.01 lbs)
Input Channels: Accepts 1 to 4 proximity probe signals.
Input Impedance: 10 kΩ.
Power Supply: Operates on 24 VDC, supplied by the 3500 system rack.
Operating Temperature: -30°C to +65°C (-22°F to +150°F).
Storage Temperature: -40°C to +85°C (-40°F to +185°F).
Humidity: Up to 95% non-condensing.
Certifications: CSA/NRTL/C for Class I, Division 2, Groups A to D (when used with appropriate I/O modules).

Functional Characteristics

Signal Conditioning: Processes signals from proximity sensors to provide dynamic and static position measurements of the piston rod.
Alarm Functionality: Compares measured values against user-programmable alarm thresholds to trigger alerts for abnormal conditions.
LED Indicators:
- OK LED: Indicates normal operation.
- TX/RX LED: Shows communication activity with other modules in the 3500 rack.
- Bypass LED: Indicates bypass mode activation.
Buffered Sensor Outputs: Each channel features a coaxial connector with short-circuit protection for direct sensor signal access.
Flexible Configuration: Supports programming for various measurement functions, including piston rod position, drop, and supercompressor measurements.
Redundancy Support: Can be integrated into TMR (Triple Modular Redundant) configurations for enhanced system reliability.

Application Scenarios

Reciprocating Compressors: Monitors piston rod position to detect misalignment, wear, or mechanical failures, ensuring safe and efficient operation.
Petrochemical Industry: Provides critical protection for compressors in refineries and gas processing plants, preventing unplanned downtime and costly repairs.
Power Generation: Safeguards gas turbines and other reciprocating machinery in power plants, enhancing operational reliability and reducing maintenance costs.
Marine Engineering: Ensures reliable performance of propulsion systems and auxiliary equipment on ships and offshore platforms by monitoring piston rod position.
Industrial Machinery: Applied to various reciprocating machines in industries such as steel, mining, and pulp and paper, where precise position monitoring is essential for mechanical protection.

Advantages

High Precision: Delivers accurate position measurements, enabling early detection of mechanical issues and preventing catastrophic failures.
Robust Design: Built to withstand harsh industrial environments with wide temperature and humidity tolerances.
Modular Architecture: Easy to install, maintain, and replace, minimizing system downtime and reducing overall lifecycle costs.
Scalability: Supports expansion by adding more modules to meet evolving monitoring needs.
Global Support: Backed by Bently Nevada’s extensive service network and technical expertise, ensuring reliable operation and timely assistance.
