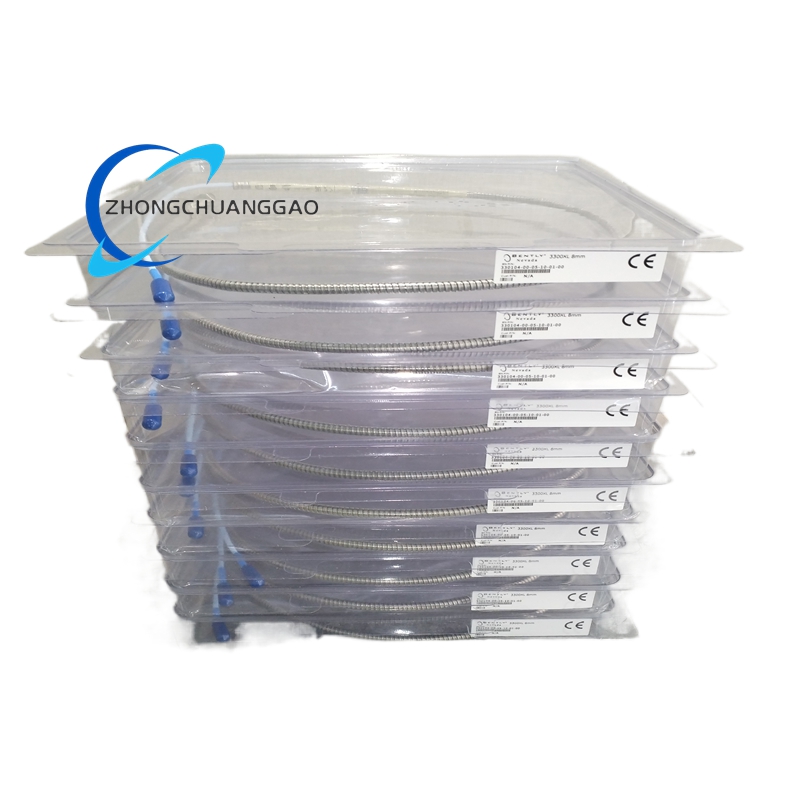

Bently 330104-00-05-10-01-00 Proximity Probe

Technical Specifications

• Measurement Principle: Electrical eddy current (non-contact).
• Linear Range: 2 mm (80 mils).
• Sensitivity: 7.87 V/mm (200 mV/mil).
• Frequency Response: 0 Hz to 10 kHz.
• Operating Temperature:
  • Probe: -51°C to 177°C (-60°F to 350°F).
  • Extension Cable: -51°C to 177°C.
  • Proximitor: -35°C to 85°C (-30°F to 185°F).
• Output Signal: Voltage proportional to gap change.
• Cable Type:铠装 (armored) for durability in harsh environments.
• Mounting: Threaded installation for secure attachment to machinery.
• Certifications: Complies with API 670 standards for mechanical protection systems.

Functional Characteristics

• Non-Contact Measurement: Eliminates wear and tear, ensuring long-term stability and accuracy.
• High Sensitivity: Detects displacements as small as 1 μm (0.04 mils).
• Wide Frequency Range: Captures both low-frequency (e.g., imbalance) and high-frequency (e.g., bearing faults) vibrations.
• Robust Design: Stainless steel housing and armored cable withstand high temperatures, vibrations, and corrosive environments.
• Interchangeability: Probes, extension cables, and proximitors are fully interchangeable without calibration, simplifying maintenance.
• Easy Installation: Threaded mounting and flexible cable routing accommodate various machine configurations.

Applications

• Power Generation: Monitors vibration and displacement in steam and gas turbines, generators, and pumps.
• Oil and Gas: Ensures safe operation of compressors, expanders, and offshore platforms.
• Petrochemicals: Detects early-stage faults in rotating equipment such as reactors and distillation columns.
• Metallurgy: Monitors high-speed motors, fans, and rolling mills to prevent catastrophic failures.
• Marine Engineering: Protects propulsion systems in ships and submarines from excessive vibration.

System Compatibility
The Bently 330104-00-05-10-01-00 probe is designed to work seamlessly with:

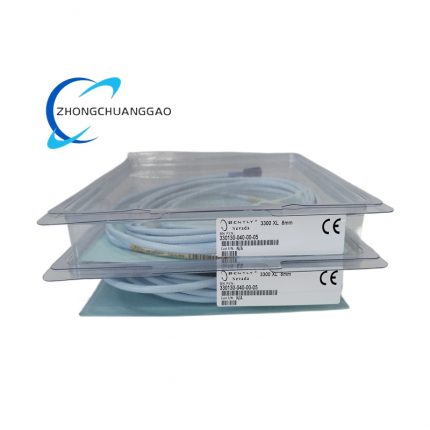

• Extension Cables: 330130 series (e.g., 330130-040-01-00).
• Proximitors: 330180 series (e.g., 330180-51-00).
• Monitoring Systems: Bently Nevada 3500, 1900/65, and 990 series for data acquisition and analysis.

Advantages

• High Reliability: Proven performance in extreme industrial conditions.
• Reduced Downtime: Early fault detection minimizes unplanned maintenance.
• Cost-Effective: Long service life and low maintenance requirements lower total ownership costs.
• Global Support: Backed by Bently Nevada’s extensive service network and technical expertise.
