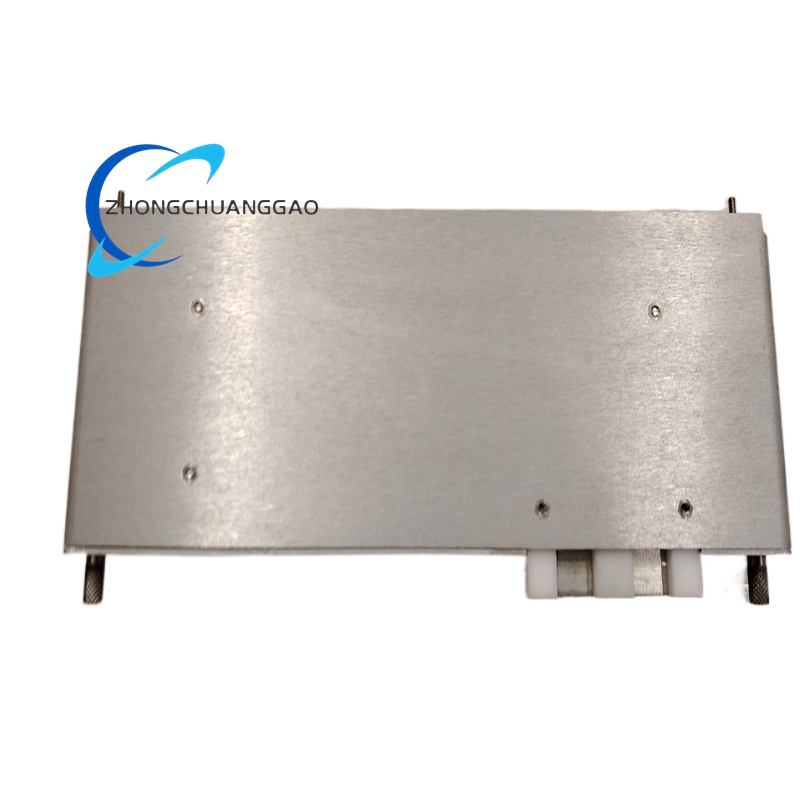

Bently 136719-01 Grounding I/O Module

Technical Specifications

• Input Voltage Range: 12–48 VDC
• Output Voltage: 5 VDC
• Output Current: Maximum 10 A
• Operating Voltage: 24 VDC
• Dimensions: 170 mm × 105 mm × 32 mm
• Weight: Approximately 120 g
• Operating Temperature: -40°C to 82°C
• Storage Temperature: -40°C to 70°C
• Environmental Humidity: 5% to 95% relative humidity (non-condensing)
• Material: Aluminum alloy housing
• Protection Rating: IP67
• Signal Types: Handles both analog and digital signals from sensors and actuators
• Communication Interfaces: LAN, serial, and IO digital interfaces

Functional Characteristics

• Signal Acquisition and Conversion: Converts analog and digital signals from sensors into standardized outputs compatible with monitoring systems.
• Reduced Interference: Adopts a “separate bus routing” design to isolate analog and digital grounds, minimizing electrical interference.
• High Reliability: Built with high-quality materials and advanced manufacturing processes for long-term stable operation in harsh industrial environments.
• Flexible Configuration: Supports programming for 4-channel relay modules, enabling independent configuration of each relay output for custom logic.
• Remote Communication: Equipped with multiple communication interfaces for seamless data exchange with remote master stations.
• Easy Installation and Maintenance: Designed for straightforward installation and upkeep, with hot-swappable capabilities (following safety procedures) to minimize downtime.

Application Scenarios
The Bently 136719-01 is widely used in industries requiring precise monitoring and protection of rotating machinery and critical equipment, including:

• Oil and Gas: Monitoring drill platforms, pump stations, and compressor stations to detect early signs of mechanical failure.
• Power Generation: Overseeing turbine, generator, and variable-speed equipment in power plants to prevent catastrophic failures.
• Chemical and Pharmaceutical: Protecting pumps, compressors, and agitators in production processes to ensure operational safety.
• Manufacturing: Monitoring rotating equipment on production lines, such as motors and conveyor belt drives, to maintain efficiency.
• Steel and Metals: Safeguarding blast furnace blowers, large sintering fans, and other equipment to prevent production interruptions.
• Marine and Offshore: Ensuring the reliable operation of propulsion systems and critical machinery on ships and offshore platforms.
