Beijer E300-04380A
Beijer E300-04380A

Beijer E30004380

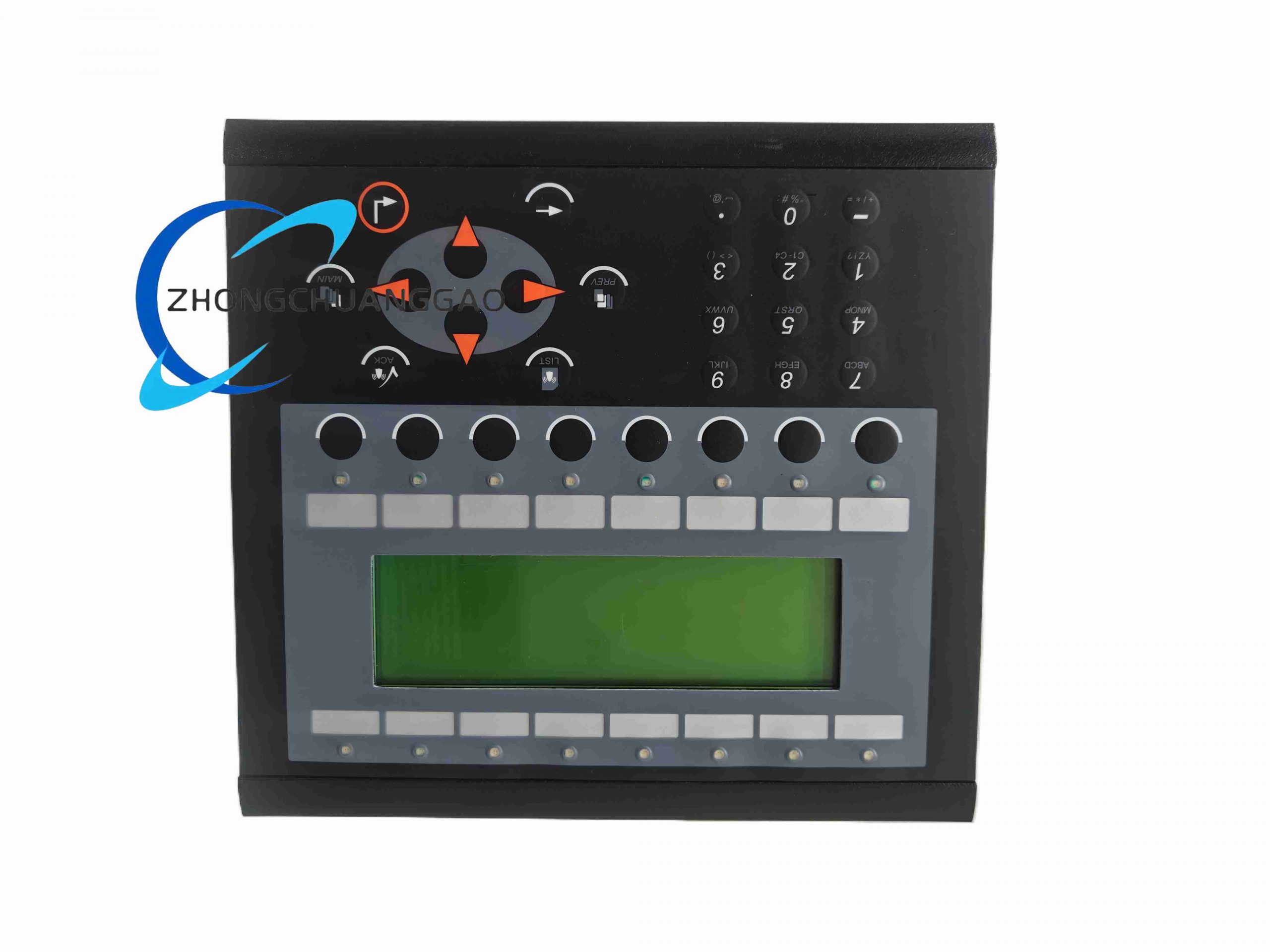

Product Name: Beijer Electronics E300 Series Operator Panel (HMI)
Product Introduction: The E30004380​ (associated with type 04380A) is an industrial Human Machine Interface terminal featuring a monochrome LCD and keypad interface for real-time monitoring and control of automation processes.
Category:
Description
Technical Specifications:
  • Display Type: Backlit Monochrome LCD​
  • Resolution: 240 x 64 pixels​
  • Text Capacity: 4 lines x 20 chars​ (or 8×40 configurable)
  • Power Supply: 24 VDC​ (20–30 VDC​ range), 450 mA​ max (Class 2)
  • Memory: 400 KB​ Flash-RAM (expandable to 4–8 MB)
  • Function Keys: 8​ user-assignable (with legend strips)
  • LED Indicators: 16​ dual-color (Red/Green)
  • Communication Ports: RS232C, RS422​ (1 expansion slot available)
    Functional Characteristics: Customizable soft-key mapping, alarm list management, recipe handling, data logging to memory, multi-language text support.
    Performance Parameters: Operating Temp: 0°C to 50°C; Storage Temp: -20°C to 70°C; Humidity: 5–85% RH non-condensing; Weight: 1.35 kg.
    Material Composition: Front Bezel: ABS plastic​ (UV stabilized); Gasket: Neoprene​ (IP65 front face); PCB: Industrial grade with coating; Rear Housing: Sheet metal or ABS.
    Structural Features: Panel mount cutout design, IP65 rated front (when properly gasketed), screw-terminal connections, compact depth behind panel, CE marked.
    Working Principle: The embedded processor runs the Beijer firmware, polling field devices via serial protocols (Modbus RTU etc.), rendering status on the LCD, and transmitting operator key presses back to the PLC as defined in the project configuration downloaded via PC software.
    Advantages: Certified for Class I, Division 2​ hazardous locations, robust for marine/chemical environments, simple text-based interface suitable for harsh visibility conditions, long product lifecycle support.
    Applicable Industries: Marine propulsion controls, Chemical processing skids, Water treatment SCADA local panels, Food processing (dry areas), OEM machinery.
    Model Series: Beijer E300 series.
    Installation Requirements: Cutout dimensions per Datasheet (approx 259 x 168 mm); torque mounting clamps to 0.5 Nm; use supplied gasket for IP65; RS232/422 shielding must be grounded at one end.
    Usage Precautions: Do not expose rear electronics to washdown (IP20 rear); supply must be isolated 24 VDC​ (Class 2); backup project memory periodically; avoid static discharge when handling expansion cards.
