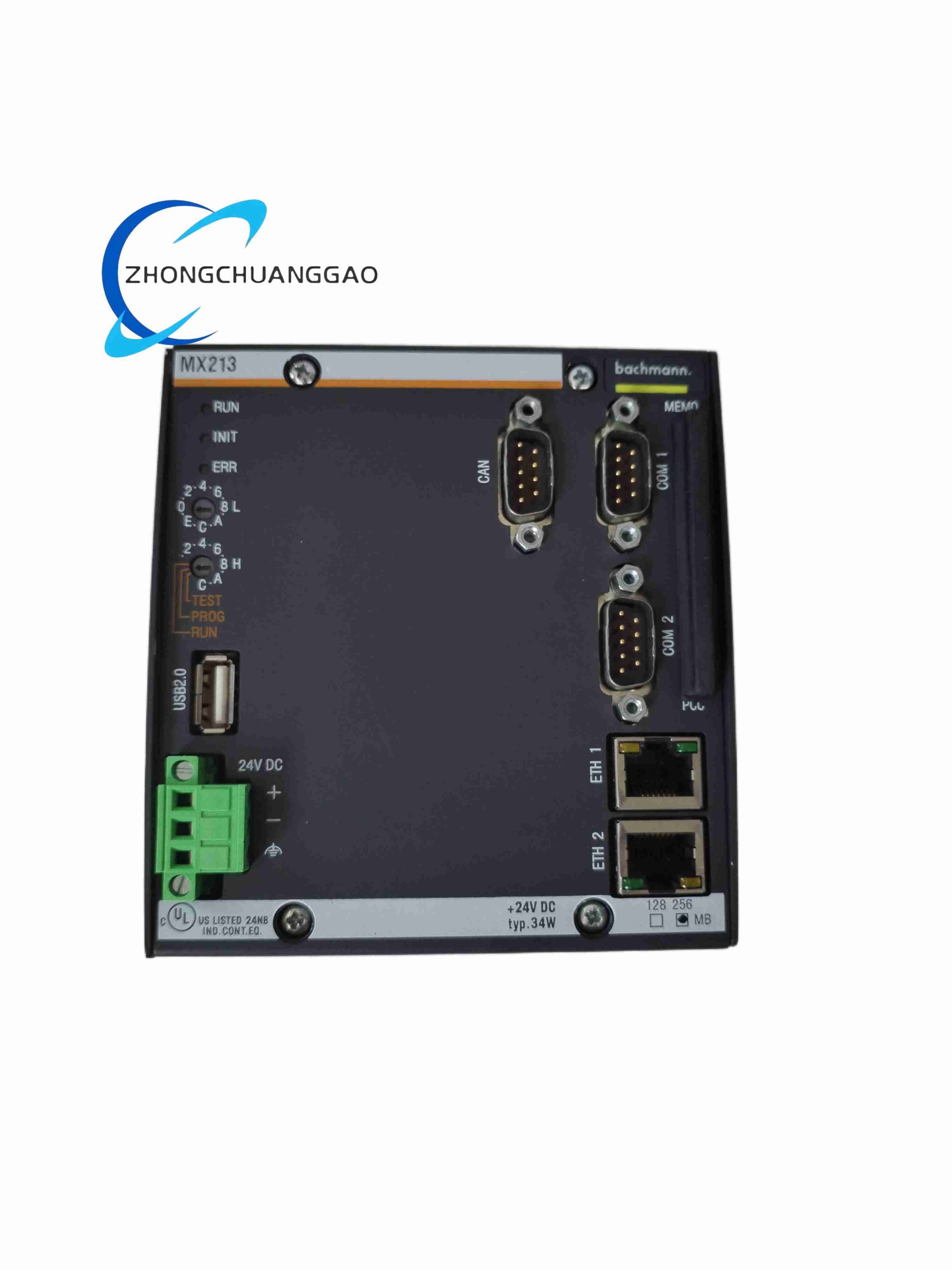

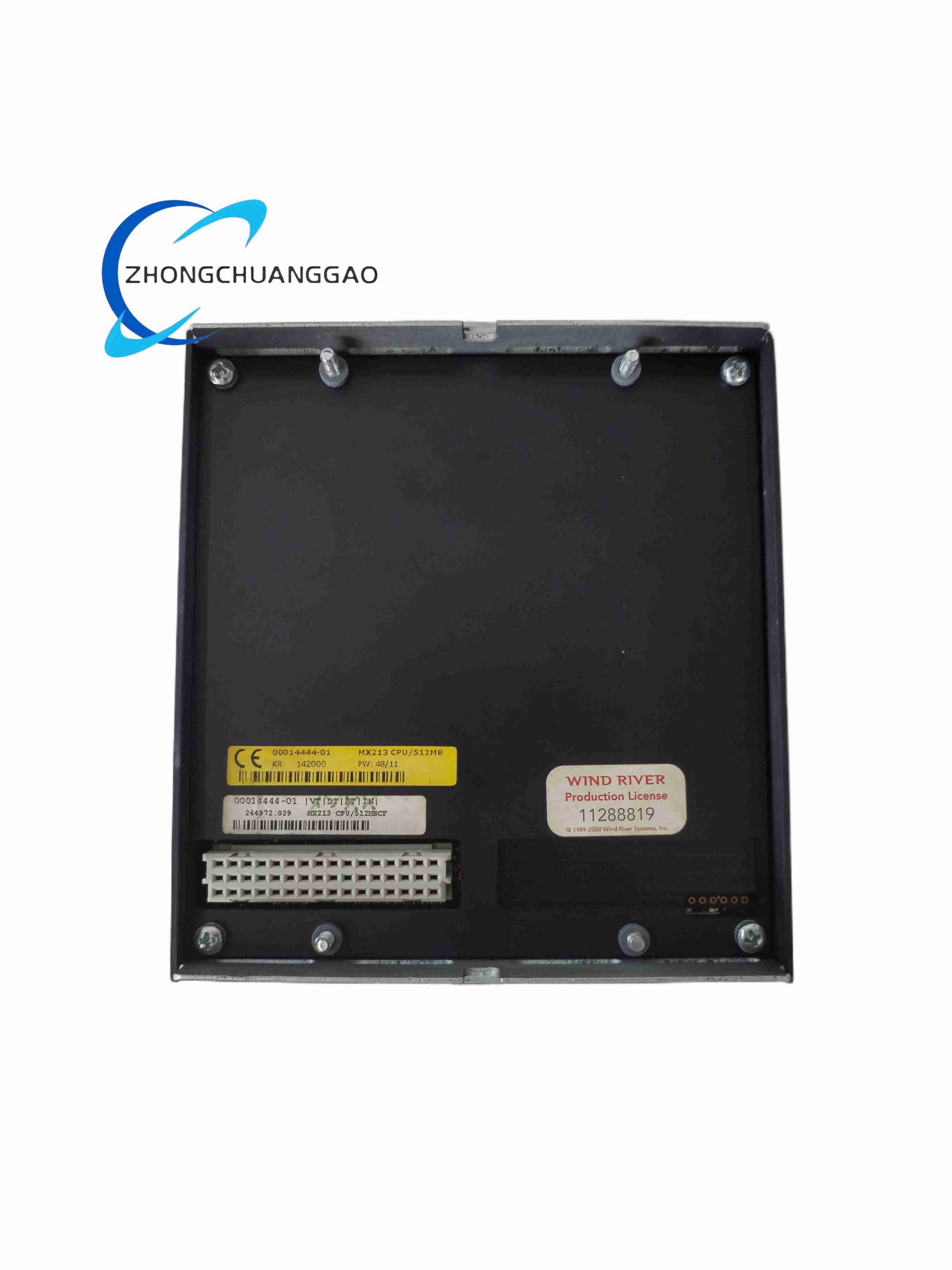

Bachmann MX213

Brief Introduction:

The MX213 is the core CPU module of Bachmann’s M1 modular PLC system. It combines an x86-compatible processor, local digital I/O, Ethernet/CAN/serial communications, and expansion bus for up to 80 I/O points. It is programmed in IEC 61131-3languages and C/C++, suitable for medium-complexity machine and process control.

Category: Others

Description

Technical Specifications:

CPU: x86 / AMD Geode LX architecture, 200–266 MHz (selectable)
Main Memory: 256 MB DRAM (ECC optional)
Non-volatile Memory: 512 kB NVRAM + 16–64 MB File Flash
Local I/O: 24 digital inputs (24 VDC, sink/source) + 16 digital outputs (24 VDC, 0.5 A per point, short-circuit protected); expandable to 80 channels via DIO modules
Communication Interfaces:
- 2× 10/100 Mbit/s Ethernet (supports Modbus TCP/IP, BACnet/IP, PROFINET IO as Controller/Device)
- 1× CAN / CANopen (DS301/302)
- 1× RS-232 (D-sub 9)
- 1× RS-232/422/485 selectable (D-sub 9)
- 1× USB 1.1/2.0 (for programming / memory stick)
Program Capacity: 256 KB user program (expandable with Flash file system)
Supply Voltage: 24 VDC (18–34 VDC range), reverse polarity protected
Module Power Consumption: ~17 W max
Operating Temperature: –30°C to +60°C (some sources cite –20°C to +60°C)
Humidity: 10–95% RH, non-condensing
Protection Rating: IP20 (when mounted in cabinet)
Mounting: 35 mm DIN rail (22 mm module width per Bachmann standard)
Dimensions (approx.): 120 mm (H) × 22 mm (W) × 75 mm (D)
Weight: ~0.675 kg
Certifications: CE, FCC, RoHS, GL (Germanischer Lloyd) marine approval available

Features:

Supports IEC 61131-3(LD, FBD, SFC, ST, IL) and C/C++ extensions
Integrated web server for diagnostics
Real-time clock with battery backup (on CPU backplane)
Online change / hot-swap of I/O modules (with system support)

Applications:

Renewable energy (wind turbine pitch/yaw control), packaging machinery, material handling, water treatment plants, test benches.

Installation & Notes:

Requires NT255 or compatible 24 VDC power supply module in the same rack
Terminate unused analog inputs; observe proper separation of signal and power wiring
Configure IP address via Bachmann SolutionCenter or DIP switches (TEST mode)
