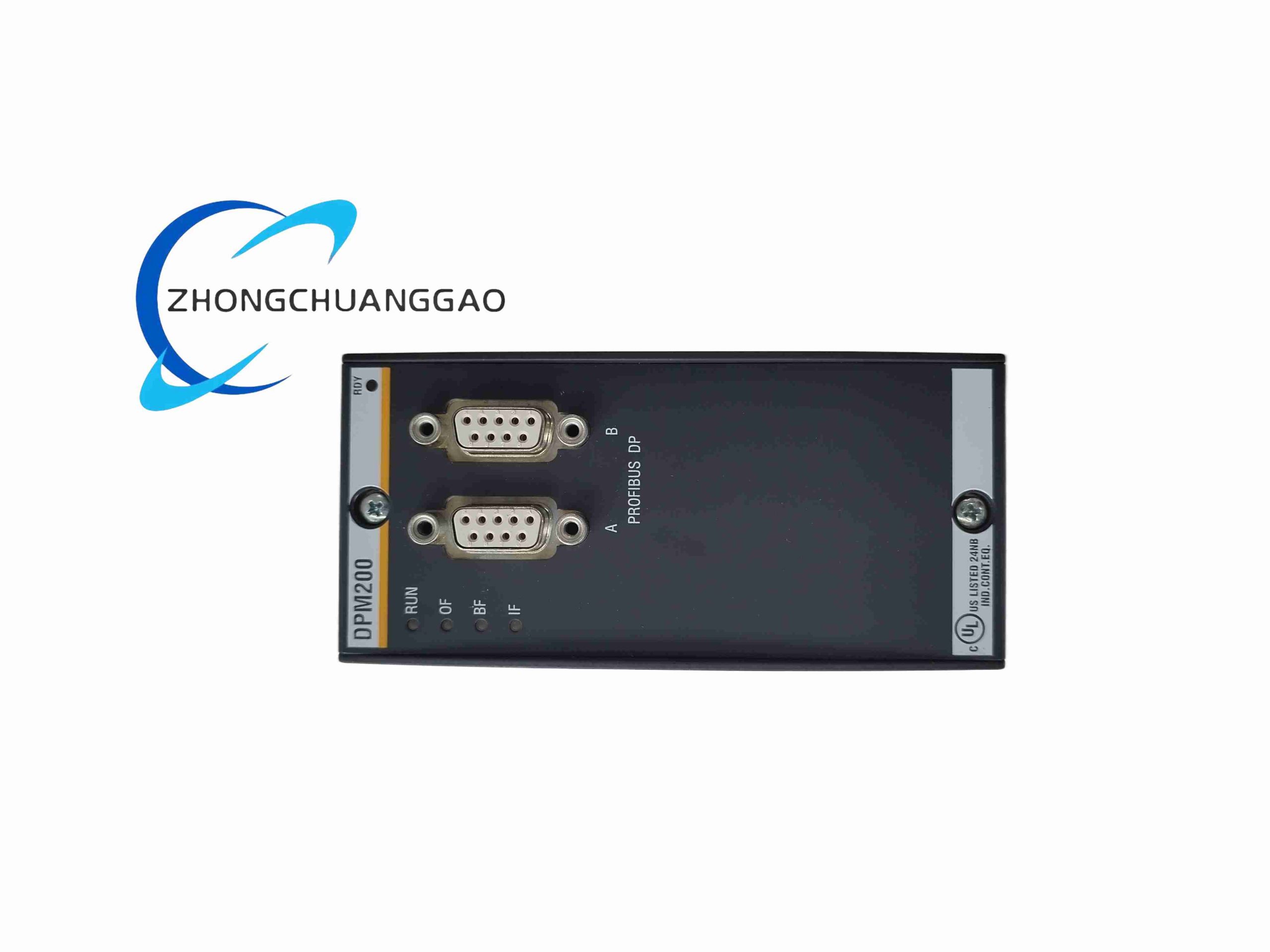

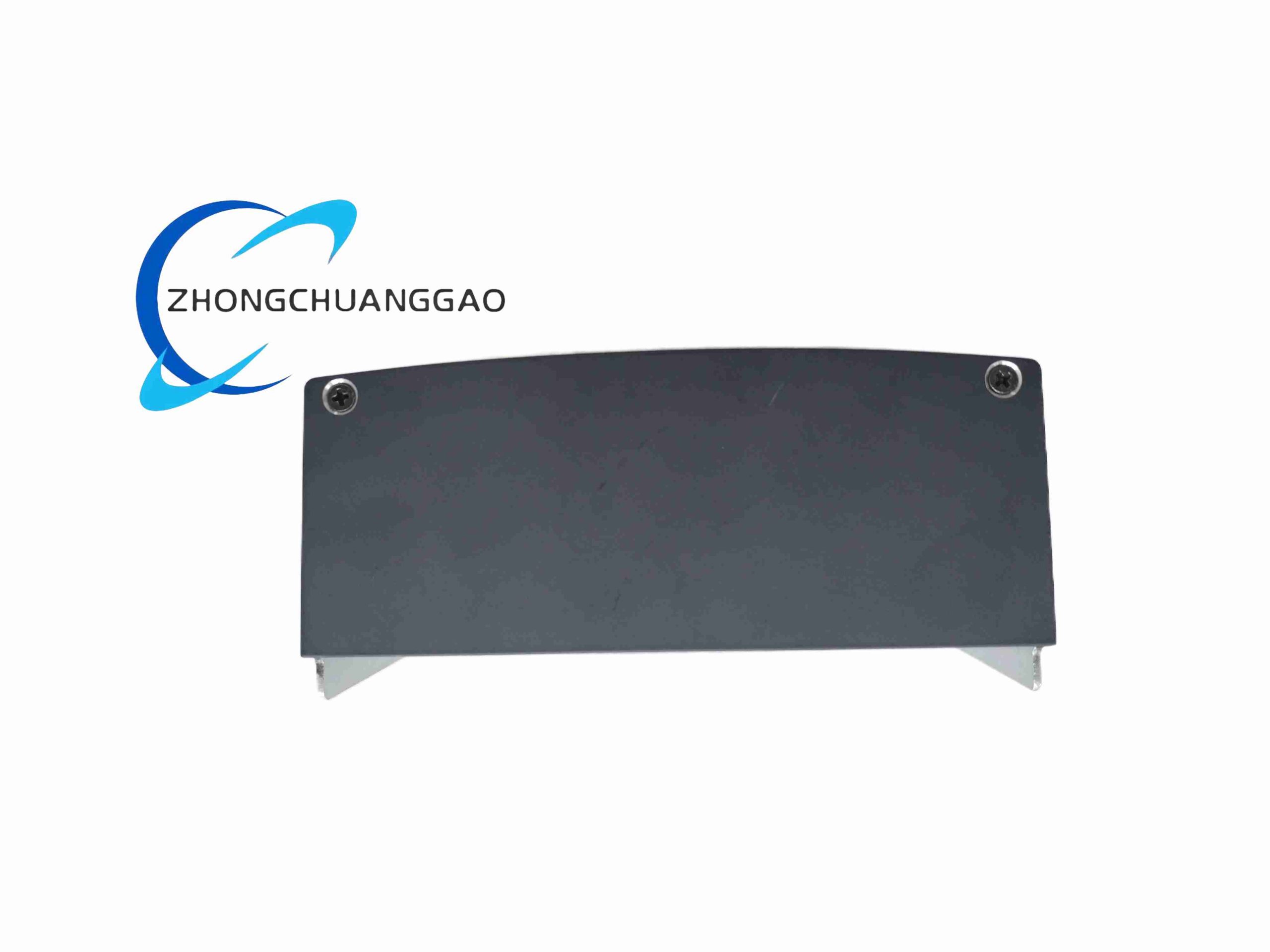

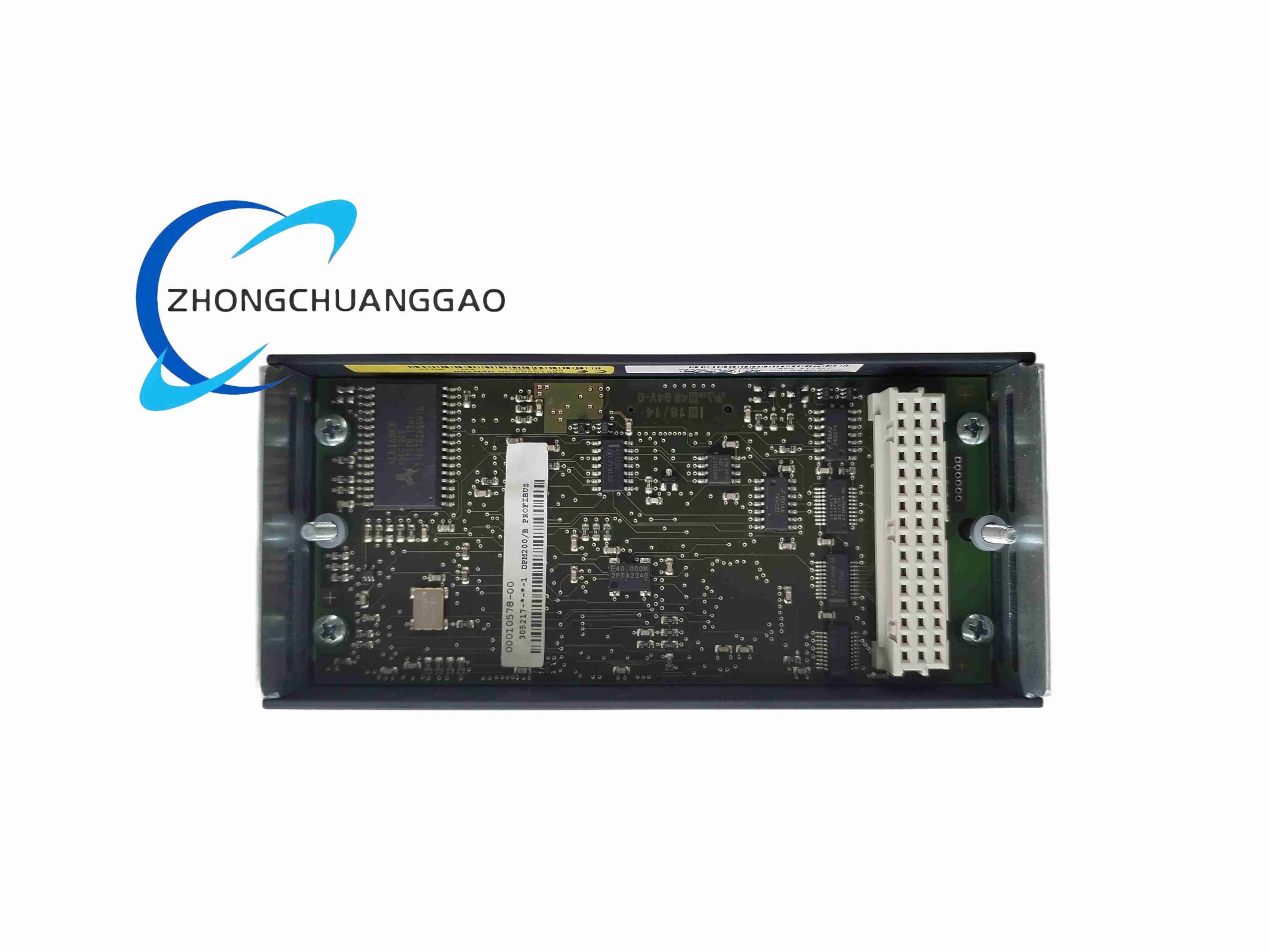

BACHMANN DPM200

  • Product Name: PROFIBUS® DP Master/Slave Module
  • Product Introduction: The Bachmann DPM200 is a high-performance fieldbus communication module designed for M1 or M200 controller systems, supporting flexible DP Master, DP Slave, or combined modes for industrial automation networks.
Category:
Description
  • Technical Specifications:
    • Transmission Rate: 9.6 Kbaud to 12 Mbaud​ (auto-detectable)
    • Process Image: 8 kByte​ shared memory (16 DPM data blocks)
    • Interfaces: 2 x 9-pin D-Sub female​ (RS485)
    • Electrical Isolation: 500 V​ (fieldbus vs controller)
    • Current Consumption: 400 mA @ 5 VDC
    • Max Slaves: 32​ without repeater, 125​ with repeater
  • Functional Characteristics: Configurable consistency locks for data blocks; supports two bridged connections for loop-through wiring; multi-master network capable.
  • Performance Parameters:
    • Operating Temperature: -30°C to +60°C
    • Humidity: 5% to 95%​ RH non-condensing
    • Data Length per Slave: 732 bytes
  • Material Composition: Industrial-grade PCB; metal shielding on RS485 interfaces; flame-retardant housing.
  • Structural Features: Standard Bachmann module width for rail/chassis mounting; LED status indicators for bus activity and power.
  • Working Principle: Manages cyclic data exchange between the Bachmann controller and PROFIBUS-connected I/O devices or drives using the DP protocol at configured baud rates.
  • Advantage Highlights: Wide temperature range for harsh environments; large process image for complex data handling; hot-swap capable within redundant architectures.
  • Applicable Industries: Renewable Energy (Wind), Marine, Industrial Machinery, Process Automation.
  • Model Series: Bachmann DPM Series (Fieldbus Modules).
  • Installation Requirements: Snap onto Bachmann M200​ or compatible rack; terminate PROFIBUS network with 220 Ohm​ resistors at both ends; ensure 500V isolation integrity.
  • Usage Precautions: Set correct baud rate matching all network slaves; verify GND connection to avoid ground loops; do not exceed 1.2 km cable length at 12 Mbaud without repeaters.
