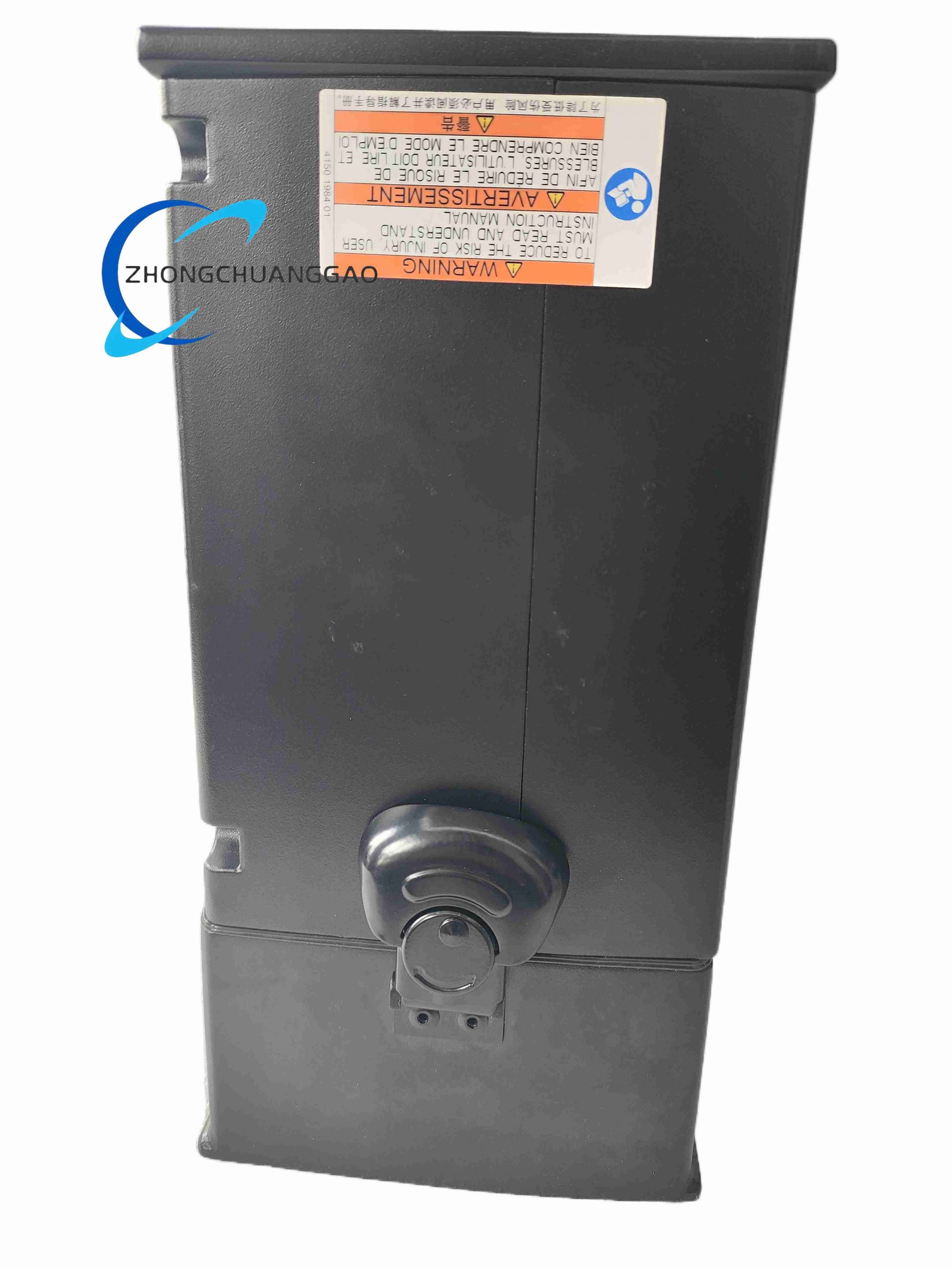

Atlas Copco TC-4000-P-PB-ES - Image 1

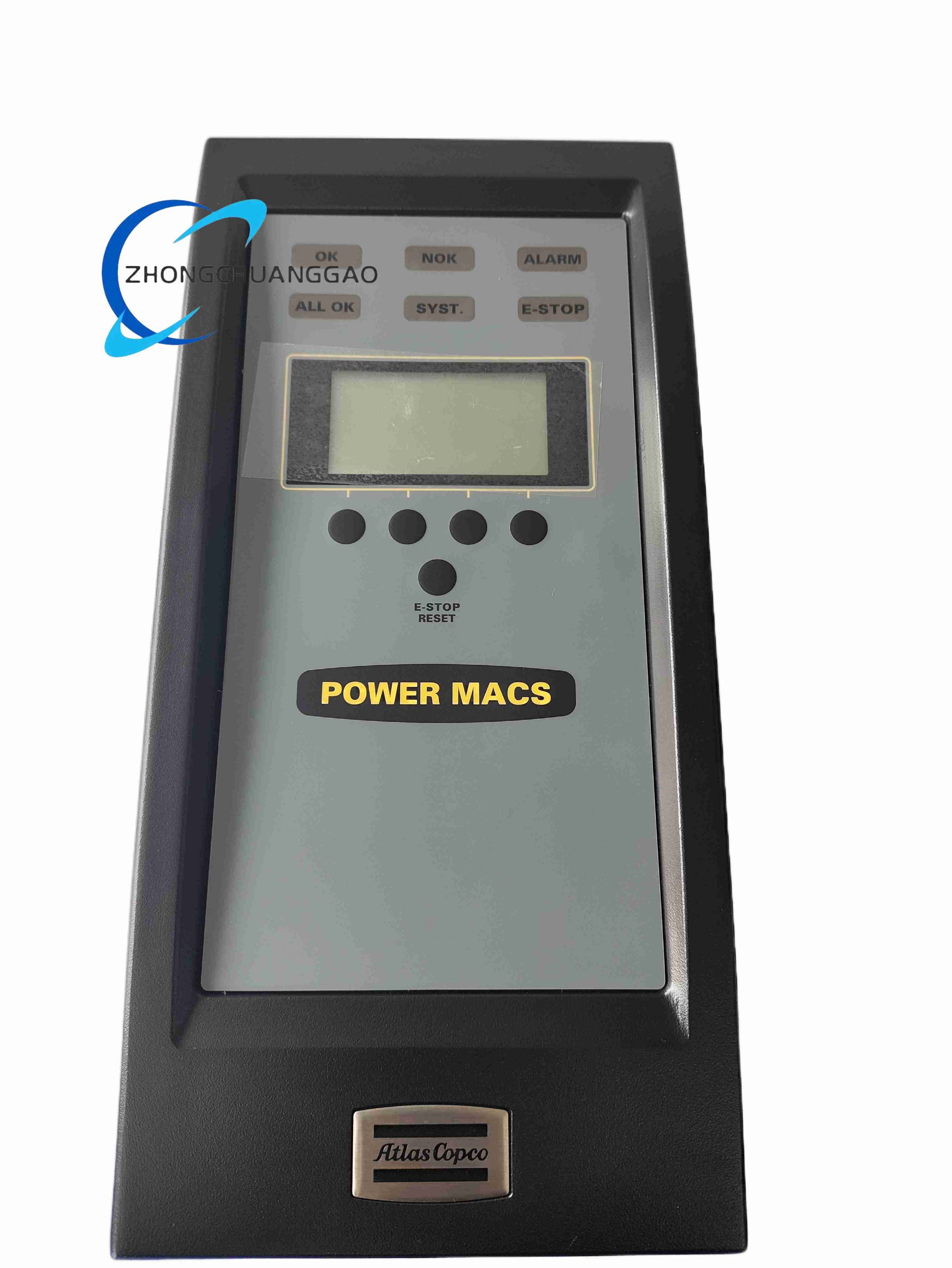

Atlas Copco TC-4000-P-PB-ES - Image 2
Click to enlarge
Atlas Copco TC-4000-P-PB-ES
Atlas Copco TC-4000-P-PB-ES - Image 2
ICS Triplex T9451
ICS Triplex T9451
Back to products
Honeywell TC-PRS021
Honeywell TC-PRS021

Atlas Copco TC-4000-P-PB-ES

Product Name:​ Atlas Copco TC-4000-P-PB-ES — TC-4000 Series Programmable Controller, PROFIBUS DP, Enhanced Spec
Manufacturer:​ Atlas Copco (Industrial Technique Business Area)
Product Introduction:​ A programmable power & process controller for industrial tightening/assembly systems and general machine control, equipped with embedded mini-PLC functionality, local HMI display, and PROFIBUS DP fieldbus for integration into plant PLC/SCADA networks.
Category:
Description
Technical Specifications:
  • Power Supply:​ 380–480 V AC 3-phase, 50–60 Hz OR 24 V DC (variant-dependent; 100–240 V AC also documented for some TC-4000 base units)
  • Power Rating:​ 500 W
  • Fieldbus Interface:​ PROFIBUS DP (SCIP profile)
  • Embedded PLC:​ Yes — IEC 61131-3compliant, configurable via Atlas Copco ToolsTalk software
  • I/O Capability:​ Supports digital DI/DO and analog AI/AO (4–20 mA / 0–10 V) expansion modules
  • Features:​ Integrated LCD display, E-Stop relay, patented DynaTork™ strategy (eliminates relaxation error), reject management, torque/angle monitoring
  • Communication:​ PROFIBUS DP slave; optional Ethernet on other TC-4000 variants
  • Programming / Config:​ Local keypad + PC (ToolsTalk TC4000)
  • Dimensions (H×W×D):​ 316 × 146 × 298 mm (approx.)
  • Weight:​ ≈8 kg (package ≈9.1 kg)
  • Ingress Protection:​ IP43 (panel front often IP54/IP65 depending on cutout)
  • Operating Temp.:​ +5 °C to +50 °C
  • Storage Temp.:​ +5 °C to +50 °C
  • Standards / Certifications:​ CE, ETL listed, EN 61010-1, EN 61800-3, RoHS / WEEE compliant
Application:​ Automotive / aerospace final assembly lines, engine/transmission tightening stations, press/positioning machine control integrated with plant DCS/PLC via PROFIBUS.
