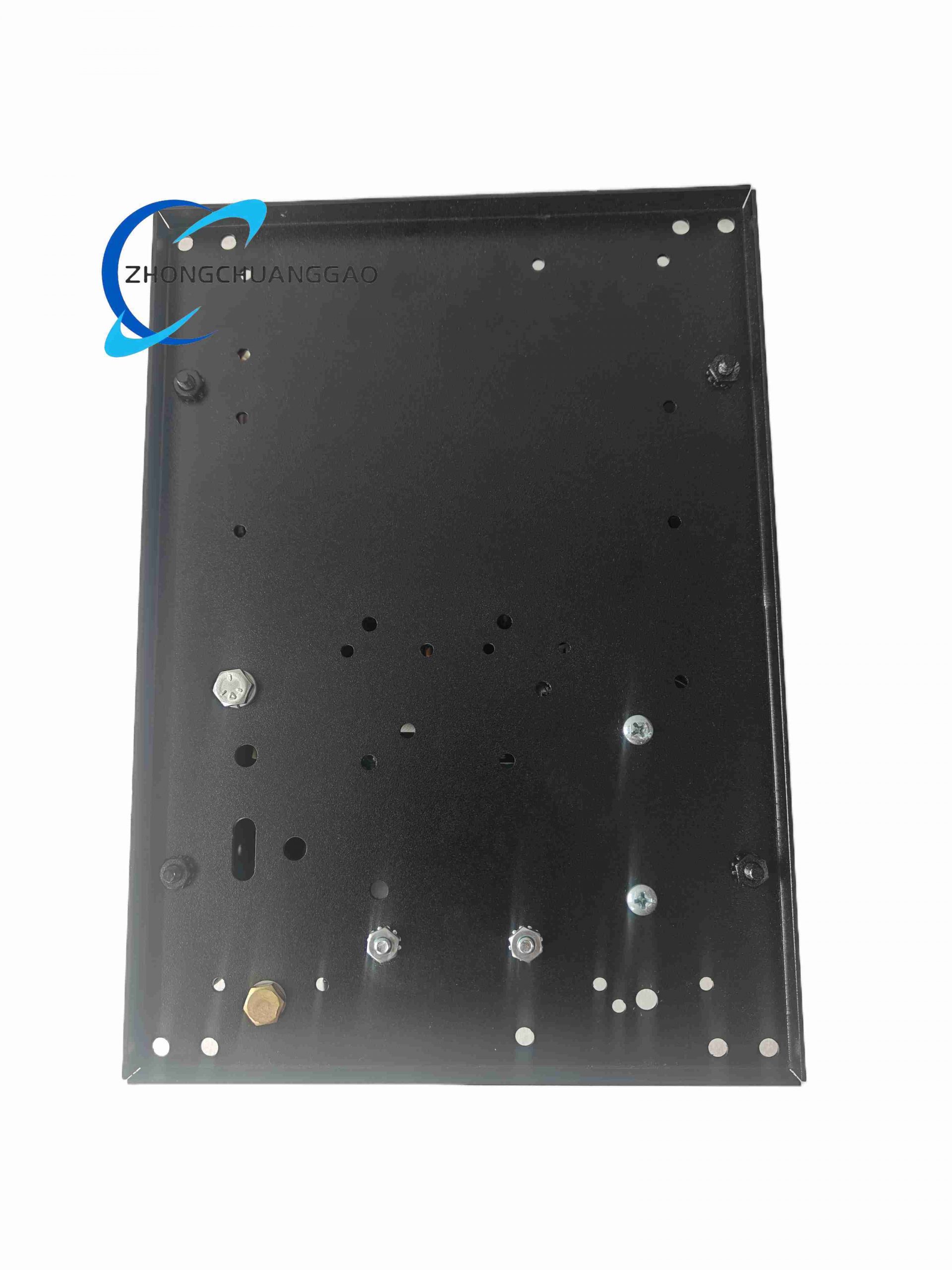

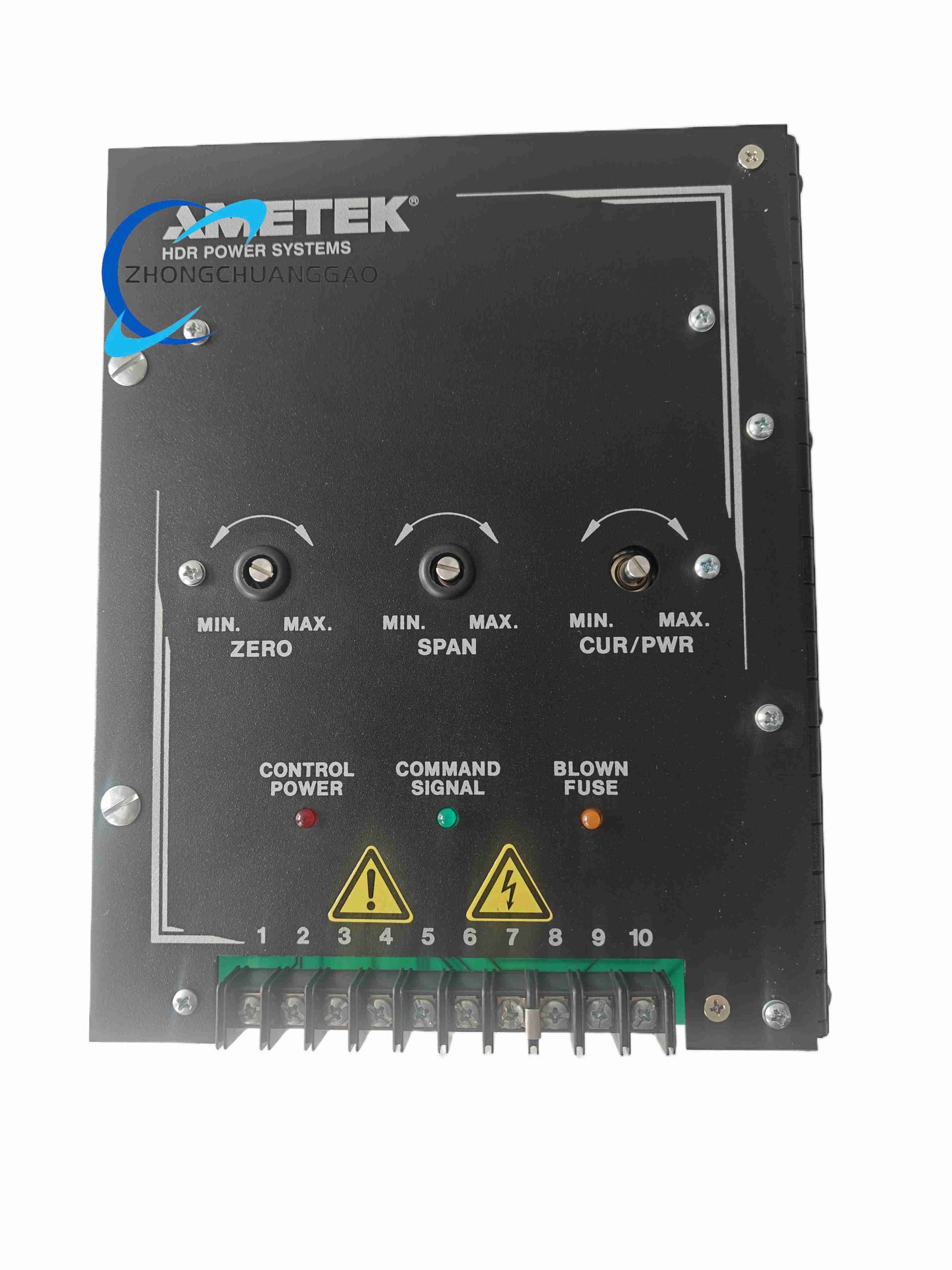

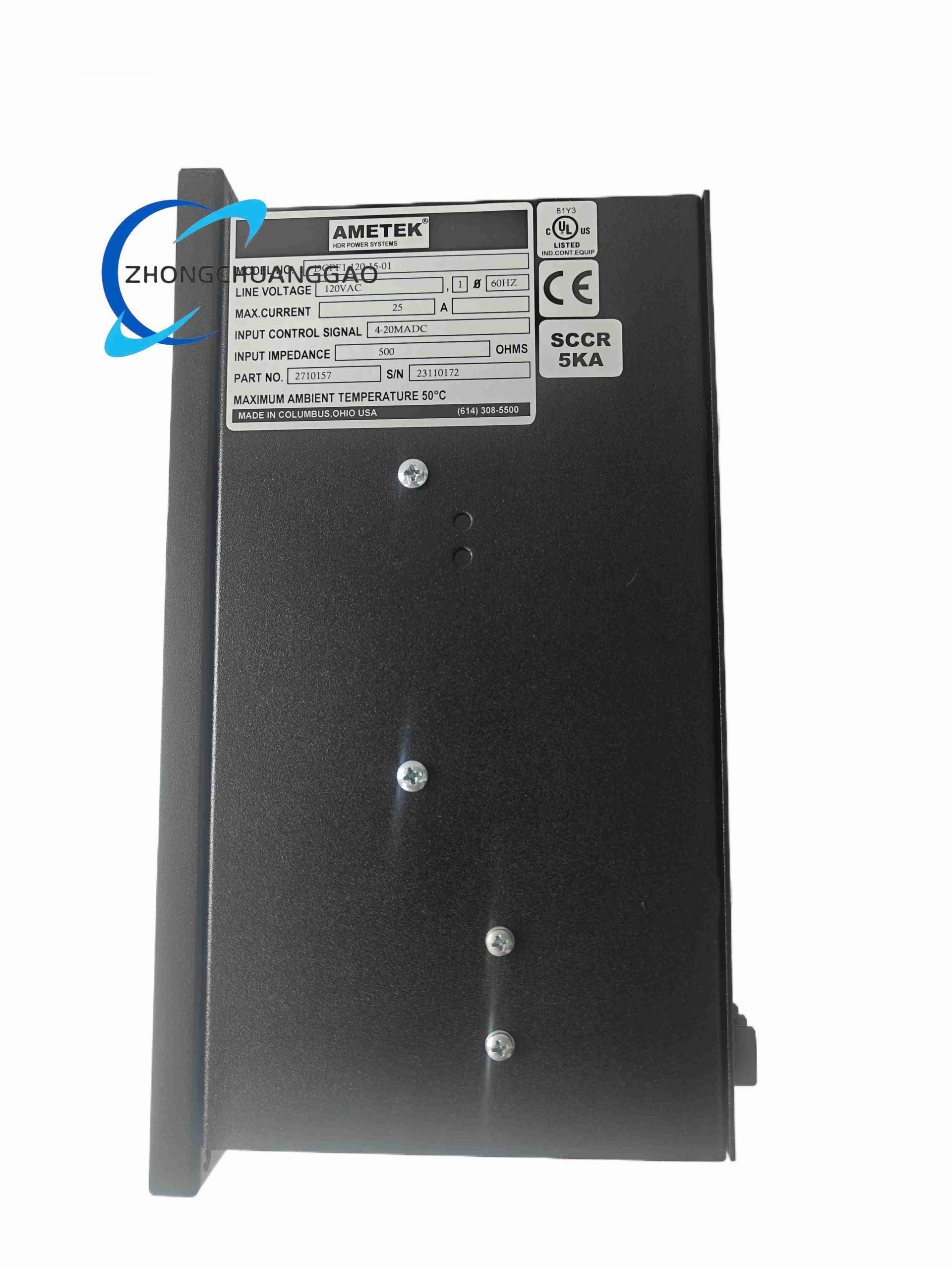

AMETEK DCPF1-120-15-01 - Image 1
AMETEK DCPF1-120-15-01 - Image 2
AMETEK DCPF1-120-15-01 - Image 3
Click to enlarge
AMETEK DCPF1-120-15-01
AMETEK DCPF1-120-15-01 - Image 2
AMETEK DCPF1-120-15-01 - Image 3
Rexroth DKC01.3-040-7-FW
Rexroth DKC01.3-040-7-FW
Back to products
Honeywell DC-TUIO31 51307772-176
Honeywell DC-TUIO31 51307772-176

AMETEK DCPF1-120-15-01

  • Product Name:​ Sorensen DCPF Series Single-Output Programmable DC Power Supply
  • Product Introduction:​ A high-performance, 1U rack-mount switching DC power supply delivering up to 1800 W continuous output. Designed for automated test equipment (ATE), R&D labs, burn-in testing, and industrial system integration. Provides clean, stable DC power with low ripple and programmable voltage/current setpoints.
Category:
Description
  • Technical Specifications:
    • Output Power:​ 1800 W
    • Output Voltage:​ 0 – 120 V DC
    • Output Current:​ 0 – 15 A DC
    • Voltage Regulation / Accuracy:​ ±(0.03% + 6 mV)
    • Load Regulation:​ ≤ 0.01% + 2 mV
    • Ripple & Noise:​ < 8 mVrms / 40 mVp-p (20 Hz – 20 MHz)
    • Programming Interface:​ Isolated analog (0–5 V / 0–10 V std.); Optional GPIB, LXI-compliant LAN (Ethernet), USB
    • Voltage Programming Speed:​ < 1 ms for 90% step change
    • Efficiency:​ Up to 89%
    • Input:​ 85–265 V AC, 47–63 Hz (auto-ranging)
    • Protection:​ OVP (programmable), OCP, OTP, OPP
    • Cooling:​ Forced-air fan (variable speed)
    • Operating Temp.:​ 0 °C to +50 °C
    • Dimensions (W×H×D):​ 419 × 44 × 465 mm (19″ rack, 1U)
    • Weight:​ Approx. 10 kg
  • Functional Features:​ High power density 1U design; fast output slew rate for transient simulation; front-panel V/I adjustment with simultaneous digital display; remote sense capability; master/slave paralleling with active current sharing.
  • Applications:​ ATE systems, PCB / telecom / automotive electronics burn-in, solar inverter MPPT testing, servo drive / PLC rack power source.
  • Installation & Notes:​ Mount in standard 19″ rack with adequate rear clearance for airflow. Use remote sense leads for loads >5 A to compensate cable drop. Ensure chassis ground bonded to system earth. Do not block fan exhaust.
