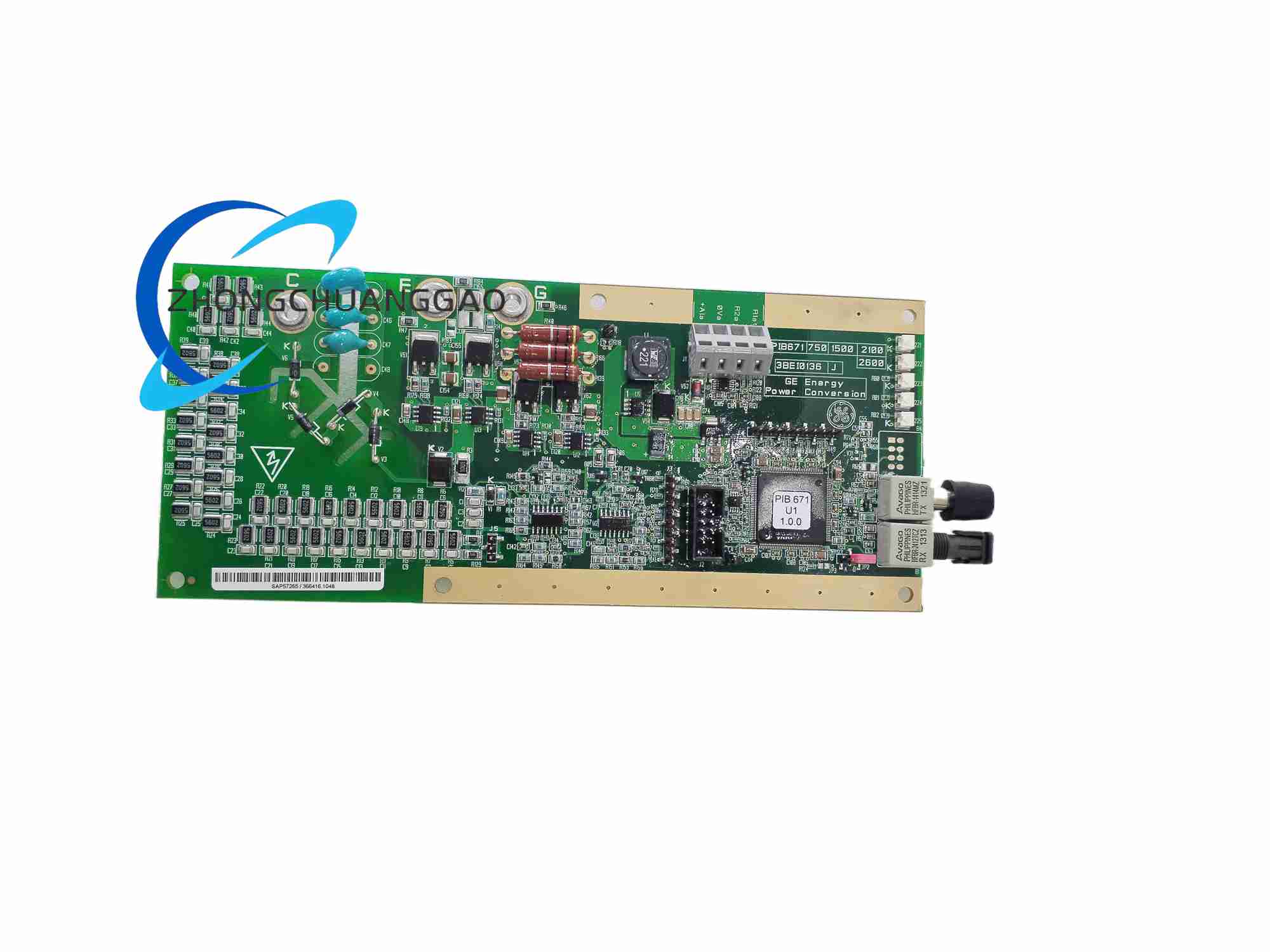

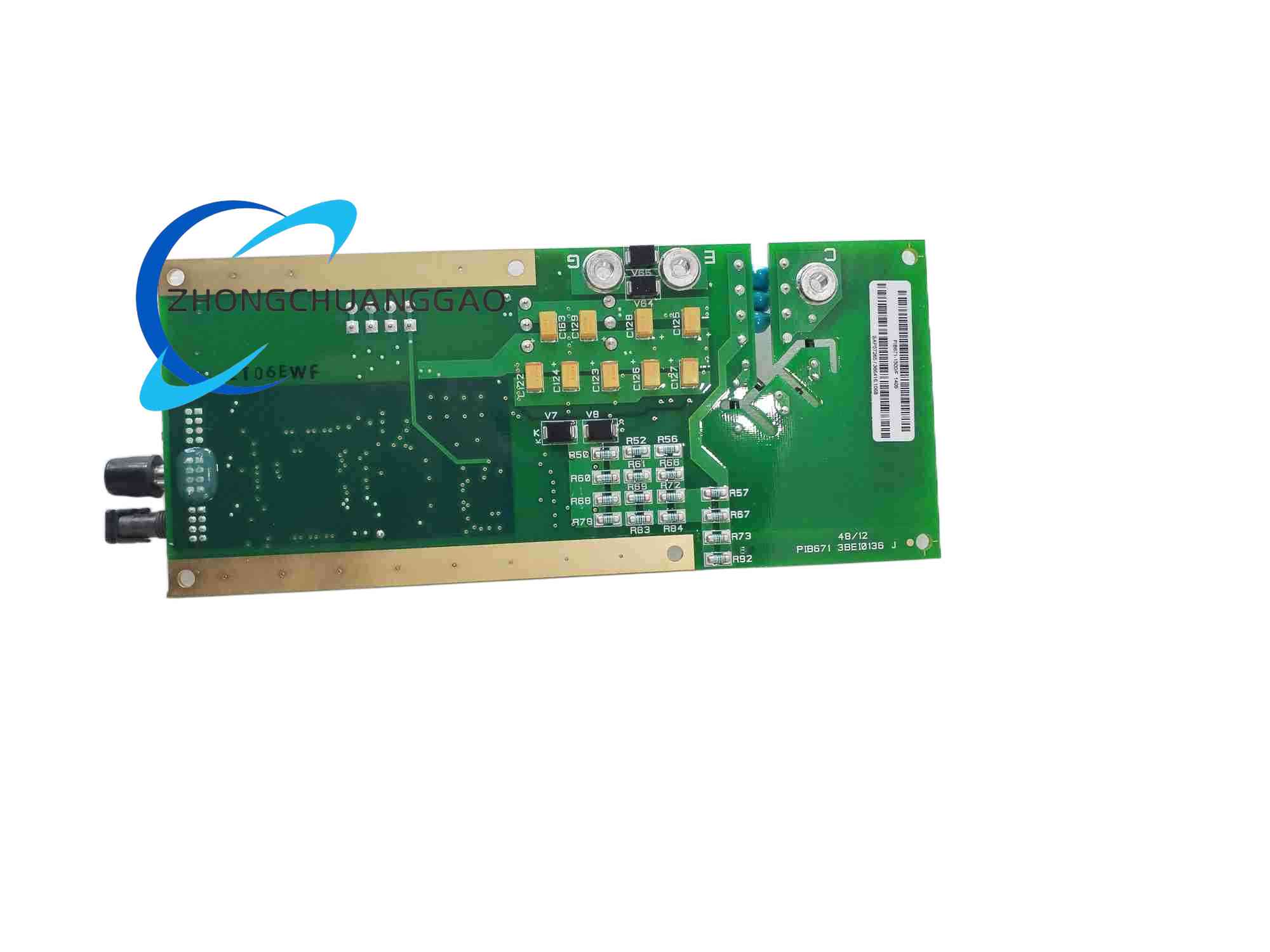

Product Name:​ Alstom PIB671-1500 Power Interface Board / 24 VDC Distribution Module
Product Introduction:​ A rack-interfaced power entry and distribution board for Alstom DCS/relay racks, converting and conditioning upstream AC/DC into isolated 24 VDC for backplane electronics.
Category:
Description
Technical Specifications:
  • Input:​ 110/220 VAC or 24 VDC (config jumper)
  • Output:​ 24 VDC regulated, 10–20 A depending on load cards
  • Isolation:​ Galvanic between input and backplane
  • Filtering:​ EMI common-mode choke + TVS clamp
  • Mount:​ Rack slot / DIN adapter
  • Indicators:​ In-OK, Out-OK, Fault
  • Temp:​ -20 °C to +60 °C
  • Connectors:​ Screw terminal / card-edge to backplane
Features:​
Hot-standby capable in redundant PIB pairs, current sharing, fuse-less eFuse per rail.
Applications:​
Alstom Micom relay racks, turbine control cabinets, substation DCS power core.
Precautions:​
Verify jumper before energizing; mismatch AC/DC selection destroys board; torque backplane screws to 1.2 Nm.
