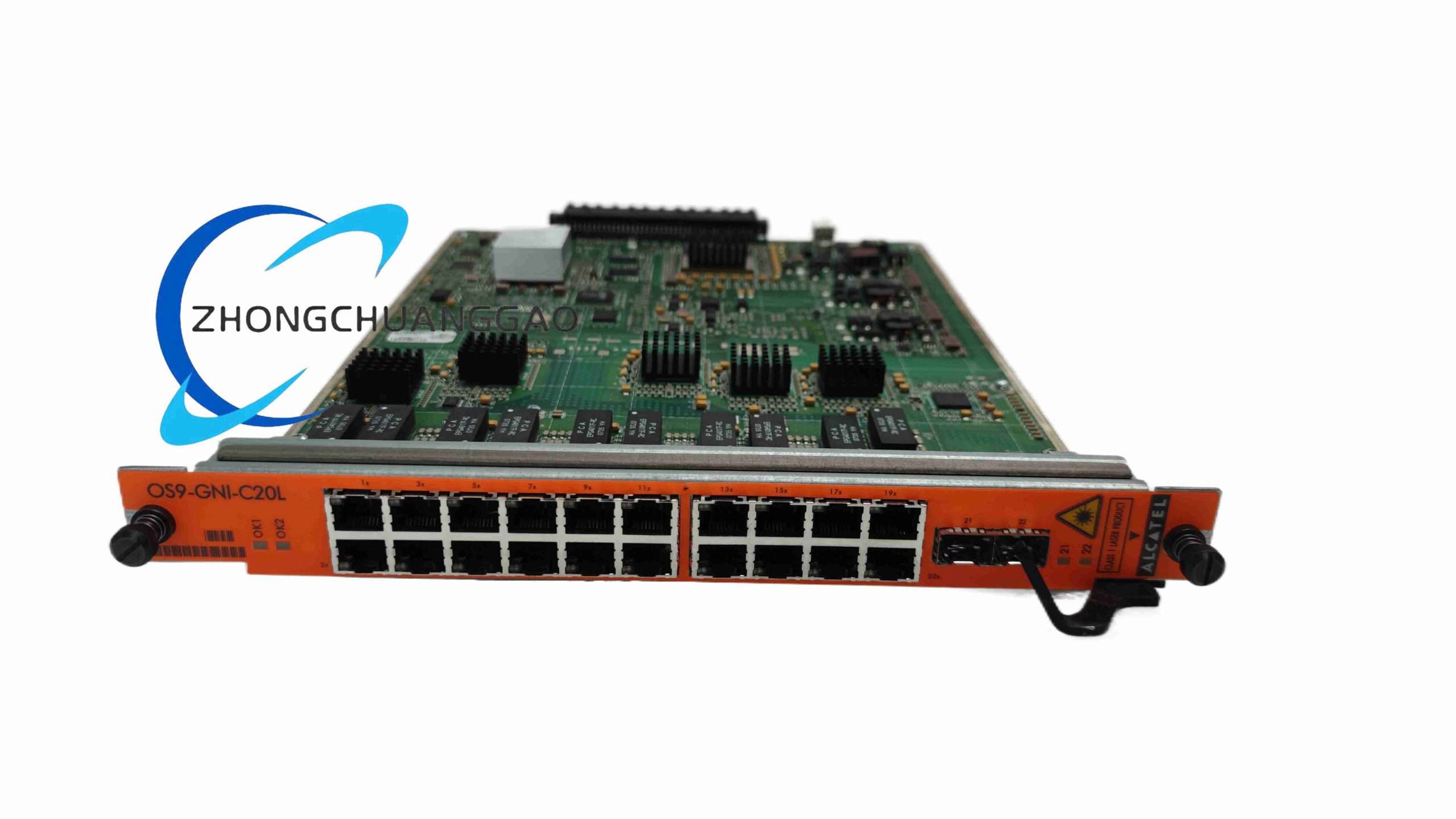

Alcatel-Lucent OS9-GNI-C20L - Image 1
Click to enlarge
KEBA OP362-LDW-5200
KEBA OP362-LDW-5200
Back to products

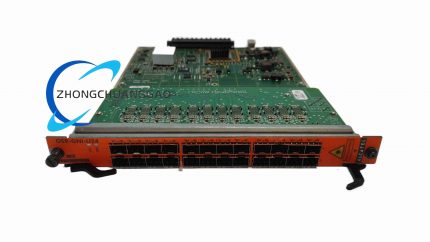

Alcatel-Lucent OS9-GNI-U24
Alcatel-Lucent OS9-GNI-U24

Alcatel-Lucent OS9-GNI-C20L

Product Name:​ OmniSwitch 9000 Chassis Line Card, 20×10/100Base-T + 2×SFP
Product Introduction:​ Modular access/aggregation interface blade for OS9000 chassis, software-upgradable to 1000Base-T on copper ports.
Category:
Description
Technical Specifications:
  • Copper:​ 20 × 10/100Base-TX RJ-45 (SW upgradable to 10/100/1000)
  • Fiber:​ 2 × 1000Base-X SFP (MiniGBIC MSA)
  • Slot type:​ OS9000 series NIC bay
  • Throughput:​ Line-rate per port, backed by chassis fabric
  • Management:​ AOS, OmniVista, CLI, SNMP, Web
  • Features:​ VLAN, STP/RSTP/MSTP, QoS, ACL, sFlow
  • Upgrade SKU:​ OS9-C20L-UPG unlocks GbE on RJ-45
    Functional Features:​ Hitless failover with redundant supervisor, hardware queues, EEE support.
    Working Principle:​ Port ASIC forwards L2/L3 frames to chassis switch fabric; SFP transceivers negotiate 1 G optical/electrical.
    Installation:​ Insert in powered chassis slot, seat with ejector levers, confirm LED sequence; configure from supervisor console.
    Usage Notes:​ Do not mix C20L and C24 config on same LAG without AOS validation; use only ALE-qualified SFPs; upgrade license before forcing 1000Base-T.
