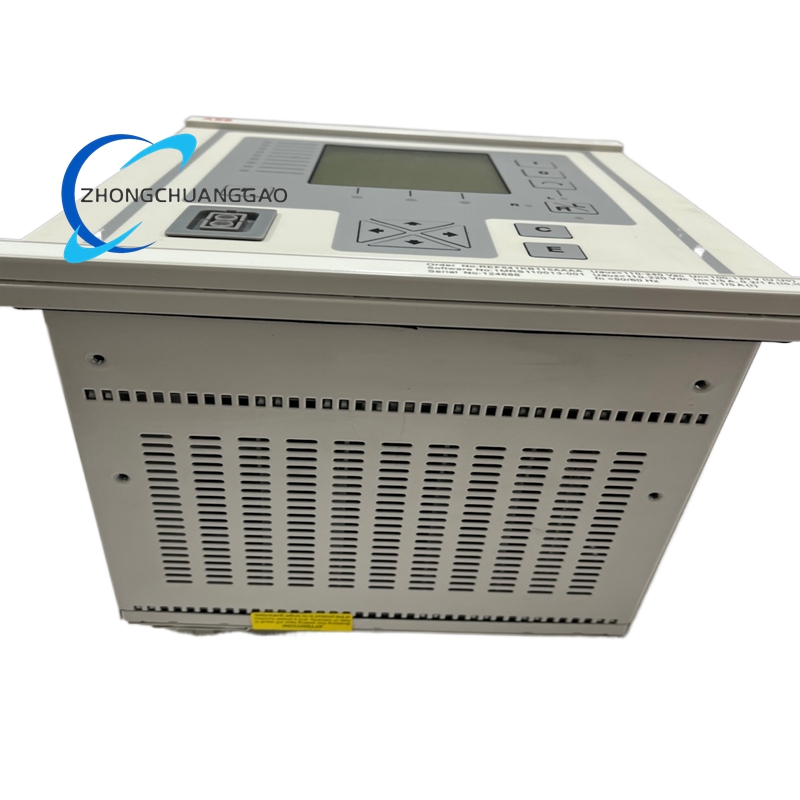

ABB REF541KB115AAAA

• Current Rating: Handles various current levels, adaptable to different system requirements.
• Communication Protocols: Supports multiple protocols including IEC 61850, IEC 60870-5-103, Modbus, DNP3, and Profibus for seamless integration into automation systems.
• Input/Output: Equipped with multiple digital inputs and outputs for connecting to external devices such as circuit breakers and sensors.
• Display: Features a large graphical LCD for clear visualization of data and status information.
• Environmental Conditions: Designed to operate in a wide temperature range, typically from -25°C to +70°C, with appropriate protection ratings (e.g., IP54) for industrial environments.

Functional Characteristics

• Protection Functions:
  • Overcurrent and earth fault protection (directional and non-directional).
  • Overvoltage and undervoltage protection.
  • Thermal overload protection.
  • Breaker failure protection and auto-reclosing.
• Control Functions:
  • Local and remote control of circuit breakers and switches.
  • Synchronization check for parallel operation.
  • Interlocking and logic control functions.
• Measurement Functions:
  • Measurement of phase currents, voltages, neutral current, and residual current.
  • Frequency, power factor, active and reactive power, and energy measurement.
• Monitoring Functions:
  • Breaker status monitoring and trip circuit supervision.
  • Self-diagnostics and alarm functions.
  • Event recording and fault locator for troubleshooting.
• Additional Features:
  • Programmable logic controller (PLC) functionality for custom automation tasks.
  • Harmonic measurement and analysis for power quality monitoring.
  • Support for RTD/analog modules for temperature and additional analog measurements.

Application Scenarios

• Power Distribution Systems: Used in medium-voltage substations for protecting and controlling feeders in radial, ring, and meshed networks.
• Industrial Plants: Provides comprehensive protection and control for motors, generators, and other critical equipment in manufacturing and processing industries.
• Renewable Energy: Integrates into solar and wind power plants for efficient management of electrical distribution.
• Infrastructure Projects: Applied in transportation systems (railways, airports) and building automation for reliable power supply and management.
• Utility Networks: Enhances grid stability and reliability in utility distribution networks through advanced protection and monitoring capabilities.
