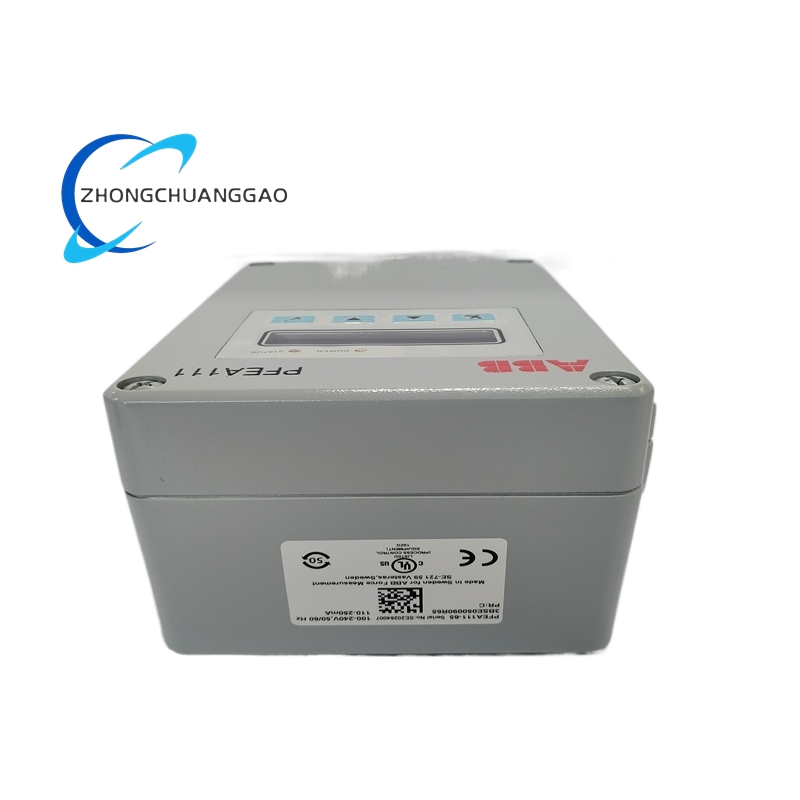

ABB PFEA111-65 Tension Controller

• Output Signals: Supports 0-10V and 4-20mA analog outputs
• Sensor Inputs: Dual load cell inputs (A/B channels) with A+B, A-B display modes
• Signal Processing: PID closed-loop control with a response time ≤200ms and accuracy of ±0.1% F.S. Adjustable filtering suppresses mechanical vibration interference.
• Mechanical Design: DIN rail-mountable with IP20 (standard) and IP65/NEMA 4 (dust/water-resistant) enclosure options. Operating temperature range: -40°C to +70°C (wide-temperature version).

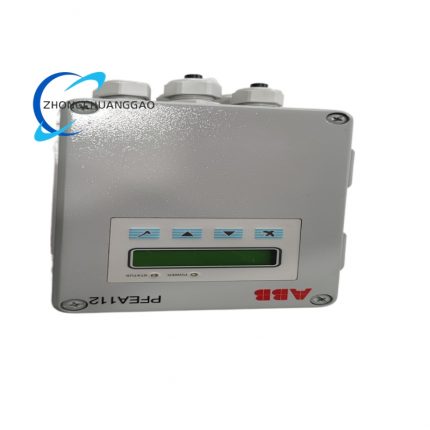

• Communication: Integrated Profibus DP (optional PFEA112 version), Modbus, and other protocols for seamless PLC/DCS integration.
• Display: 2×16 character multilingual LCD for real-time tension value display (single sensor, synthetic, or differential values).
• Safety: Built-in overcurrent/overheating protection, power isolation, and self-diagnostic system (error codes like Err-05). MTBF exceeds 50,000 hours.

Key Features

• High Precision: PID algorithm automatically adjusts parameters, reducing manual tuning time (e.g., 0.5 seconds for material changes).
• Robust Design: IP65 version withstands high dust and humidity, complying with IEC 61000-4 EMC standards.
• Modular Expandability: Supports cascading up to 12 modules for multi-channel control (e.g., segmented roller systems in metal processing).
• Advanced Output Modes: Panel buttons enable ramp, triangular wave, and other complex output patterns for specialized applications.
• Real-Time Monitoring: Fault detection for tension over/under-range and sensor disconnection, with alarm outputs.

Applications

• Printing Industry: Ensures consistent tension in roll-to-roll processes for gravure, flexographic, and newspaper printing.
• Packaging: Maintains stable tension during film/paper slitting and rewinding.
• Papermaking: Controls tension in paper web handling to prevent breaks and ensure uniform thickness.
• Wire and Cable Production: Regulates tension during extrusion and winding to prevent diameter variations.
• Textile and Chemical Fiber: Manages yarn tension in spinning and weaving for defect-free fabrics.
• Metal Foil Processing: Prevents wrinkles or tears in thin metal sheets during rolling and coating.

Advantages

• Stability: PID control maintains tension stability despite load fluctuations or grid disturbances.
• Efficiency: Optimizes excitation current to reduce energy loss and operational costs.
• Durability: Industrial-grade components ensure reliable operation in harsh environments (vibration resistance V15, insulation voltage AC1500V/1min).
• Scalability: Compatible with ABB’s AC800PEC controllers, PLCs, and DCS systems for flexible system integration.
