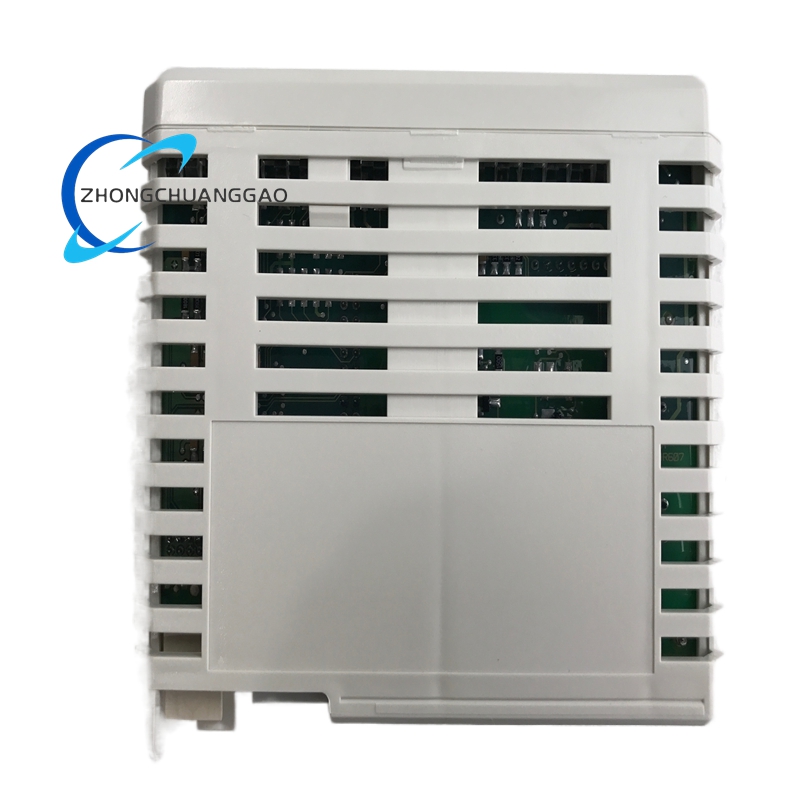

ABB NBIO-21C 3BSE017427R1 Analog Input/Output Module

Technical Specifications

• Model Number: 3BSE017427R1
• Type: Analog I/O module
• Input/Output Configuration: Supports configurable analog inputs and outputs (specific channels depend on configuration).
• Signal Types: Handles voltage and current signals (e.g., 0-10V, 4-20mA).
• Accuracy: High-precision signal processing for accurate measurement and control.
• Communication Protocols: Supports multiple industrial protocols, including Modbus, Profibus-DP, CANopen, and DeviceNET, facilitating seamless integration with various controllers and systems.
• Mounting: DIN rail mounting for easy installation in control panels.
• Operating Temperature: Suitable for industrial environments (specific range not publicly disclosed but typically -25°C to +70°C).
• Protection: Features overcurrent, overvoltage, and short-circuit protection to safeguard connected devices.

Functional Characteristics

• High Reliability: Built with industrial-grade components to ensure continuous operation in demanding environments.
• Flexible Configuration: IO functions can be configured as inputs or outputs based on user requirements, providing maximum flexibility.
• Easy Integration: Seamlessly integrates with ABB’s AC500 series PLCs and other controllers, reducing setup time and complexity.
• Precision Control: Enables precise control of analog signals, enhancing process stability and product quality.
• Diagnostic Capabilities: Features status indicators and diagnostic tools for quick troubleshooting and maintenance.
• Scalability: Supports system expansion by adding more modules as needed, accommodating future growth.

Application Scenarios

• Manufacturing: Used in production lines to monitor and control process parameters such as temperature, pressure, and flow, ensuring consistent product quality.
• Power Generation: Monitors and controls generator excitation systems, ensuring stable power output in hydro, thermal, and combined cycle power plants.
• Chemical and Process Industries: Monitors and regulates complex chemical processes, such as reaction temperatures and pressures, to maintain safety and efficiency.
• Oil and Gas: Used in upstream and downstream operations to monitor and control equipment like pumps, compressors, and heaters.
• Water Treatment: Monitors and controls water quality parameters such as pH, chlorine levels, and flow rates in treatment plants.
• Building Automation: Controls HVAC systems, lighting, and security systems in commercial buildings, enhancing energy efficiency and occupant comfort.
• Environmental Monitoring: Measures atmospheric and water quality parameters in environmental monitoring stations.

Key Advantages

• Enhanced Process Control: Precise analog signal handling improves process stability and reduces variability.
• Reduced Downtime: High reliability and diagnostic capabilities minimize maintenance time and costs.
• Cost-Effective: Easy integration and scalability reduce initial setup costs and allow for future expansion without significant investments.
• Improved Safety: Built-in protection features safeguard equipment and personnel from electrical faults.
• Versatility: Compatible with a wide range of industrial protocols and controllers, making it suitable for diverse applications.
