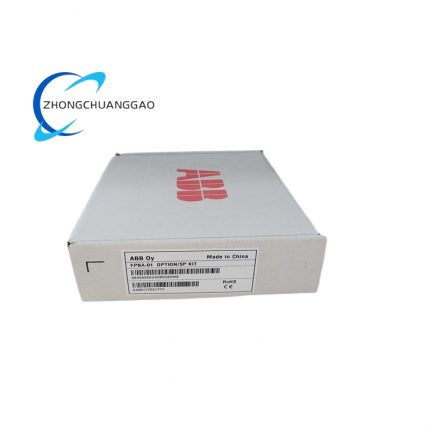

ABB FPBA-01 PROFIBUS DP Adapter Module
ABB FPBA-01 PROFIBUS DP Adapter Module

ABB FI830F 3BDH000032R1 PROFIBUS DP Fieldbus Communication Module

Product Introduction

The ABB FI830F is a high-performance, industrial-grade PROFIBUS DP communication module designed for integration into ABB’s AC 800M controller and 800xA distributed control system (DCS) platforms. It serves as a robust interface between the main control system and distributed PROFIBUS DP field devices, including sensors, actuators, drives, and remote I/O stations. Supporting PROFIBUS DP-V0 and DP-V1 protocols, this module enables deterministic, high-speed data exchange with up to 126 PROFIBUS slave devices per network segment. Engineered for mission-critical industrial environments, the FI830F features galvanic isolation, redundant master station support, and comprehensive diagnostics, ensuring reliable communication, system availability, and seamless integration in demanding process automation applications.
Category:
Description

Technical Specifications

  • Manufacturer: ABB
  • Full Model Number: FI830F (3BDH000032R1)
  • Product Series: AC 800M / 800xA
  • Product Type: PROFIBUS DP Fieldbus Communication Module
  • Supported Protocols: PROFIBUS DP-V0, PROFIBUS DP-V1 (EN 50170 / DIN 19245)
  • Data Transfer Rate: 9.6 kbps to 12 MBd (auto-baud detection)
  • Network Interface: 1 × RS-485 port (sub-D9 connector)
  • Max Slave Devices: Up to 126 PROFIBUS DP slaves per segment
  • Power Supply: 24 V DC (system backplane powered, ±10% tolerance)
  • Power Consumption: ≤ 2.5 W (typical)
  • Galvanic Isolation: 1500 V AC (between fieldbus and control system)
  • Operating Temperature: -25°C to +70°C
  • Storage Temperature: -40°C to +85°C
  • Relative Humidity: 5% – 95% RH (non-condensing)
  • Dimensions (W×H×D): 125 mm × 155 mm × 28 mm
  • Net Weight: Approximately 0.26 kg
  • Mounting: Direct backplane integration with AC 800M racks
  • Status Indicators: Multi-color LEDs for power, bus activity, slave status, and fault diagnostics
  • Certifications: CE, IEC 61131-2 compliant, ATEX (for hazardous area applications)
  • Country of Origin: Germany / Malta

Key Functional Features

  • High-Speed PROFIBUS Communication: Delivers data transfer rates up to 12 MBd with auto-baud detection, supporting real-time process control and fast data acquisition from field devices.
  • Dual Protocol Support: Implements both PROFIBUS DP-V0 (cyclic I/O data exchange) and DP-V1 (acyclic parameter access and diagnostics), ensuring compatibility with modern and legacy PROFIBUS devices.
  • Redundancy Capability: Configurable for redundant master station operation, enabling automatic failover to a backup module for uninterrupted communication in critical applications.
  • Galvanic Isolation: Provides 1500 V AC electrical isolation between the PROFIBUS network and the control system, protecting against ground loops, electrical surges, and electromagnetic interference (EMI).
  • Extensive Slave Support: Connects up to 126 PROFIBUS DP slave devices, facilitating large-scale, distributed industrial control networks.
  • Advanced Diagnostics: Features built-in LED indicators and comprehensive diagnostic data for monitoring bus health, slave device status, communication errors, and module performance, enabling proactive maintenance and rapid troubleshooting.
  • Plug-and-Play Integration: Designed for direct installation into AC 800M backplanes with automatic configuration recognition, minimizing setup time and engineering effort.
  • Industrial-Grade Durability: Constructed with rugged components to withstand extreme temperatures, vibration, and humidity, ensuring stable operation in harsh industrial environments.
  • Low Power Operation: Consumes ≤ 2.5 W of power, reducing heat generation and supporting energy-efficient system design.
  • Deterministic Performance: Ensures predictable and consistent data transmission, critical for closed-loop control and time-sensitive industrial processes.

Typical Application Scenarios

  • Process Automation (DCS): Integrates AC 800M controllers with PROFIBUS-based field devices in oil refineries, chemical plants, and pharmaceutical manufacturing facilities for real-time process control and monitoring.
  • Manufacturing Automation: Connects PLCs, variable frequency drives (VFDs), and remote I/O systems in automotive assembly lines, packaging machinery, and material handling equipment.
  • Power Generation & Distribution: Enables communication between control systems and PROFIBUS-enabled devices in thermal, hydro, and renewable power plants for turbine control, generator monitoring, and substation automation.
  • Water & Wastewater Treatment: Provides network connectivity for pump stations, filtration systems, and process controllers in municipal and industrial water facilities, supporting remote operation and data logging.
  • Mining & Mineral Processing: Facilitates reliable communication between surface and underground control systems, crushers, mills, and conveyor drives in harsh mining environments.
  • Oil & Gas Industry: Integrates PROFIBUS devices for wellhead control, pipeline monitoring, and refinery processes, ensuring safe and efficient operation in offshore and onshore facilities.
  • Marine & Offshore: Supports PROFIBUS communication for shipboard automation, dynamic positioning systems, and offshore platform control in marine applications.
  • Food & Beverage Production: Connects batch processing controllers, packaging lines, and quality inspection systems to central control systems, ensuring compliance with regulatory standards and traceability.
