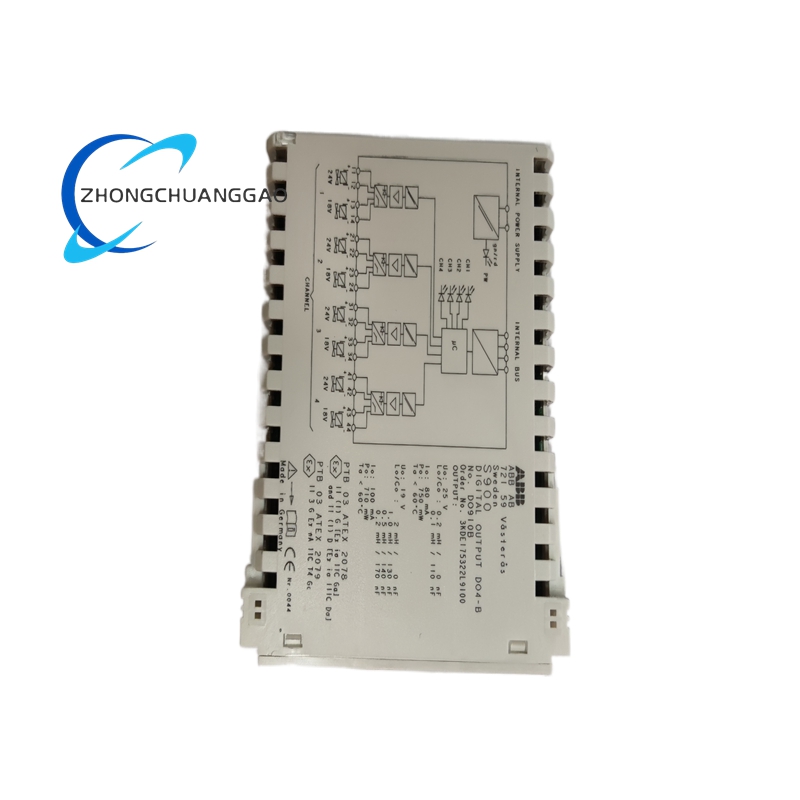

ABB DO910 Digital Output Module

Technical Specifications

• Brand: ABB
• Model: DO910 (also available in variants like DO910B, DO910N, DO910S)
• Output Type: Typically relay output, but may vary depending on the specific variant
• Number of Channels: The number of channels can vary, but common configurations include 8 or 16 channels
• Electrical Parameters:
  • Operating Temperature: -30°C to +65°C (or similar, depending on the variant)
  • Storage Temperature: -40°C to +85°C (or similar, depending on the variant)
  • Maximum Current: Typically < 1 mAdc (specific values may vary depending on the application)
  • Humidity: Up to 95%, non-condensing
• Isolation: Each channel is independently electrically isolated, improving system resistance to environmental interference and enhancing reliability.
• Status Indicators: Front-mounted LED indicators for each channel display the output status (activated/deactivated), facilitating easy debugging and fault diagnosis.
• Communication Protocol: Supports various industrial communication protocols for seamless integration with different automation products.

Functional Characteristics

• High Precision: Accurately converts discrete control signals into switch signals, enabling precise control over field devices.
• Stable and Reliable: Designed for long-term stable operation in harsh industrial environments, ensuring continuous system performance.
• Multi-Channel Design: The ability to monitor and control multiple signals simultaneously enhances the system’s parallel processing capabilities.
• Flexible Configuration: Supports various digital output types and can be configured according to specific application requirements, providing flexibility in controlling different types of actuators.
• Easy Installation and Maintenance: The module’s compact design and standard DIN rail mounting facilitate easy installation and replacement. Status indicators simplify troubleshooting and maintenance procedures.
• Industrial-Grade Design: Withstands vibrations, electromagnetic interference, and other harsh conditions commonly found in industrial settings.
• Diagnostics and Monitoring: The module typically has diagnostic functions to monitor output status, detect faults, and provide alarms, aiding in quick fault resolution and maintenance.

Application Scenarios

• Motor Control: The DO910 module can control the start, stop, and operational status of motors by driving motor control circuit contactors or relays.
• Valve Control: In industries such as chemicals and water treatment, the module can remotely control the opening and closing of valves, ensuring precise process control.
• Lighting Control: In intelligent buildings or industrial plants, the module can manage the switching of lighting equipment for automated lighting control.
• Alarm Systems: The module can be connected to alarm devices like sound and light alarms, triggering alarms when the system detects abnormalities.
• Automated Production Line Equipment: On automated production lines, the module can control various actuators such as cylinders and electromagnets to achieve automated production process control.
• Industrial Robot Auxiliary Equipment: In industrial robot applications, the module can control robot auxiliary devices like fixtures and conveyor belts.
