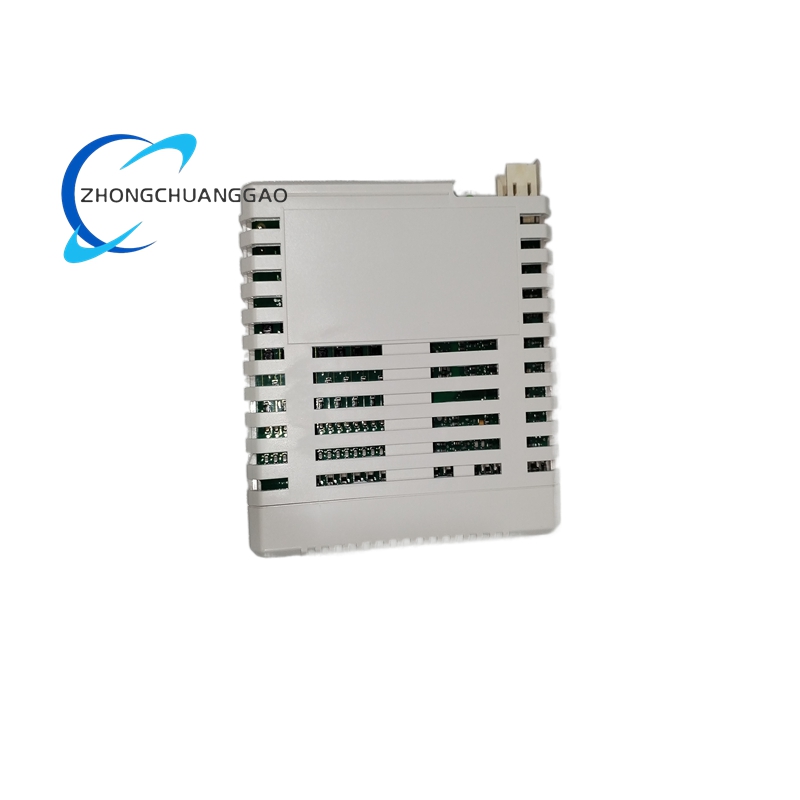

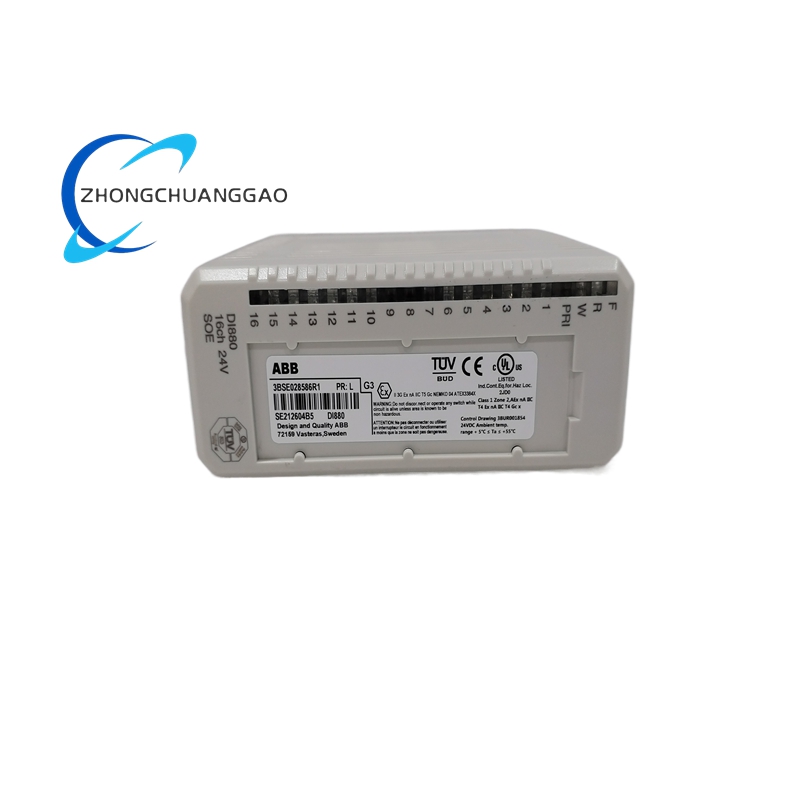

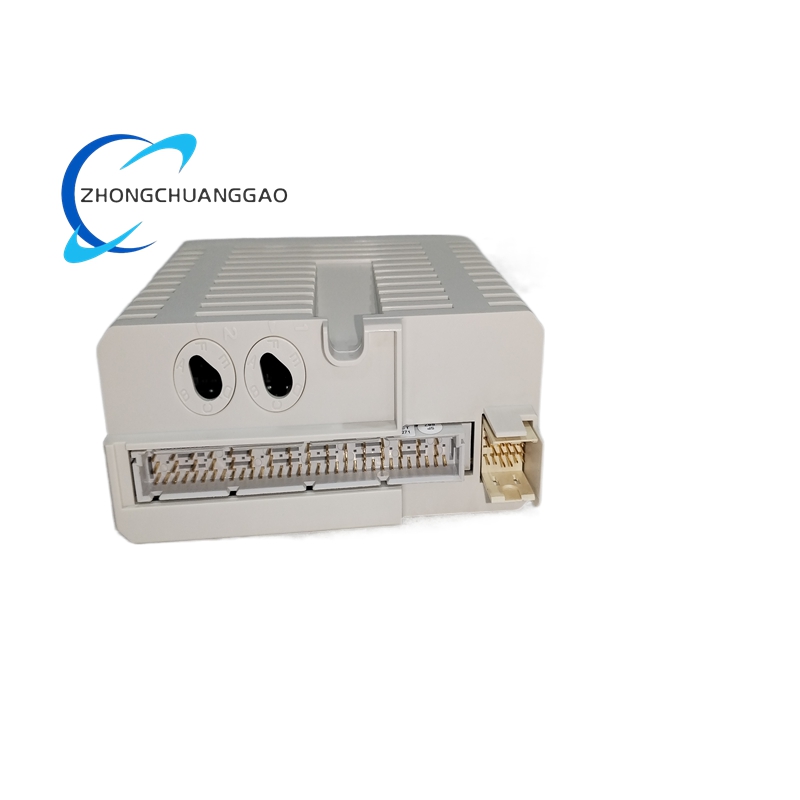

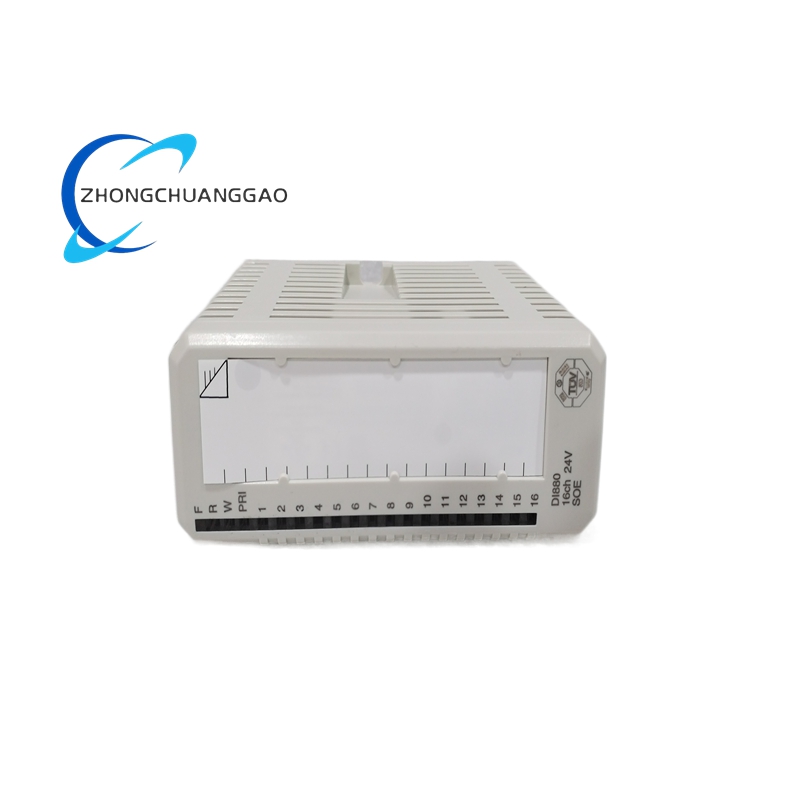

ABB DI880 Digital Input Module

• Input Voltage Range: 18 to 30 V DC
• Input Current: 6 mA (at 24 V DC)
• Input Configuration: The inputs are divided into two separate isolated groups, each containing eight channels and a voltage monitoring input.
• Response Time: ≤ 8 ms
• Power Consumption: 1.8 W
• Current Consumption:
  • +5 V module bus: 50 mA
  • +24 V module bus: 0 mA
• Isolation: Channel-to-channel isolation voltage of 500 V AC; channel-to-system isolation voltage of 1500 V AC
• Communication Interface: Standard PROFIBUS DPV1 fieldbus protocol
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -40°C to 85°C
• Humidity: 5% to 95% (non-condensing)
• Protection Level: IP20
• Dimensions: 90 mm × 68 mm × 25 mm
• Weight: Approximately 0.15 kg

Functional Characteristics

• High Reliability: Built with industrial-grade components to ensure stable and continuous operation in harsh industrial environments.
• Flexible Configuration: Each of the 16 input channels can be independently configured as sink or source, providing flexibility to meet diverse application needs.
• Voltage Monitoring: The module includes voltage monitoring inputs that generate channel error signals when voltage is lost. These signals can be read via the module bus.
• Channel Status Indicators: Green and red LED indicators provide clear visual feedback on the status of each input channel, simplifying maintenance and monitoring.
• Robust Diagnostic Capabilities: The module supports line break detection and short-circuit alarm functions, facilitating quick fault identification and troubleshooting.
• High-Speed Data Processing: The module’s rapid response time ensures real-time control and monitoring, enhancing system responsiveness and efficiency.
• Hot Swapping: The module supports hot swapping, allowing for easy replacement during operation without affecting other modules’ communication.

Application Scenarios

• Process Control: Monitors and controls parameters in industrial processes, such as temperature, pressure, and flow, ensuring optimal operation and safety in chemical, pharmaceutical, and food and beverage production.
• Machine Control: Used in machine control systems to monitor the status of motors, servo drives, and other equipment, enabling precise control and fault detection in CNC machines, robotic arms, and specialized equipment.
• Discrete Manufacturing: Detects the position and status of products in manufacturing lines, supporting automated production processes in automotive, electronics, and packaging industries.
• Energy Management: Monitors and controls switching devices in power distribution systems and renewable energy installations, enhancing energy efficiency and reliability.
• Water Treatment: Controls pumps, valves, and other equipment in water and wastewater treatment facilities, ensuring efficient and safe operation.
• Building Automation: Regulates HVAC, lighting, and security systems in intelligent buildings through digital input interfacing, improving energy efficiency and comfort.
