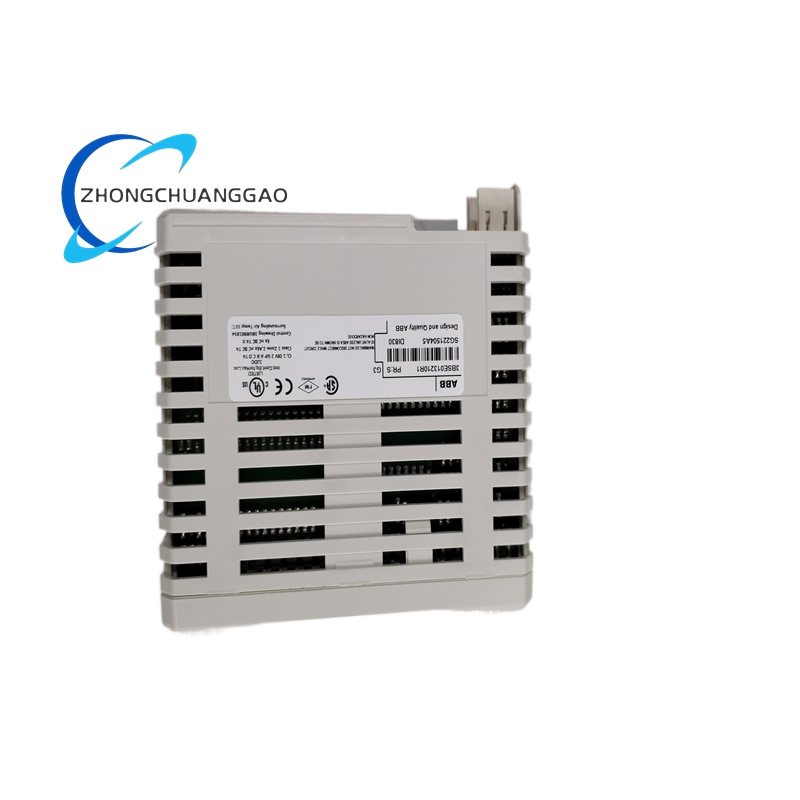

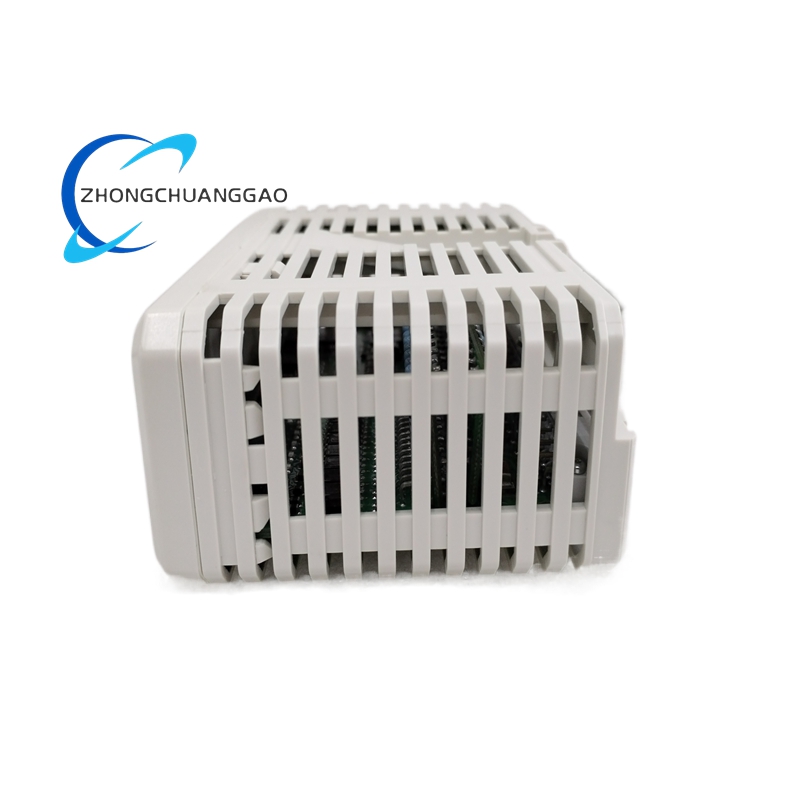

ABB DI830 Digital Input Module

Technical Specifications

• Input Channels: The DI830 typically features 16 digital input channels, divided into two groups of eight channels each. Each group has a voltage monitoring input to detect voltage loss.
• Input Voltage Range: The module operates with an input voltage range of 18 to 30 volts DC, with a nominal input voltage of 24 volts DC.
• Input Current: The input current is approximately 6 milliamperes at 24 volts DC.
• Isolation: Each input channel is optically isolated from the others and from the module’s power supply, providing enhanced resistance to environmental interference.
• Signal Type: The module accepts digital signals in the form of current sinking (logic 0) or current sourcing (logic 1), depending on the configuration.

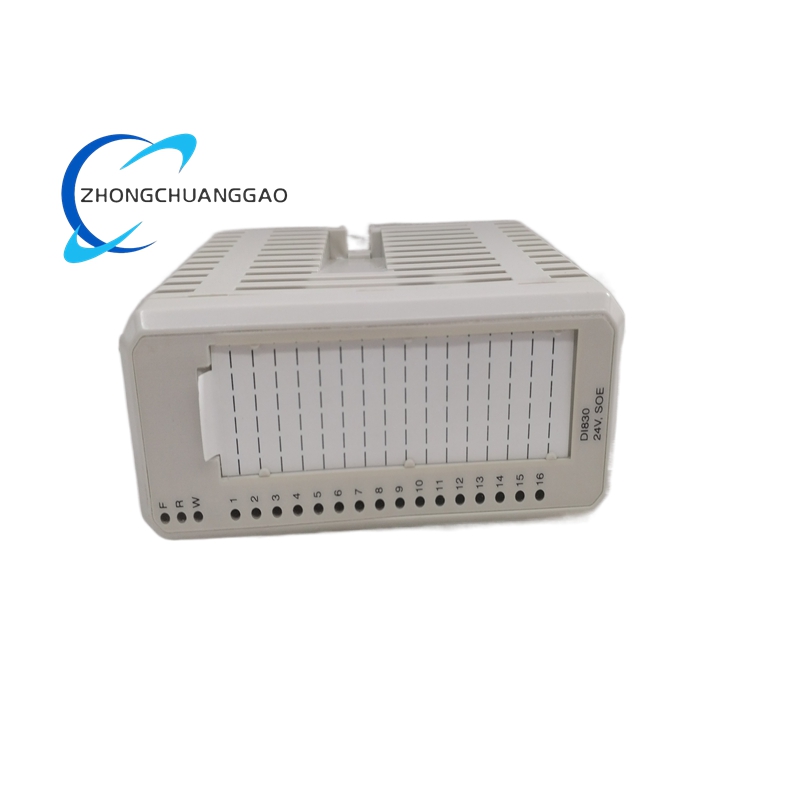

• Status Indicators: Front-mounted LED indicators provide visual feedback on the module’s status, including power (R for Run), faults (F for Fault), and the state of each input channel.
• Environmental Conditions: The DI830 is designed to operate in harsh industrial environments, with an operating temperature range of 0 to +55 degrees Celsius and a storage temperature range of -40 to +70 degrees Celsius. It complies with various environmental standards, including IEC 61131-2, UL 61010-1, and ATEX Zone 2.
• Protection Rating: The module has an IP20 protection rating according to IEC 60529, indicating resistance to dust and limited protection against water ingress.
• Dimensions and Weight: The DI830 has compact dimensions, with a width of 45 millimeters, a depth of 102 millimeters (111 millimeters including the connector), and a height of 119 millimeters. It weighs approximately 0.15 kilograms.

Functional Characteristics

• High Precision: The DI830 accurately receives and processes digital signals, enabling precise control and monitoring of industrial processes.
• Stable and Reliable: Designed for long-term stable operation, the module reduces the likelihood of failures and ensures continuous system performance.
• Multi-Channel Design: The ability to monitor multiple signals simultaneously enhances the system’s parallel processing capabilities.
• Flexible Configuration: The module supports various digital signal inputs, allowing adaptation to different types of industrial automation applications.
• Easy Installation and Maintenance: The plug-in design simplifies installation and maintenance procedures, saving time and costs.
• Diagnostics and Monitoring: Built-in diagnostic functions and status indicators facilitate quick troubleshooting and maintenance.
• Overvoltage Protection: The module provides protection against voltage surges, safeguarding connected devices and ensuring system safety.

Application Scenarios

• Industrial Automation: The DI830 is widely used in industrial automation systems for monitoring switch states, sensor signals, and level signals. It plays a vital role in ensuring the efficient and safe operation of manufacturing processes.
• Process Control: In process control systems, the module monitors various parameters such as temperature, pressure, and flow rate, enabling precise control and optimization of industrial processes.
• Power Generation: Utilized in power generation plants to monitor and control the operation of generators and other power equipment, ensuring stable and efficient power supply.
• Water Treatment: In water treatment facilities, the module regulates the inlet and outlet water flow, maintaining biochemical reaction efficiency and ensuring water quality.
• Petrochemical Industry: The DI830 is extensively used in the petrochemical industry for controlling and monitoring various processes, including refining and chemical production, due to its high precision and reliability.
• Machine Safety Monitoring: In some configurations, the DI830 may also be used for machine safety monitoring, ensuring that equipment operates within safe parameters and triggering alarms or shutdowns in case of abnormalities.
