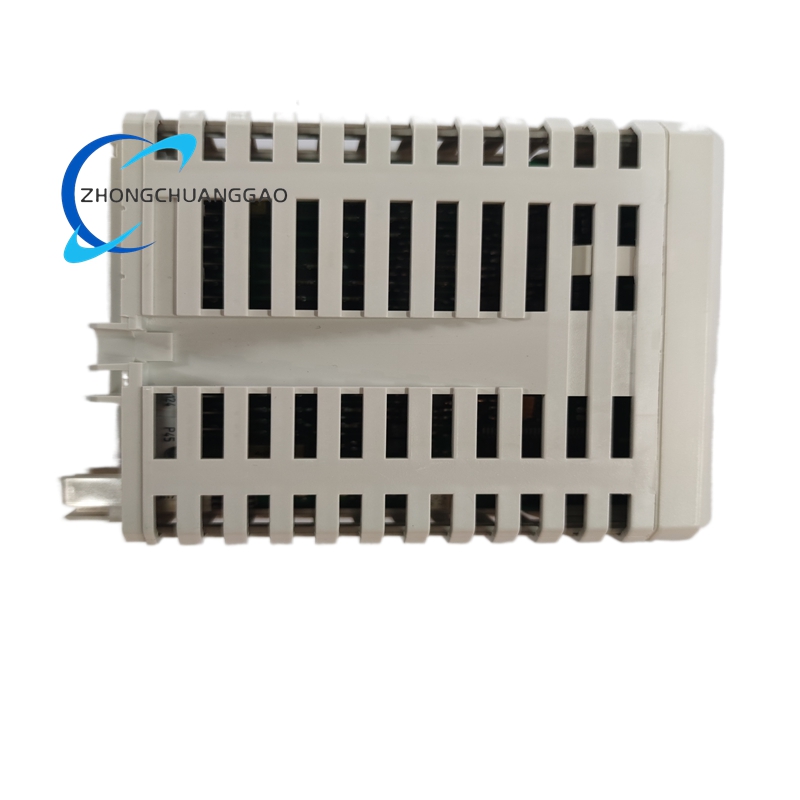

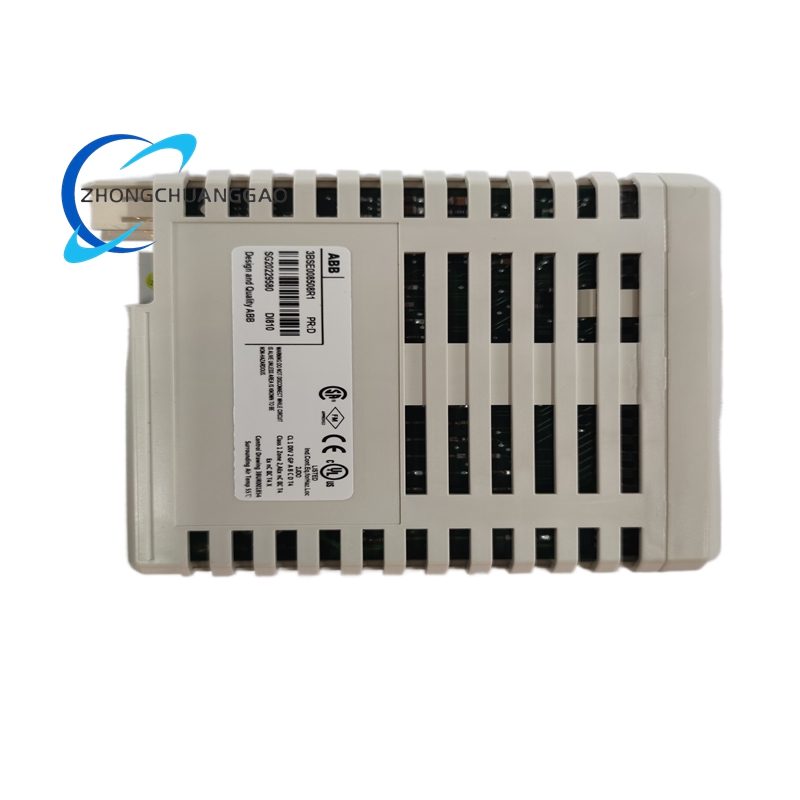

ABB DI810 HIES308461R0012 16-Channel 24 VDC Digital Input Module

Technical Specifications

• Product Type: 16‑Channel 24 VDC Digital Input Module (DI810, S800 I/O Series)
• Part Number: HIES308461R0012 (DI810)
• System Compatibility: ABB AC 800M Controllers, System 800xA DCS, Compact Product Suite, S800 I/O Racks
• Number of Input Channels: 16 channels (2 isolated groups of 8 channels)
• Input Signal Type: 24 VDC current‑sinking (Type 1 per EN 61131‑2)
• Input Voltage Range: 15–30 VDC (nominal 24 VDC)
• Input Current: 6 mA per channel at 24 VDC
• Input Impedance: 3.5 kΩ per channel
• Isolation Rating: 1500 Vrms channel‑to‑channel and group‑to‑ground galvanic isolation
• Signal Filtering: Configurable digital filter (0.1–32 ms) for debouncing and noise suppression
• Input Protection: Over‑voltage protection, current limiting, EMC compliance (IEC 61000‑4‑4 Level 4, IEC 61000‑4‑5 Level 3)
• Diagnostics: Per‑channel status monitoring, group voltage supervision, open/short circuit detection, hardware fault detection
• Hot‑Swap Capability: Full hot‑swap support for online replacement without system shutdown
• Power Supply: 24 VDC backplane‑powered via S800 Modulebus
• Power Consumption: 1.8 W (typical)
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5%–95% (non‑condensing)
• Vibration Resistance: IEC 60068‑2‑6 compliant (10–2000 Hz, 2 g peak)
• Shock Resistance: IEC 60068‑2‑27 compliant (15 g, 11 ms duration)
• Protection Rating: IP20 (cabinet‑mounted)
• Mounting: Standard 35 mm DIN rail mounting, compatible with S800 I/O racks
• Dimensions: 45 mm (Width) × 119 mm (Height) × 102 mm (Depth)
• Net Weight: 0.2 kg
• Termination Compatibility: TU810, TU812, TU814, TU830, TU838 termination units
• Certifications: CE, UL 508, EN 61131‑2, IEC 61000‑4‑2/3/4/5/6, RoHS compliant
• Warranty: 12 months

Key Features

• 16‑Channel Isolated Inputs: Delivers 16 independent 24 VDC inputs split into two electrically isolated groups, eliminating ground loops and ensuring signal integrity in noisy industrial environments.
• Wide Voltage Input Range: Accepts 15–30 VDC signals, providing flexibility and reliable operation even with voltage drops in long field wiring runs.
• Configurable Signal Filtering: Built‑in digital filter (0.1–32 ms) eliminates mechanical contact bounce and electromagnetic interference, preventing false signal triggers.
• Advanced Diagnostics: Real‑time monitoring of input status, group voltage, open/short circuits, and module health; LED indicators for each channel enable quick visual troubleshooting.
• Hot‑Swap Design: Allows online module replacement without powering down the control system, minimizing maintenance downtime and production interruptions.
• High EMC Immunity: Certified to IEC 61000‑4‑4 Level 4 (EFT/Burst) and IEC 61000‑4‑5 Level 3 (Surge), ensuring stable operation in environments with high electromagnetic noise.
• Low Power Consumption: Typical power draw of 1.8 W reduces heat generation in dense I/O cabinets, enhancing system reliability and energy efficiency.
• Seamless S800 Integration: Directly mounts into S800 I/O racks and communicates via the Modulebus, supporting plug‑and‑play installation and configuration with ABB control systems.
• Per‑Channel LED Indicators: Each channel features a dedicated yellow LED that illuminates when the input signal is active (logic 1), providing immediate visual feedback.
• Group Voltage Supervision: Each 8‑channel group includes a voltage monitoring input, ensuring power supply integrity and alerting to voltage anomalies.
• Robust Industrial Construction: Rugged design withstands extreme temperatures, vibration, and shock, ensuring long‑term reliability in demanding industrial settings.

Application Scenarios

Power Generation & Distribution

• Thermal Power Plants: Monitors boiler safety interlocks, turbine trip signals, feedwater pump status, and valve position feedback switches.
• Hydroelectric & Nuclear Power Plants: Acquires signals from penstock gate limit switches, turbine governor position sensors, and reactor safety system contacts.
• Renewable Energy: Monitors wind turbine pitch control limit switches, solar inverter grid connection status, and battery energy storage system (BESS) safety interlocks.
• High‑Voltage Substations: Provides input for switchgear position indicators, circuit breaker status, and protection relay trip signals.

Oil & Gas Industry

• Refineries & Petrochemical Plants: Monitors distillation column level switches, pump run/stop status, emergency shutdown (ESD) pushbuttons, and valve limit switches.
• Offshore Platforms: Acquires signals from wellhead safety interlocks, pipeline pressure switches, and fire/gas detection system contacts.
• LNG Terminals: Monitors cryogenic tank level switches, loading arm position sensors, and vapor recovery unit status.
• Upstream Exploration: Provides input for drilling rig safety interlocks, wellhead valve position, and pipeline pressure monitoring switches.

Chemical & Pharmaceutical Manufacturing

• Chemical Processing Plants: Monitors reactor pressure relief switches, material transfer pump status, batch process interlocks, and safety door limit switches.
• Pharmaceutical Production: Acquires signals from cleanroom access interlocks, sterile equipment run/stop status, and batch manufacturing system limit switches.
• Specialty Chemicals & Fertilizers: Monitors ammonia synthesis loop safety interlocks, granulation equipment status, and storage silo level switches.

Metals, Mining & Minerals

• Steel Mills: Provides input for blast furnace safety interlocks, rolling mill load cell limit switches, conveyor belt emergency stop buttons, and furnace door position sensors.
• Mining Operations: Monitors ore crusher run/stop status, conveyor belt safety switches, underground ventilation system interlocks, and mineral processing equipment limit switches.
• Aluminum Smelters: Acquires signals from potline safety interlocks, anode effect detection system contacts, and cooling water flow switches.

Water & Wastewater Treatment

• Municipal Water Treatment: Monitors pump run/stop status, filter backwash limit switches, water level sensors, and disinfection system interlocks.
• Wastewater Treatment Plants: Provides input for aeration basin dissolved oxygen (DO) switch status, sludge dewatering equipment run/stop, and effluent treatment system interlocks.
• Desalination Plants: Monitors reverse osmosis (RO) system pressure switches, pump status, and brine disposal valve limit switches.

Manufacturing & Automation

• Automotive Production: Acquires signals from assembly line robot safety interlocks, welding machine run/stop status, paint shop equipment limit switches, and conveyor belt emergency stop buttons.
• Food & Beverage Processing: Monitors pasteurization temperature switch status, filling machine run/stop, packaging line sensors, and storage tank level switches.
• Electronics Manufacturing: Provides input for SMT line safety interlocks, cleanroom access switches, and semiconductor manufacturing equipment limit switches.

Building & Infrastructure Automation

• Data Centers: Monitors UPS system status, cooling system pump run/stop, and critical infrastructure safety interlocks.
• Hospitals & Healthcare Facilities: Acquires signals from medical equipment safety interlocks, HVAC system status, and life safety system contacts.
• Commercial Buildings: Provides input for building management system (BMS) sensors, fire protection system contacts, and access control limit switches.

OEM & Process Skid Integration

• Process Skid Manufacturers: Integrates into skid‑mounted systems (mixing, blending, filtration) for pharmaceutical, food, and chemical industries, providing reliable digital input monitoring.
• Test & Measurement Systems: Used in industrial test rigs for monitoring switch status, limit sensor feedback, and equipment safety interlocks.
