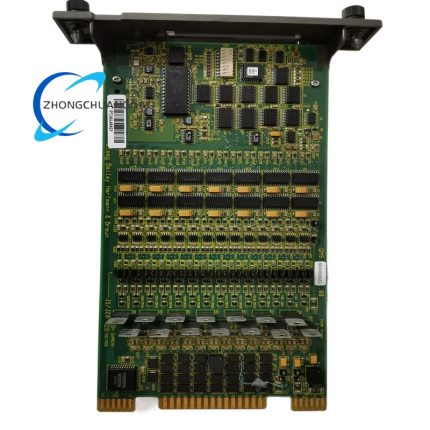

ABB D685A1156U01 Universal I/O Module

Technical Specifications

• I/O Channels: 16 universal channels configurable for analog or digital signals.
• Analog Input:
  • Signal Types: 4-20mA (input impedance 250Ω), 0-10V (input impedance 10MΩ).
  • Resolution: 16-bit.
  • Accuracy: ±0.1% full scale.
• Analog Output:
  • Signal Type: 4-20mA.
  • Load Capacity: 0-500Ω.
  • Resolution: 16-bit.
  • Accuracy: ±0.1% full scale.
• Digital Input:
  • Voltage: 24V DC.
  • Input Types: PNP/NPN.
  • Response Time: ≤1ms.
• Digital Output:
  • Type: Relay output (5A@250V AC/30V DC).
  • Response Time: ≤10ms.
• Sampling Rate: 250 samples per second for real-time signal acquisition.
• Communication Protocol: Supports Modbus RTU for integration with third-party devices.
• Communication Interface: RS-485 port with a transmission rate of up to 115200bps.
• Power Supply: 24V DC ±10%, with a power consumption of 10W.
• Operating Temperature: -20°C to +60°C (storage temperature: -40°C to +80°C).
• Relative Humidity: 0% to 95% (non-condensing).
• Protection Class: IP66, ensuring resistance to dust and water splashes.

Functional Characteristics

• Signal Flexibility: The module supports both analog and digital signals, allowing flexible configuration based on field device requirements.
• High Precision: With 16-bit resolution and ±0.1% accuracy, it ensures precise signal conversion and measurement.
• Real-Time Performance: A 250 samples-per-second sampling rate enables timely capture of dynamic process changes.
• Seamless Integration: Compatible with ABB’s System 800xA series and other control systems, facilitating easy system expansion and upgrades.
• Robust Design: Built to withstand harsh industrial conditions, including temperature extremes, humidity, and dust.
• Energy Efficiency: Low power consumption of 10W reduces operational costs.
• Easy Maintenance: The IP66 protection class simplifies cleaning and maintenance, extending the module’s service life.

Application Scenarios

• Petrochemical Industry: Monitors and controls reaction towers and pipelines by integrating temperature sensors (4-20mA) and pressure transmitters (0-10V), ensuring stable product quality.
• Wastewater Treatment: Collects data from water quality monitoring instruments (e.g., COD sensors) via analog inputs and controls chemical dosing pumps through analog outputs, achieving precise water treatment.
• Power Generation: Manages motor control systems in power plants, enabling real-time monitoring of equipment status and adjusting operational parameters for optimal efficiency.
• Marine Systems: Monitors and controls various onboard equipment, such as pumps and valves, ensuring safe and efficient vessel operation.
• Manufacturing Automation: Integrates with PLCs and DCS systems to manage production lines, improving process efficiency and product quality.

Key Advantages

• Versatility: Supports a wide range of signal types, reducing the need for multiple modules.
• Reliability: High-precision measurement and robust design ensure consistent performance in demanding environments.
• Scalability: Easily integrates with existing control systems, supporting system expansion and upgrades.
• Cost-Effectiveness: Low power consumption and long service life reduce total cost of ownership.
