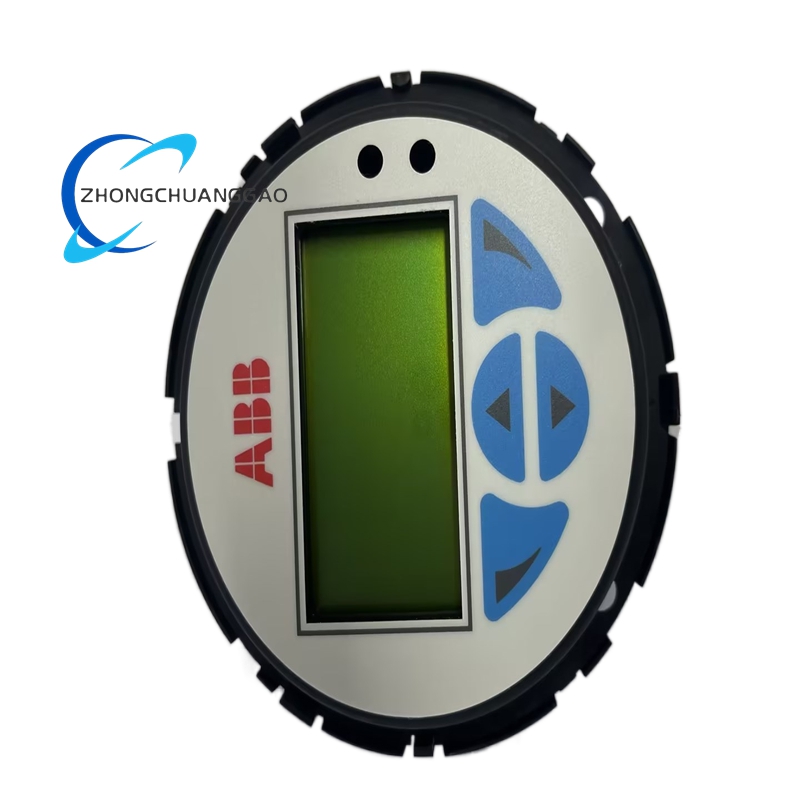

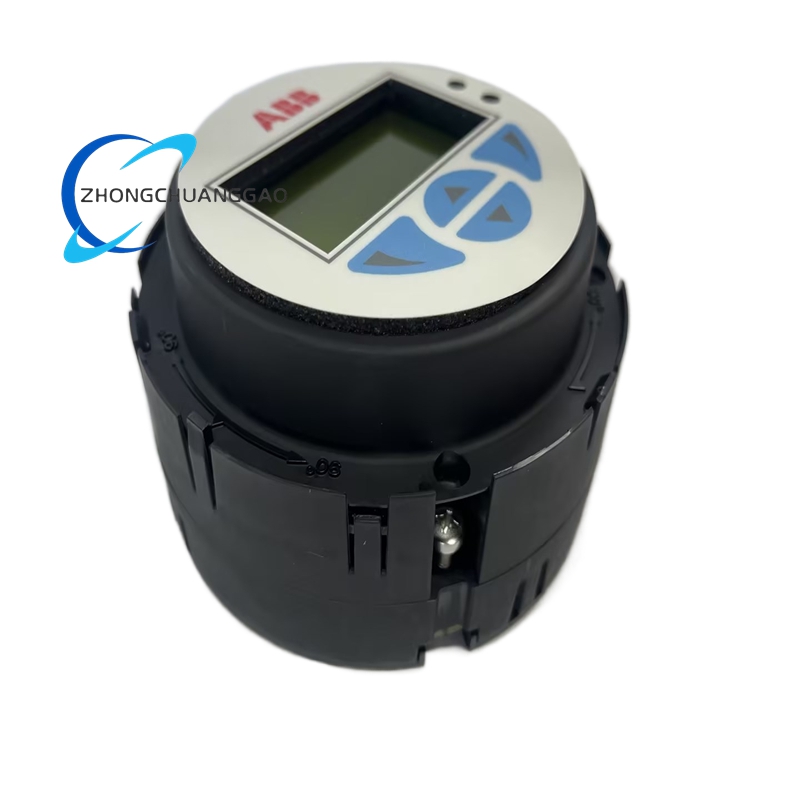

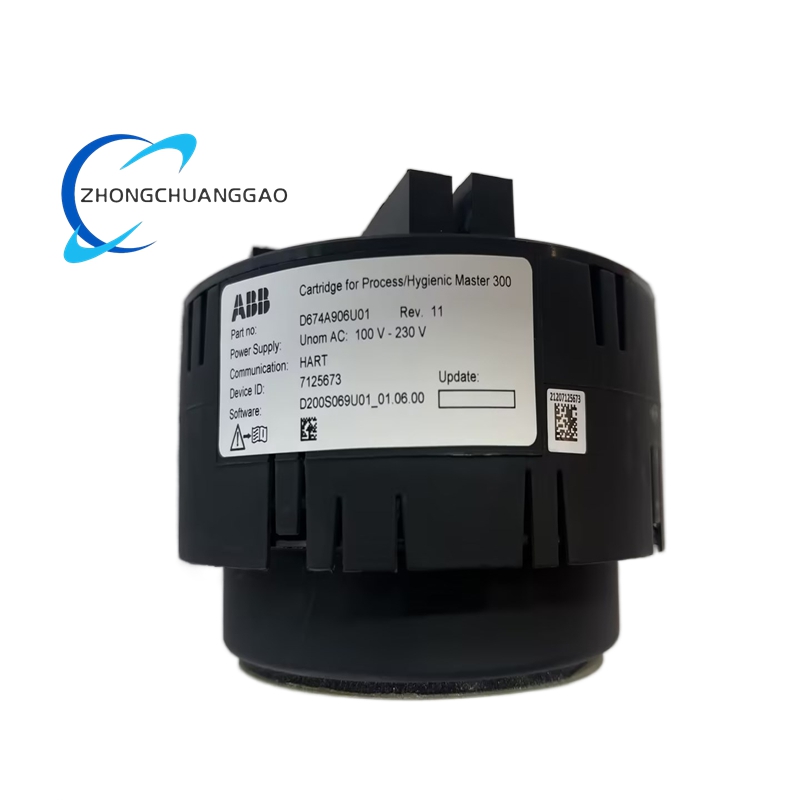

ABB D674A906U01 Flow Meter Transmitter Module

• Output Signal: 4-20mA DC, compatible with mainstream control systems for seamless integration.
• Power Supply: 24V DC, with low power consumption design for energy efficiency.
• Power Consumption: Less than 10W, contributing to reduced operational costs.
• Operating Temperature: -40°C to +85°C, suitable for extreme industrial conditions.
• Protection Class: IP67, providing dust-tight and waterproof protection.
• Communication Interfaces: Supports HART, Modbus, and Profibus protocols for versatile system integration.
• Dimensions: 150mm x 85mm x 50mm, compact design for easy installation and space-saving.

Functional Characteristics

• High Precision Measurement: Utilizes advanced signal processing technology to achieve accurate flow measurement, reducing errors and enhancing data reliability.
• Multi-Sensor Support: Compatible with various sensor technologies, including turbine, electromagnetic, and ultrasonic sensors, allowing flexible adaptation to different media characteristics.
• Temperature and Pressure Compensation: Built-in temperature and pressure sensors automatically adjust flow measurements to account for changes in fluid parameters, ensuring stability in complex conditions.
• Self-Diagnosis and Fault Warning: Continuously monitors sensor status and detects abnormalities such as blockages, leaks, or signal interference, providing timely alerts to reduce maintenance costs.
• Remote Configuration and Monitoring: Enables remote parameter adjustment and real-time data viewing via HART or Modbus protocols, facilitating intelligent operation and maintenance.
• Explosion-Proof Design: Certified for use in hazardous environments, ensuring safety in explosive atmospheres.

Application Scenarios

• Petrochemical Industry: Used for monitoring crude oil flow in pipelines, ensuring stable operation under high-temperature, high-pressure, and corrosive conditions. Its IP67 protection and explosion-proof design guarantee safety and reliability.
• Wastewater Treatment: Controls inlet and outlet water flow to maintain biochemical reaction efficiency. The module’s ultrasonic sensor technology enables non-contact measurement, preventing sensor contamination from sewage impurities.
• Food and Beverage Industry: Meets hygienic requirements in aseptic filling lines, avoiding product contamination. Its food-grade stainless steel construction supports CIP and SIP, ensuring compliance with sanitary standards.
• Power Generation: Monitors water flow in cooling systems to optimize thermal efficiency. The module’s wide temperature range and corrosion resistance make it suitable for long-term operation in power plants.
• Mining Industry: Tracks slurry flow in mineral processing, withstanding abrasive and high-solid-content media. Its robust design ensures durability in harsh mining environments.
