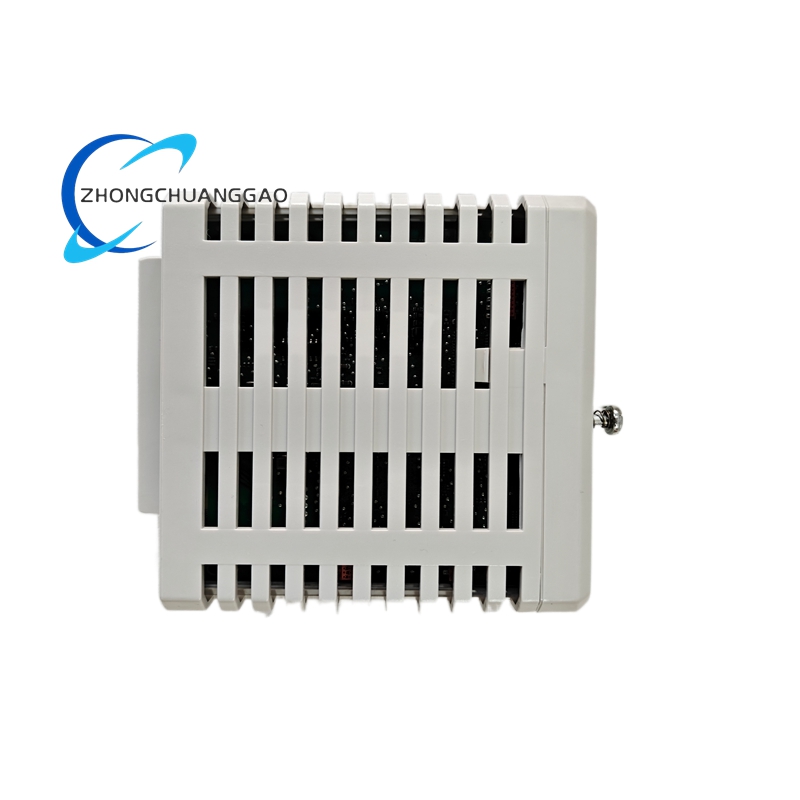

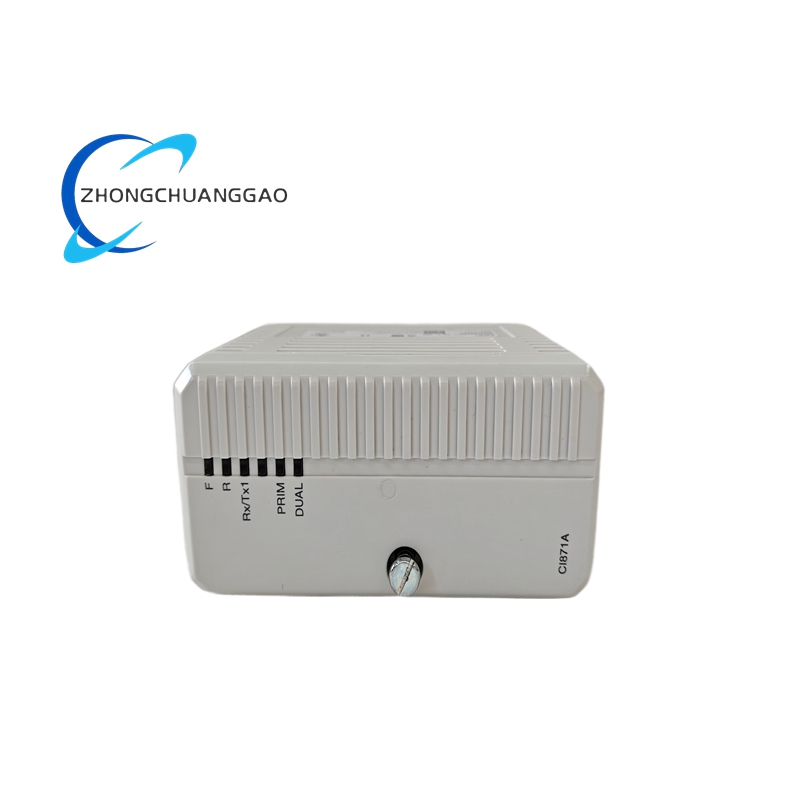

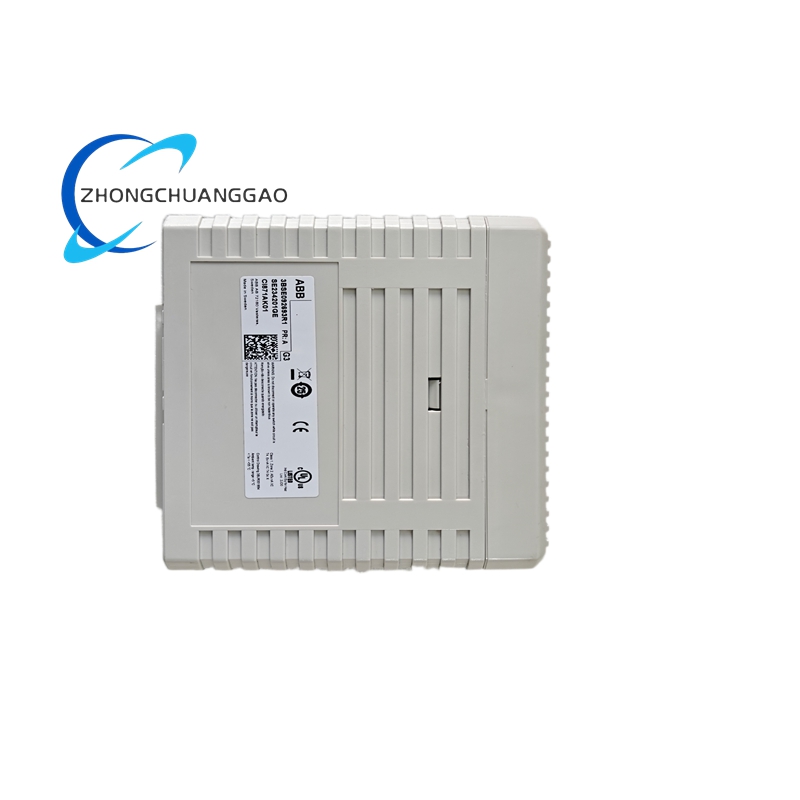

ABB CI871AK01 3BSE092693R1 Communication Interface Module

• Communication Rate: Up to 12 Mbps, with automatic baud rate detection for compatibility with various network speeds.
• Interface Types:
  • 1 x PROFIBUS D-sub 9-pin connector for PROFIBUS communication.
  • 1 x RJ45 Ethernet interface (CH1 channel only), supporting V2.3/V2.4 standards for PROFINET IO connectivity.
• Installation: Can be mounted on DIN rails or in dedicated 800xA system racks.
• Power Supply: Powered by the system backplane, eliminating the need for external power sources.
• Operating Temperature Range: -25°C to +70°C, ensuring reliable operation in harsh industrial conditions.
• Protection Class: IP20, providing basic protection against dust and accidental contact.
• Dimensions: 59 mm (width) x 186 mm (height) x 127.5 mm (depth).
• Weight: 0.7 kg.

Functional Characteristics

• High-Speed Data Transmission: Enables fast and stable data exchange through Modbus TCP/IP and PROFIBUS-DP protocols, meeting the demands of real-time industrial applications.
• Multi-Protocol Compatibility: Supports a wide range of industrial protocols, facilitating integration with diverse automation equipment and systems.
• Remote Management: Allows for remote monitoring and diagnostics, enhancing system maintenance efficiency and reducing downtime.
• Flexible Expansion: Modular design simplifies maintenance and upgrades, while also offering strong scalability to meet evolving industrial needs.
• Industrial-Grade Reliability: Built with robust components and featuring strong anti-interference capabilities, ensuring stable operation in demanding industrial environments.
• Integrated Operating System: Runs on the NuttX embedded operating system, providing powerful processing capabilities for complex algorithms and real-time monitoring tasks.

Application Scenarios

• Process Automation: Widely used in industries such as petroleum, chemicals, pharmaceuticals, and metallurgy for process control and monitoring.
• Power Systems: Applied in power plants and substations for remote monitoring and data acquisition, ensuring efficient and safe power generation and distribution.
• Manufacturing Automation: Utilized in smart manufacturing and industrial robot control systems to enhance production efficiency and precision.
• Water Treatment Systems: Plays a crucial role in water quality monitoring and pump control in sewage treatment plants and waterworks, enabling remote monitoring and data communication.
• Building Automation: Controls lighting, air conditioning, and security systems in buildings, adjusting lighting brightness based on ambient light levels and controlling air conditioning operation according to temperature changes.
• Logistics Management: Facilitates data collection in automated warehouses and conveyor belt systems, monitoring cargo positions and quantities to automate logistics processes.
