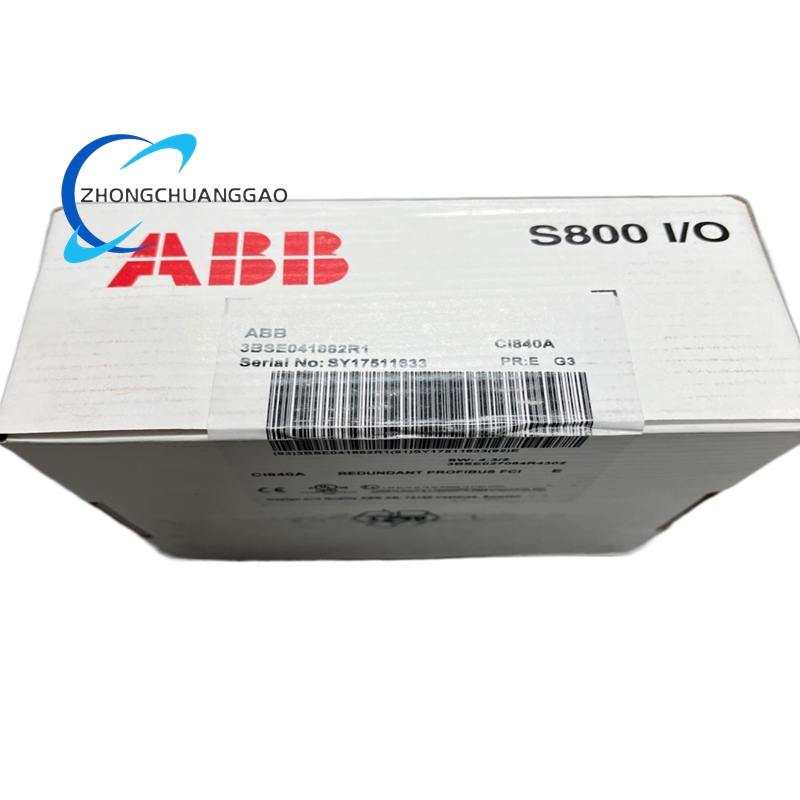

ABB CI840A PROFIBUS DP Communication Module

• Communication Protocol: PROFIBUS DP (Decentralized Periphery)
• Baud Rate: Automatically detects and matches the PROFIBUS network master’s speed (from 9.6 Kbps to 12 Mbps)
• Connector: 9-pin D-sub connector for PROFIBUS DP network cable connection
• Electrical Isolation: Provides isolation between the PROFIBUS interface and the system backplane to protect against electrical interference and faults
• Processor: Integrated high-performance processor for efficient data handling
• Memory: Supports firmware upgrades and configuration storage
• Status Indicators: LED lights for module status (OK, Run, Fail)
• Configuration: Requires ABB’s Control Builder M engineering software for hardware setup and parameter tuning
• Dimensions: 132 mm x 105 mm x 52 mm
• Weight: 800 grams
• Mounting: 35 mm DIN rail
• Operating Temperature: -20°C to +70°C (extended range available)
• Storage Temperature: -40°C to +80°C
• Relative Humidity: ≤90% (non-condensing)
• Certifications: Complies with IEC 61000-4-2 (ESD), IEC 61000-4-3 (RS), IEC 61000-4-4 (EFT), IEC 61000-4-5 (Surge), IEC 61000-4-6 (CS), and IEC 61000-4-8 (MS)

Functional Characteristics

• High-Speed Communication: Supports PROFIBUS DP protocol for fast and reliable data transfer between controllers and field devices.
• Flexible Configuration: Can be configured as a PROFIBUS DP master or slave, enabling integration with various devices and systems.
• Redundancy Support: Supports redundant configurations for enhanced system availability and fault tolerance.
• Data Processing: Capable of handling large volumes of I/O data (up to 8192 bytes input/output) for distributed control applications.
• Diagnostics: Provides comprehensive diagnostic information through Control Builder M, facilitating quick troubleshooting and maintenance.
• Hot Swapping: Designed for hot plugging, allowing module replacement without system shutdown (with proper authorization).
• Industrial Design: Robust construction with IP30-rated aluminum housing for protection against dust, vibration, and electromagnetic interference.

Application Scenarios

• Power Generation: Used in power plants for monitoring and controlling boiler auxiliary systems, turbines, and generators.
• Oil and Gas: Applied in upstream and downstream operations for process control, safety systems, and pipeline monitoring.
• Chemical Processing: Controls reaction parameters such as temperature, pressure, and concentration in chemical plants.
• Water Treatment: Monitors and controls water quality, flow, and pressure in wastewater treatment plants and water supply systems.
• Manufacturing: Integrates with machine tools, production lines, and automated systems for efficient and reliable operation.
• Metallurgy: Used in steel mills and rolling mills for multi-frequency converter networking and process control.
• Building Automation: Manages HVAC, lighting, and security systems in large commercial buildings.
• Transportation Systems: Utilized in traffic signals, railway, and airport control systems for logic control and monitoring.
