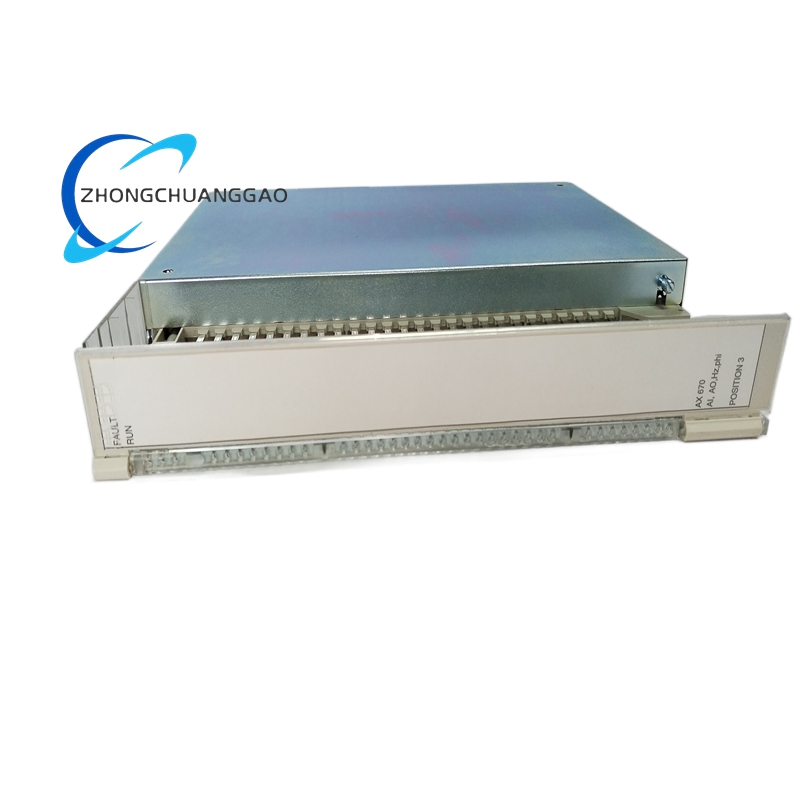

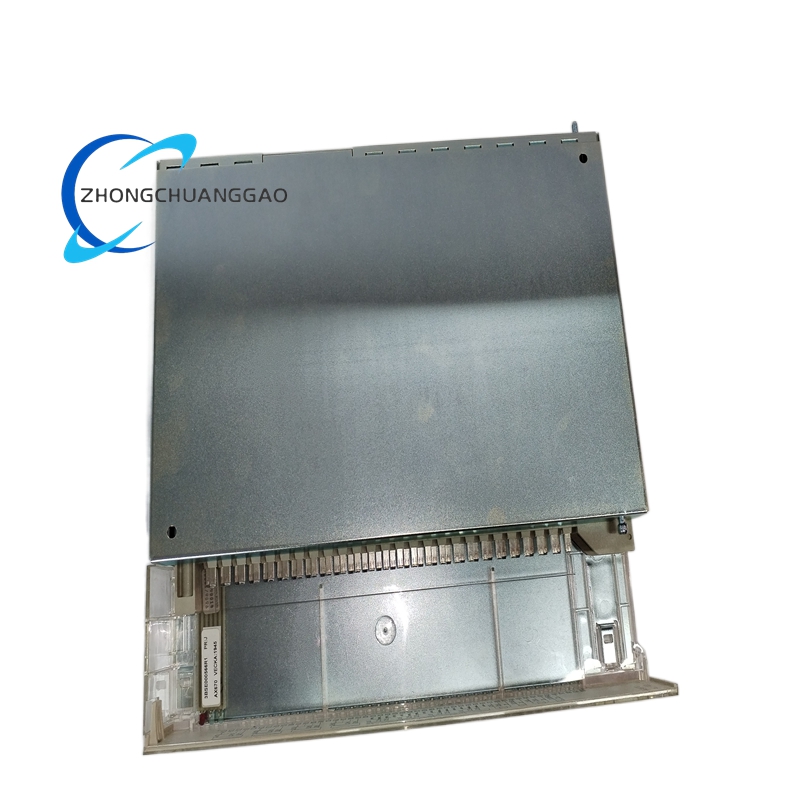

ABB AX670 3BSE000566R1 Programmable Control Module

• Processor: High-speed onboard logic processor for real-time performance
• Memory: Adequate program capacity for complex control algorithms
• Communication: Supports Ethernet, RS-232/422/485, and other industrial protocols
• Input/Output: Configurable analog and digital I/O channels
• Power Supply: 24V DC (typical), with low power consumption
• Dimensions: 132 mm x 105 mm x 52 mm
• Weight: Approximately 800 grams
• Operating Temperature: -10°C to 70°C (optional -40°C to +85°C)
• Storage Temperature: -40°C to 80°C
• Protection Class: IP30 (optional IP67 for harsh environments)
• Certifications: IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (MS), IEC61000-4-11 (Dips)

Functional Characteristics

• High Precision: Supports precise measurement and control of process variables with minimal error.
• Multiple Protocol Support: Compatible with various industrial protocols, including Modbus TCP, Profinet, and EtherCAT, enabling seamless integration with different devices and systems.
• Redundancy: Supports redundant communication links for enhanced system reliability and fault tolerance.
• Programmable Logic Control: Allows users to implement custom control algorithms and logic for specific application requirements.
• Data Acquisition: Real-time acquisition of data from sensors and other devices, supporting high-speed data processing and storage.
• Remote Monitoring and Control: Enables remote access and configuration via Ethernet, facilitating centralized management of distributed systems.
• Robust Design: Built to withstand harsh industrial environments with high resistance to electromagnetic interference, vibration, and temperature extremes.

Application Scenarios

• Power Generation: Used in power plants for monitoring and controlling boiler systems, turbines, and generators.
• Oil and Gas: Applied in upstream and downstream operations for process control, pipeline monitoring, and safety systems.
• Water Treatment: Monitors and controls water quality, flow, and pressure in wastewater treatment plants and water supply systems.
• Chemical Industry: Used in chemical processing plants for precise control of reaction parameters, such as temperature, pressure, and concentration.
• Pharmaceuticals: Supports cleanroom environments and compliance with regulatory standards for process control and monitoring.
• Mechanical Manufacturing: Controls hydraulic systems, air compressors, and gas pipelines in mechanical manufacturing processes.
• Building Automation: Integrates with HVAC, lighting, and security systems for intelligent building management.
