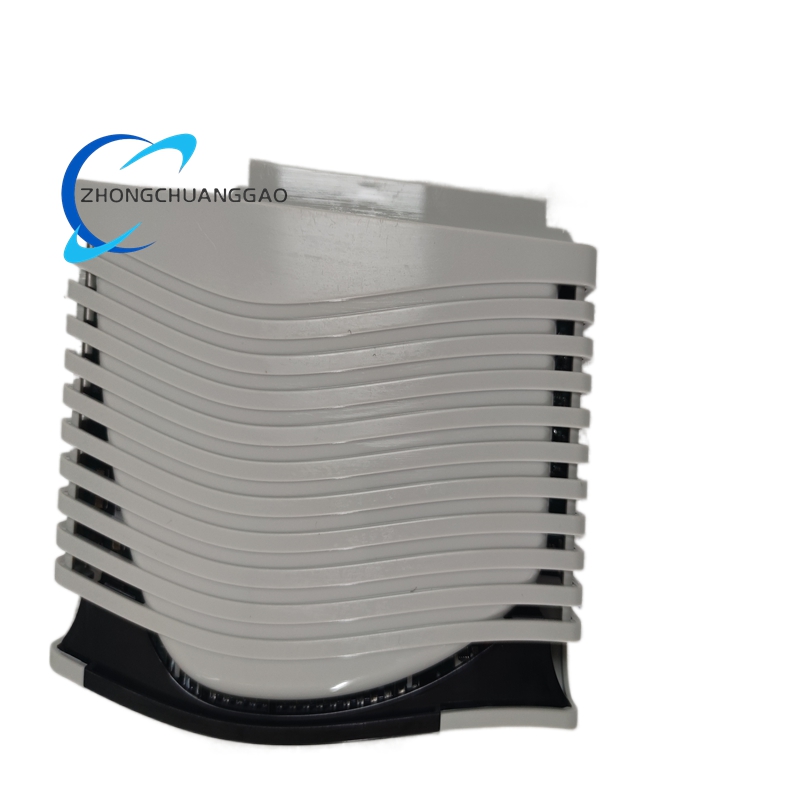

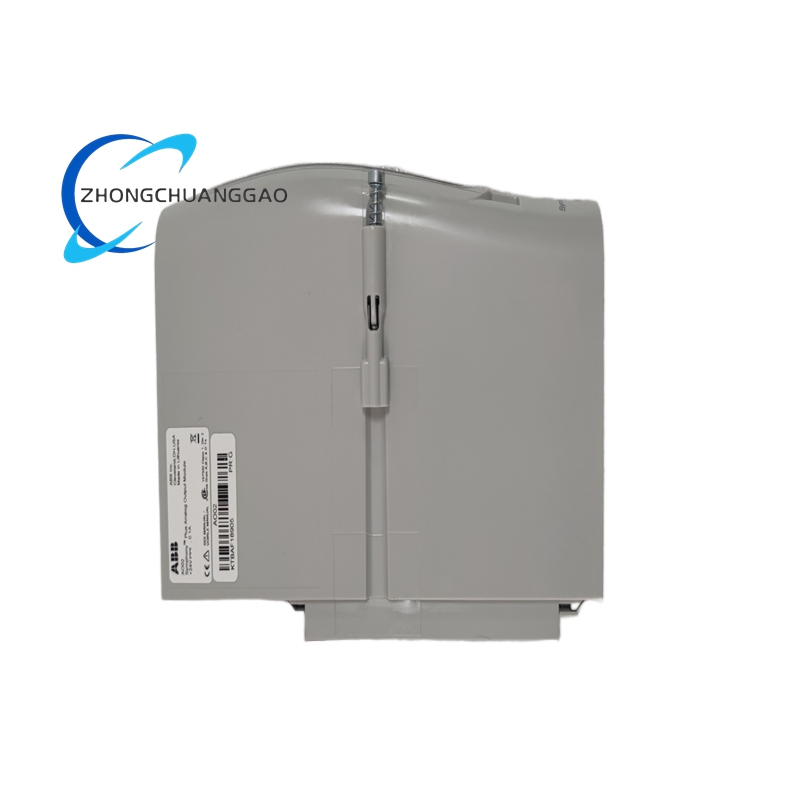

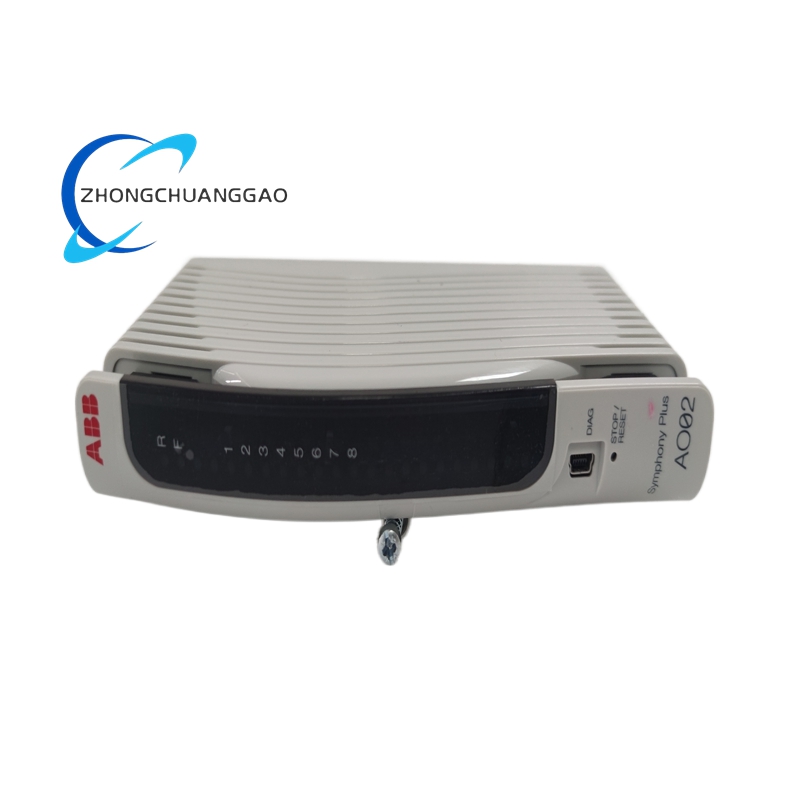

ABB AO02 Analog Output Module

• Output Range:
  • Current: 4–20 mA
  • Voltage: 1–+5 VDC
• Number of Channels: 16 independently configurable AO channels
• HART Support: Yes (HART v5.4 compatible)
• D/A Resolution: 12-bit
• Accuracy: ±0.01% of full-scale range (FSR), where FSR = 25 mA or 6.25 VDC
• Output Load:
  • Current mode: 0 to 750 Ω
  • Voltage mode: 22 kΩ to 1 MΩ
• Power Requirements: 24 VDC ±10%, typical 100 mA, maximum 125 mA
• Isolation:
  • Field signal to logic isolation: 1500 V for up to 1 minute
  • Channel isolation: 1×16 group isolation, 1500 V for up to 1 minute
• Maximum Field Cable Length: 600 meters (1968 feet)
• Secondary HART Variables: Up to 20 secondary variables in total, with a maximum of 4 variables per channel
• Secondary HART Variable Update Rate: 2.5 seconds typical, 8.0 seconds maximum
• Protection Mechanisms:
  • Short-circuit protection: Maximum 26 mA (current mode only)
  • Open-circuit detection: Less than 5 seconds in current mode

Functional Characteristics

• Efficient Digital Signal Processing: The AO02 module responds quickly to sensor data reading and actuator control demands, ensuring real-time performance and accuracy in industrial automation systems.
• Flexible Configuration and Programming: Users can adjust module parameters and functions based on specific application requirements, enabling adaptability to various industrial automation scenarios.
• Robust Protection Mechanisms: The module features safety functions such as short-circuit protection and open-circuit detection to ensure stable and reliable operation.
• HART Communication Support: Enables integration with HART-compatible devices, facilitating advanced diagnostics and configuration capabilities.

Application Scenarios
The ABB AO02 analog output module is widely used across various industrial sectors, including:

• Automotive Manufacturing: For automated assembly, welding, spraying, and handling processes.
• Electronics Industry: In semiconductor manufacturing and circuit board assembly for precise analog output control.
• Food and Beverage Production: For packaging, filling, and processing automation.
• Pharmaceutical Manufacturing: In drug production, packaging, and quality control processes.
• Logistics and Warehousing: For automated warehouse systems and logistics sorting lines.
• Chemical Industry: To monitor and control chemical reactions and regulate process parameters such as pressure, temperature, and flow.
• Energy Sector: In power plants and electrical substations for monitoring and controlling generators, transformers, and switchgear.
• Water Treatment: To monitor and adjust parameters like water pressure, quality, and flow rate, and control valves and pumps.
