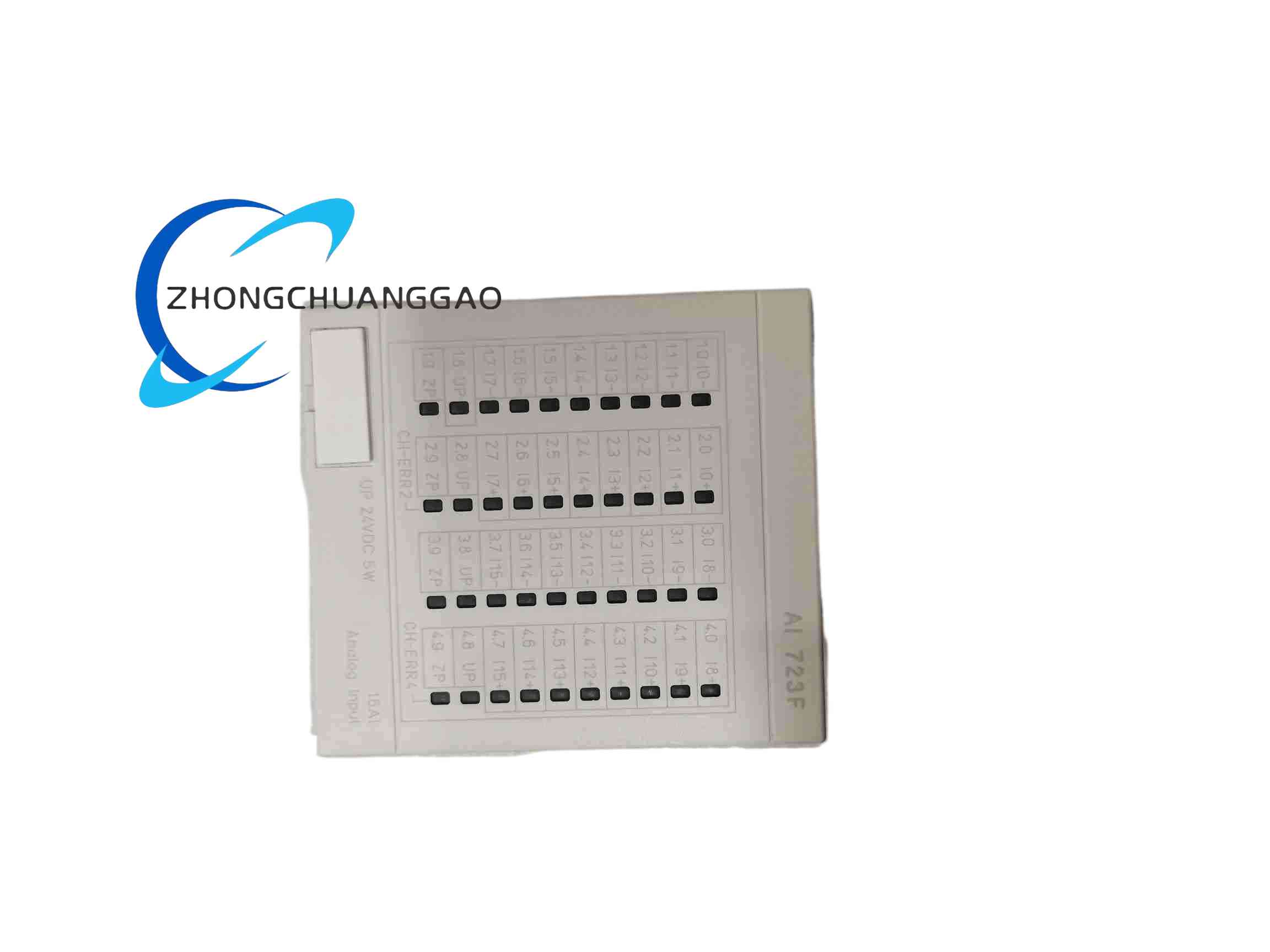

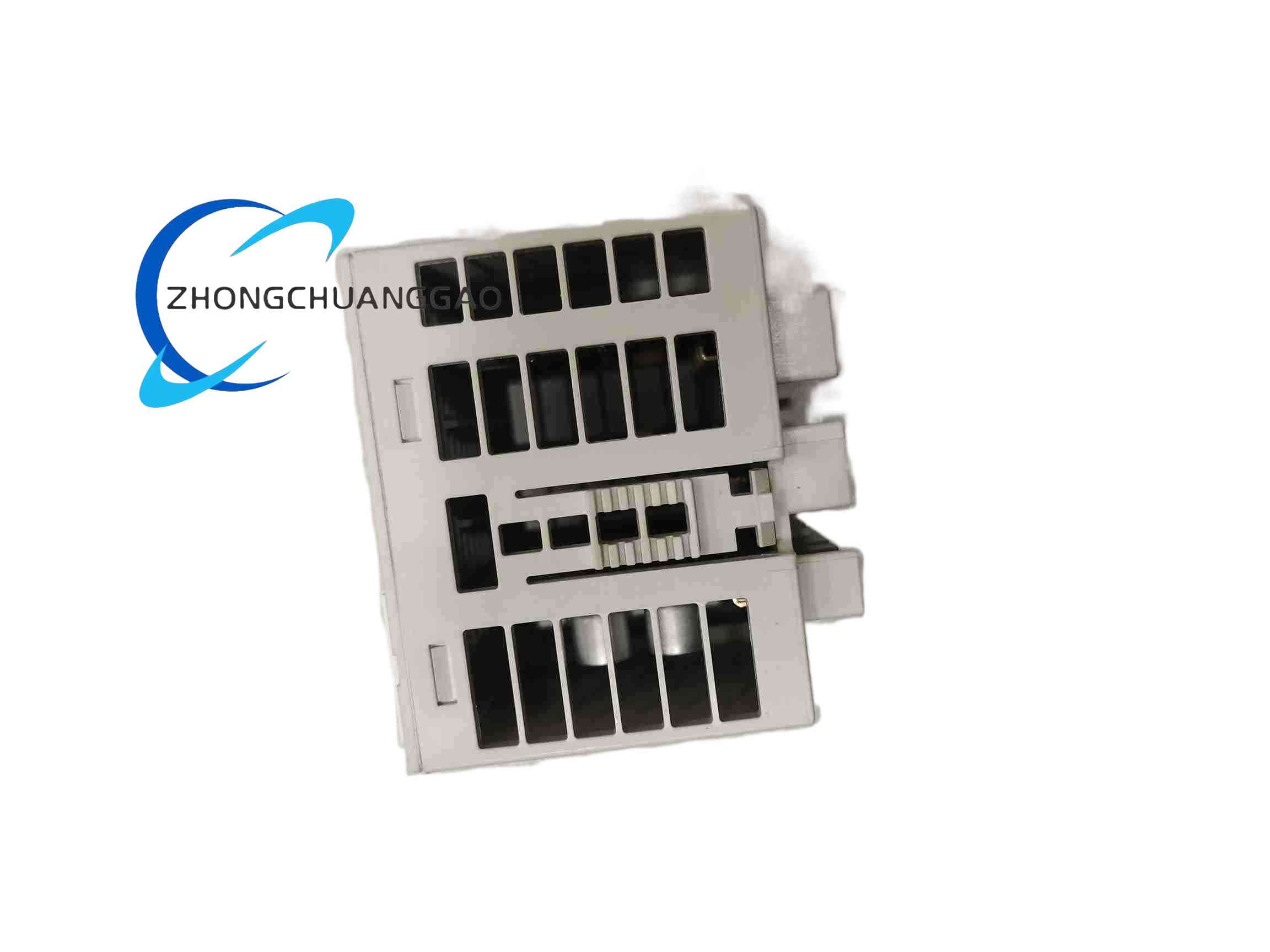

ABB AI723F

Technical Specifications

• Channel quantity: 16 analog input channels, divided into two groups
• Signal types: ±10 V, 0‑20 mA, 4‑20 mA, Pt100, Pt1000, Ni1000 thermal resistance; configurable as digital input
• Resolution: 12 bit plus sign bit
• Input impedance: voltage input >100 kΩ, current input approximately 330 Ω
• Isolation: module internal circuit electrically isolated from field side; no isolation between channels
• Power consumption: 6 W
• Power supply: 24 V DC
• Dimension(W×D×H): 67.5 mm × 76 mm × 54 mm
• Weight: 0.15 kg
• Operating temperature: 0 °C ~ +60 °C

Functional Features

Independent parameter configuration for every single channel; supports two‑wire and three‑wire thermal‑resistance connection; can serve as PROFIBUS‑DP remote I/O; compliant with UL Class I Division 2 hazardous‑area installation requirement; RoHS compliant; high measurement accuracy up to ±0.1% full scale.

Application Scenarios

Chemical plant process signal acquisition, building automation monitoring system, energy management measurement, industrial furnace temperature monitoring, Freelance DCS system remote I/O cabinet.

Performance Parameters

Stable signal acquisition; adapt to multi‑type field transmitter; high common‑mode interference rejection capability.

Material Composition

Industrial‑grade plastic module housing, analog‑to‑digital conversion circuit board, spring‑type field wiring terminal.

Structural Characteristics

Standard S700 series modular structure; install onto DIN‑rail base unit; front‑side spring‑clamp wiring terminals; rear‑side bus backplane connector.

Working Principle

Collects analog voltage, current signal or thermal‑resistance resistance value from field transmitters and sensors; converts analog signal into digital quantity through internal A/D converter; transmits digital measurement value to ABB Freelance controller via backplane bus.

Installation Requirements

Mount on standard 35 mm DIN‑rail inside control cabinet; implement anti‑static measures before module installation; thermal‑resistance wiring strictly follow two‑wire or three‑wire specification; separate analog signal cable and power cable.

Usage Notes

There is no electrical isolation between internal channels; cannot perform hot‑swap; configure channel signal type in DCS software before putting into service; do not exceed input voltage and current range of each channel.
