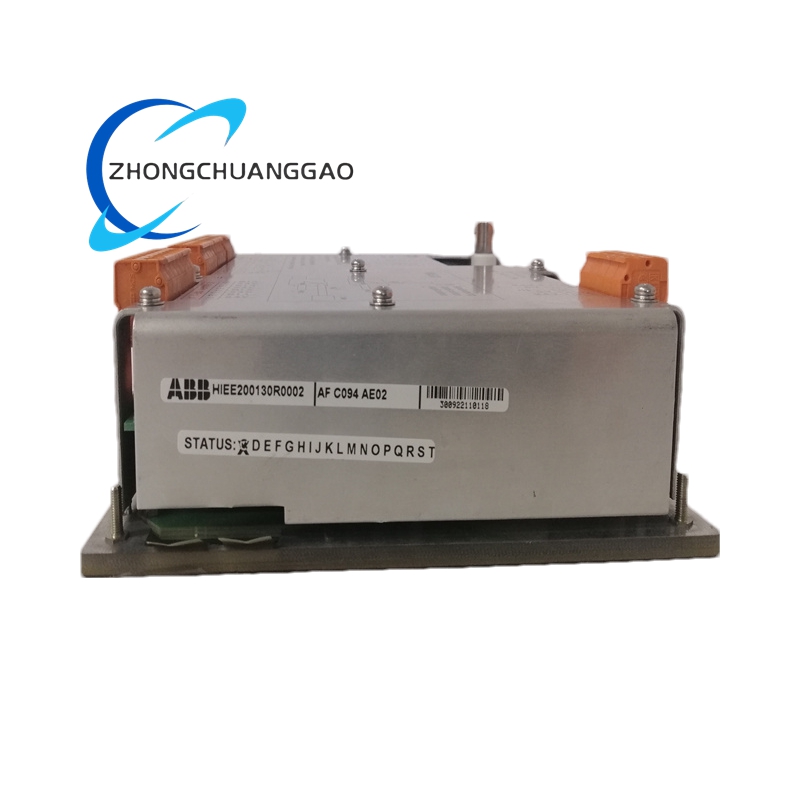

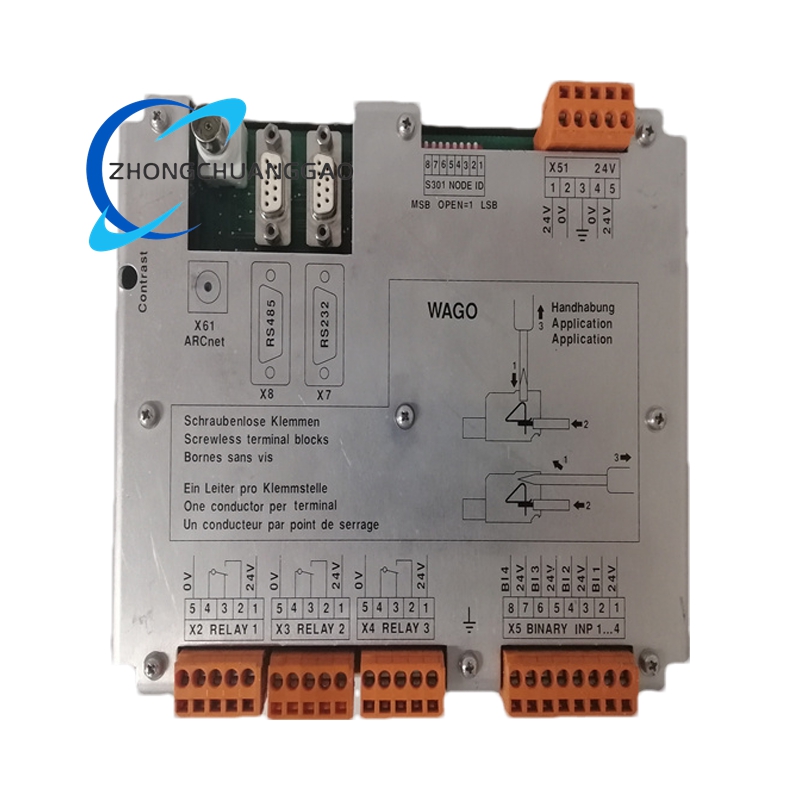

ABB AFC094AE02 HIEE200130R0002

• Communication Cycle Time:
  • Profibus-DP: Adjustable from 1 ms to 100 ms (depending on bus load and baud rate)
  • Modbus RTU: Adjustable from 10 ms to 500 ms (based on data frame size and baud rate)
  • Ethernet/IP: Fixed 10 ms minimum cycle time for real-time data transmission
• Isolation:
  • Port-level isolation: 500 V AC (rms) for 1 minute (Profibus-DP and Modbus RTU ports)
  • Module-to-backplane isolation: 1500 V AC (rms) for 1 minute (protects control system backplane from external electrical disturbances)
• Operating Temperature Range: -25°C to +60°C (suitable for harsh industrial environments)
  • Storage temperature range: -40°C to +85°C
• Power Supply:
  • Backplane power input: 5 V DC (compliant with ABB control system backplane power specifications)
  • Maximum power consumption: 3.0 W (under full-load communication operation)
• Mechanical Dimensions:
  • Width: ~32 mm (standard DIN rail-mount width for ABB modular control systems)
  • Height: ~120 mm
  • Depth: ~180 mm
• Certifications:
  • IEC 61131-3 (industrial control programming and communication standards)
  • IEC 61000-6-2 (electromagnetic compatibility (EMC) immunity for industrial environments)
  • IEC 61000-6-4 (EMC emissions to avoid interference with other equipment)
  • CE marking (compliance with European Union industrial equipment directives)
  • UL 1950 (safety standard for information technology equipment, North American compliance)

 Function Features

• Multi-Protocol Support: Integrates Profibus-DP, Modbus RTU, and Ethernet/IP—three widely used industrial protocols—eliminating the need for multiple single-protocol modules and simplifying system architecture.
• Bi-Directional Data Translation: Seamlessly converts data between ABB’s proprietary backplane protocol and external standard protocols, ensuring accurate and lossless transmission of control commands, status signals, and process data.
• High-Speed Real-Time Communication: Delivers minimum 1 ms cycle time for Profibus-DP and 10 ms for Ethernet/IP, meeting the low-latency requirements of time-critical industrial processes (e.g., fast-moving production lines, precision control loops).
• Flexible Master/Slave Configurations: Supports slave mode for Profibus-DP (integrating with external Profibus masters), and both master/slave modes for Modbus RTU (enabling control of Modbus slaves or response to Modbus masters)—adapting to diverse system topologies.
• Built-In Redundancy Options: Compatible with ABB’s control system redundancy features (e.g., AC 800M redundant controllers), supporting hot-swap replacement and automatic failover of communication links to ensure uninterrupted data flow.
• Comprehensive Diagnostics: Monitors key parameters including:
  • Port connection status (e.g., Ethernet link loss, Profibus bus fault)
  • Communication error rates (e.g., Modbus CRC errors, Profibus parity errors)
  • Internal module temperature and power supply stability

    Diagnostic data is transmitted to the central control system, enabling remote troubleshooting and predictive maintenance.

• Easy Configuration & Integration:
  • Configurable via ABB Control Builder software (e.g., Control Builder M for AC 800M), with intuitive wizards for protocol parameter setting (baud rate, data bits, parity, cycle time) and device mapping.
  • DIN rail-mountable design for quick installation into existing ABB control cabinets, with no additional hardware required for protocol activation.
• Robust EMI Resistance: Complies with IEC 61000-6-2/4 EMC standards, ensuring stable communication performance in environments with high electromagnetic interference (e.g., near large motors, variable frequency drives).

 Application Scenarios

• Process Industry:
  • Chemical & Petrochemical Plants: Connects ABB AC 800xA control systems to third-party devices such as flow meters (via Modbus RTU), motor control centers (via Profibus-DP), and plant-wide SCADA systems (via Ethernet/IP)—enabling unified monitoring of reactor operations and material transfer.
  • Oil & Gas Refineries: Integrates ABB process controllers with external pipeline monitoring systems (via Ethernet/IP) and pump control units (via Profibus-DP), facilitating real-time adjustment of oil flow rates and pressure levels.
  • Power Generation (Thermal/Hydro): Links ABB turbine control systems to auxiliary equipment (e.g., cooling water pumps via Modbus RTU) and grid management systems (via Ethernet/IP), supporting synchronized power output and grid stability.
• Manufacturing Industry:
  • Automotive Assembly Lines: Connects ABB robotic control systems (AC 800M) to conveyor belt controllers (via Profibus-DP) and quality inspection machines (via Ethernet/IP), ensuring coordinated movement of workpieces and real-time defect detection.
  • Electronics Manufacturing: Integrates ABB SMT (Surface Mount Technology) machine controllers with material handling systems (via Modbus RTU) and factory MES (Manufacturing Execution Systems) (via Ethernet/IP), optimizing production scheduling and inventory tracking.
  • Food & Beverage Processing: Links ABB packaging line controllers to temperature control units (via Modbus RTU) and plant SCADA (via Ethernet/IP), ensuring compliance with hygiene standards and consistent product quality.
• Infrastructure & Utilities:
  • Water & Wastewater Treatment: Connects ABB process controllers to sludge dewatering equipment (via Profibus-DP) and remote monitoring stations (via Ethernet/IP), enabling automated adjustment of treatment processes and remote alarm notification.
  • Building Automation (Large Complexes): Integrates ABB HVAC control systems with lighting systems (via Modbus RTU) and building management systems (via Ethernet/IP), enhancing energy efficiency and occupant comfort.
  • Mining Operations: Links ABB crusher control systems to conveyor belt monitoring devices (via Profibus-DP) and central mine management systems (via Ethernet/IP), ensuring continuous ore processing and safe equipment operation….
