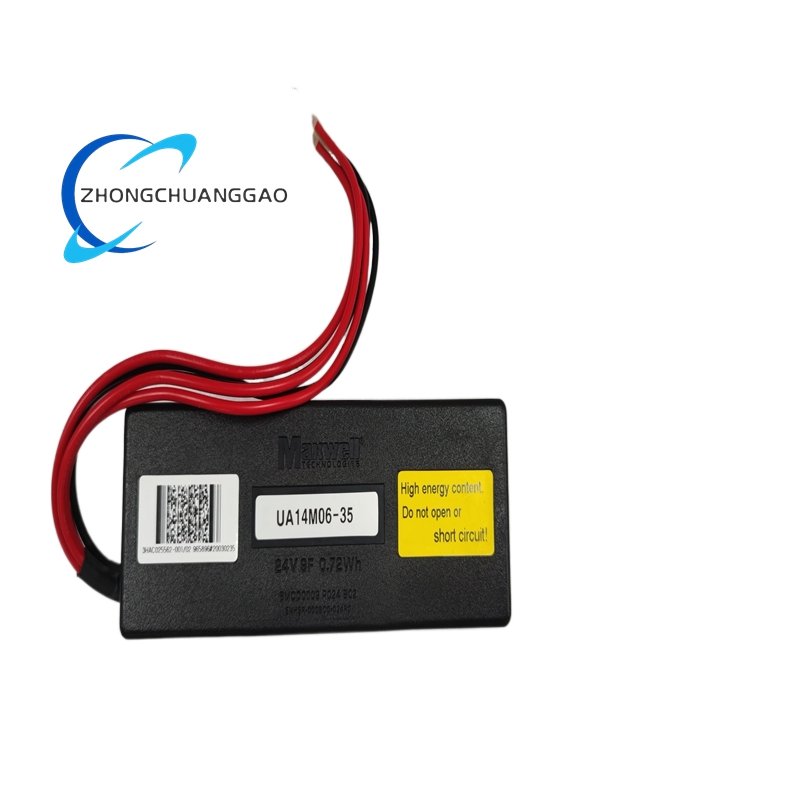

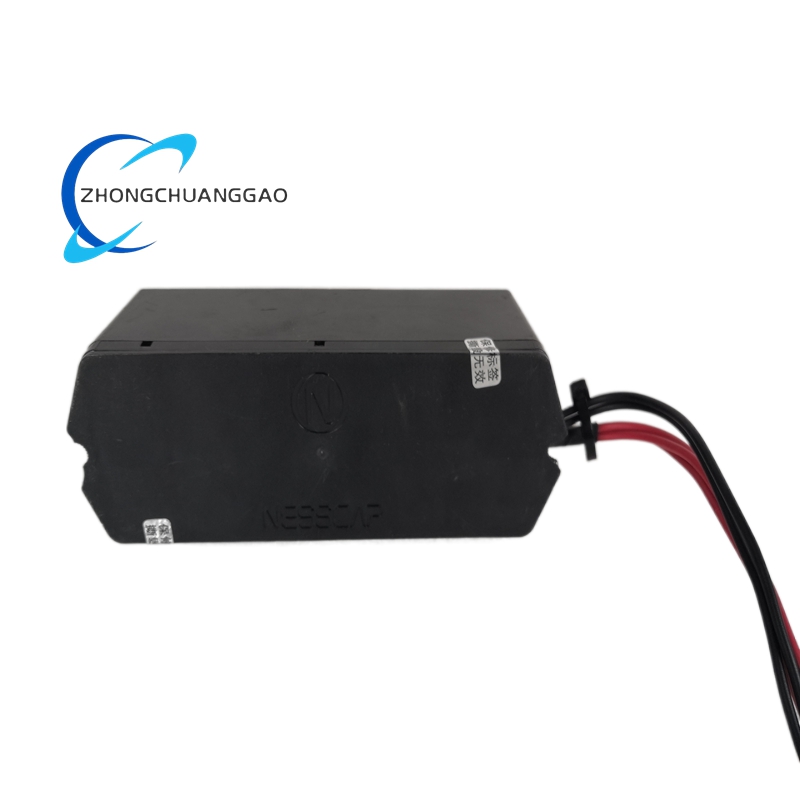

ABB 3HAC025562-001 DSQC655 Capacitor Unit

Technical Specifications

• Dimensions: Approximately 185 x 60 x 65 mm
• Weight: Around 0.42 kg
• Voltage Rating: Designed to operate within the voltage specifications of ABB robot control systems
• Capacitance: Engineered to provide optimal energy storage and release for robotic applications
• Construction: Built with high-quality materials to withstand the rigors of industrial environments
• Protection Features: Includes over-voltage, over-current, and short-circuit protection mechanisms

Functional Characteristics

• Energy Storage: The capacitor unit stores electrical energy during periods of low demand and releases it during peak power requirements, ensuring stable operation of the robot’s motors and control systems.
• Power Stabilization: Helps to stabilize power supply fluctuations, reducing the risk of voltage spikes or drops that could damage sensitive electronic components.
• Reliable Performance: Designed for long-term use with minimal maintenance requirements, contributing to the overall reliability and uptime of the robot.
• Compact Design: Its compact size allows for easy integration into the robot’s control cabinet without occupying excessive space.
• Compatibility: Specifically engineered to be compatible with ABB’s IRC5 control system and other relevant robot control architectures.

Application Scenarios

• Industrial Robotics: Used in various ABB robot models for tasks such as assembly, welding, material handling, and painting. The capacitor unit ensures that the robot can operate smoothly and reliably, even under varying loads and power conditions.
• Automation Systems: Integral to automation systems where precise and consistent power supply is crucial for maintaining production efficiency and product quality.
• Manufacturing Processes: Supports manufacturing processes that demand high precision and repeatability, such as in the automotive, electronics, and pharmaceutical industries.
• High-Load Applications: Particularly beneficial in applications where the robot experiences frequent changes in load or requires sudden bursts of power, as the capacitor unit helps to manage these power demands effectively.
